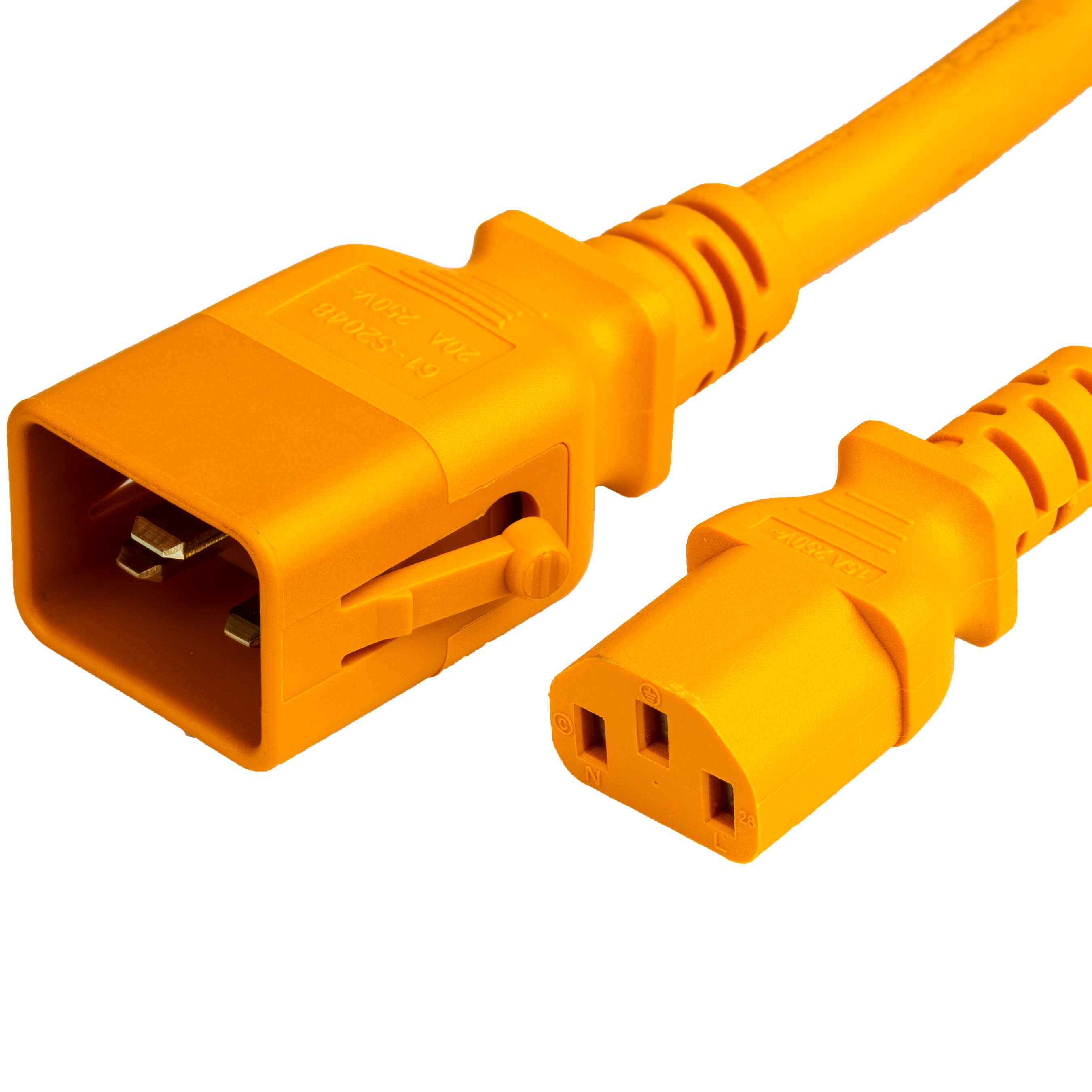

Orange 15A P-Lock C20 C13 Power Cords

Orange 15A P-Lock C20 C13 Power Cords

15 AMP 250V Locking C20 to C13 BLACK Power Cords according to IEC 60320. Cordage is 14awg-3c featuring a robust SJT jacket. UL, cUL Approved. P-Lock Power Cords can be used just like any other power cord, however, when mated with a matching Server Technology PDU, they securely lock into place reducing the chance of accidental power loss to equipment due to a loose connection. Standard jacket color is BLACK, however, RED and BLUE jackets can be used to identify Primary and Secondary power supplies. C20 C13 Power Cords are typically used in Data Centers to provide power from a PDU to a Server. Backward compatible, the P-Locks can be used with a non-locking outlets but locking will not be achieved.

For help finding a product or for product additional product information , call us at (860) 763-2100 or email sales@worldcordsets.com

Click below to view other colors


Part Number
Length
Current (Amps)
Voltage (Volts)
Connector (Female)
Plug (Male)
Availability
1+
10+
100+
  • 3 Feet
  • 15 Amps
  • 250 volts
  • IEC 60320 C13 Photo of IEC 60320 C13
  • IEC 60320 C20 Locking (P-Lock) Photo of IEC 60320 C20 Locking (P-Lock)
3 Feet
15 Amps
250 volts
IEC 60320 C13
IEC 60320 C20 Locking (P-Lock)

1+ :

10+ :

100+ :

  • 4 Feet
  • 15 Amps
  • 250 volts
  • IEC 60320 C13 Photo of IEC 60320 C13
  • IEC 60320 C20 Locking (P-Lock) Photo of IEC 60320 C20 Locking (P-Lock)
4 Feet
15 Amps
250 volts
IEC 60320 C13
IEC 60320 C20 Locking (P-Lock)

1+ :

10+ :

100+ :

  • 5 Feet
  • 15 Amps
  • 250 volts
  • IEC 60320 C13 Photo of IEC 60320 C13
  • IEC 60320 C20 Locking (P-Lock) Photo of IEC 60320 C20 Locking (P-Lock)
5 Feet
15 Amps
250 volts
IEC 60320 C13
IEC 60320 C20 Locking (P-Lock)

1+ :

10+ :

100+ :

  • 6 Feet
  • 15 Amps
  • 250 volts
  • IEC 60320 C13 Photo of IEC 60320 C13
  • IEC 60320 C20 Locking (P-Lock) Photo of IEC 60320 C20 Locking (P-Lock)
6 Feet
15 Amps
250 volts
IEC 60320 C13
IEC 60320 C20 Locking (P-Lock)

1+ :

10+ :

100+ :

  • 7 Feet
  • 15 Amps
  • 250 volts
  • IEC 60320 C13 Photo of IEC 60320 C13
  • IEC 60320 C20 Locking (P-Lock) Photo of IEC 60320 C20 Locking (P-Lock)
7 Feet
15 Amps
250 volts
IEC 60320 C13
IEC 60320 C20 Locking (P-Lock)

1+ :

10+ :

100+ :



Specifications of IEC 60320 P-Lock C20 to C13 Power Cords

Current (Amps)
Voltage (Volts)
Connector (Female)
Plug (Male)
Cordage
Approvals
,
Certifications
Country of Origin
Color
,

IEC 60320 C13 CONNECTOR (FEMALE)

IEC 60320 C13 CONNECTOR (FEMALE)

General Information:

The IEC 60320 C13 is a grounded 3 Wire connector rated up to 250V and 15 Amps. The C13 mates with a C14 inlet, and is commonly used in a jumper cable scenario in IT Installations providing power from a PDU to a server, router, switch or other computing device. Most people know the C13 as 'the thing that plugs into my computer' because it is the standard connector used to power most desktop computers. In a desktop computer application, the most common cable is the NEMA 5-15P to C13, which connects your standard North American wall outlet to a desktop computer. The iec 320 c13 c14 plug and connector are synonymous with Information Technology equipment primarily, but the C13 can be found powering equipment like medical devices and gaming consoles.

What does the IEC 60320 C13 Connect to?





IEC 60320 C14 Plug'

IEC 60320 C14 Inlet
The IEC 320 type C13 connector is designed to connect to the IEC 320 C14 plug and inlet. The C14 Plug is commonly found on power cords located in office, commercial or data center settings since the C13 inlet is usually only found in those environments. The C14 Inlet is commonly found on a variety of IT Equipment like monitors, switches, printers, power adapters, and more.

IEC 60320 C20 P-Lock

IEC 60320 C20 P-Lock
  • The C20 P-Lock is a high quality design, that virtually eliminates chances of nuisance unplugging by latching into the C19 Inlet that it plugs into. This can be an essential solution for design teams looking to eliminate these moments of stress when a plug powering IT Equipment becomes unplugged. To unlatch the locked plug, pinch the tabs located on each side. Discuss with your team locations in your data center or server room where there is high traffic, and good candidates for such locking features.

Powered by Froala Editor

14awg-3c North American Color Coded Conductors with SJT Outer Jacket

14awg-3c North American Color Coded Conductors with SJT Outer Jacket

14awg-3c conductors are UL rated to carry 15A @ 250V. North American Color Coding for 3 wire cable designates (1) Black Conductor (1) Green Conductor (1) Neutral Conductor.


Conductor Designations in 125V Circuits

  • Black Conductor - "Hot" or "Leg", the conductor that carries current to the equipment.

  • Green Conductor - Ground conductor
  • White Conductor - "Neutral", the conductor that carries current back to the source.


Conductor Designations in 250V Circuits

  • Black Conductor - "Hot" or "Leg", the conductor that carries current to the equipment.

  • Green Conductor - Ground conductor
  • White Conductor - "Hot" or "Leg", the conductor that carries current to the equipment.

White Label Shipping

White Label Shipping

Are you a reseller looking for Blind or White Label Drop Shipping? We offer both! During checkout simply select "Blind Shipping", then either upload your own packing slip, or, upload your logo and part numbers into ours. You will receive automated tracking emails as soon as your order has been packed so you can keep your customer up to date in realtime. Blind drop shipping has never been easier. Contact us today!

Manufactured Under ISO: 9001

Manufactured Under ISO: 9001

Our power cord sets are manufactured under an ISO 9001 quality management system to ensure that you get the same outstanding quality with on every order you place.
All of our NorthAmerican use Power Cord Sets are UL listed under E503529. This means that you can be sure that all of our power cord sets are of the highest quality and are certified for use in the United States.

UL Listed : E503526

UL Listed : E503526

World Cord Sets strives to deliver the best quality products for the lowest cost, to show our commitment to quality and our understanding of customers expectation for consistence of quality we obtained the UL certification. All of our North American use Power Cord Sets are UL listed under E503529. This means that you can be sure that all of our power cord sets are of the highest quality and are certified for use in the United States.

Lifetime Warranty

Lifetime Warranty

Why do we offer a lifetime warranty?

We offer a lifetime warranty because we know that it won't have to be used. Our products are manufactured using only the highest quality components, and, undergo rigorous quality assurance inspections and testing to ensure all of our products meet our exacting standards. Our lifetime warranty gives you peace of mind that your purchase is 100% guaranteed to work.


What does the warranty cover?

All cords, cables, patch panels, and adapters sold on this website in original unmodified condition are covered under this warranty. Warranty does not cover damage caused by misuse.


How does the warranty work?

To use the lifetime warranty, simply request an RMA and send your defective material back to us and we will either repair or replace the goods and return them back to you in working condition.
