United Kingdom BS1363 Plug Adapters

UK BS1363 Plug Adapters | British Plug Adapters

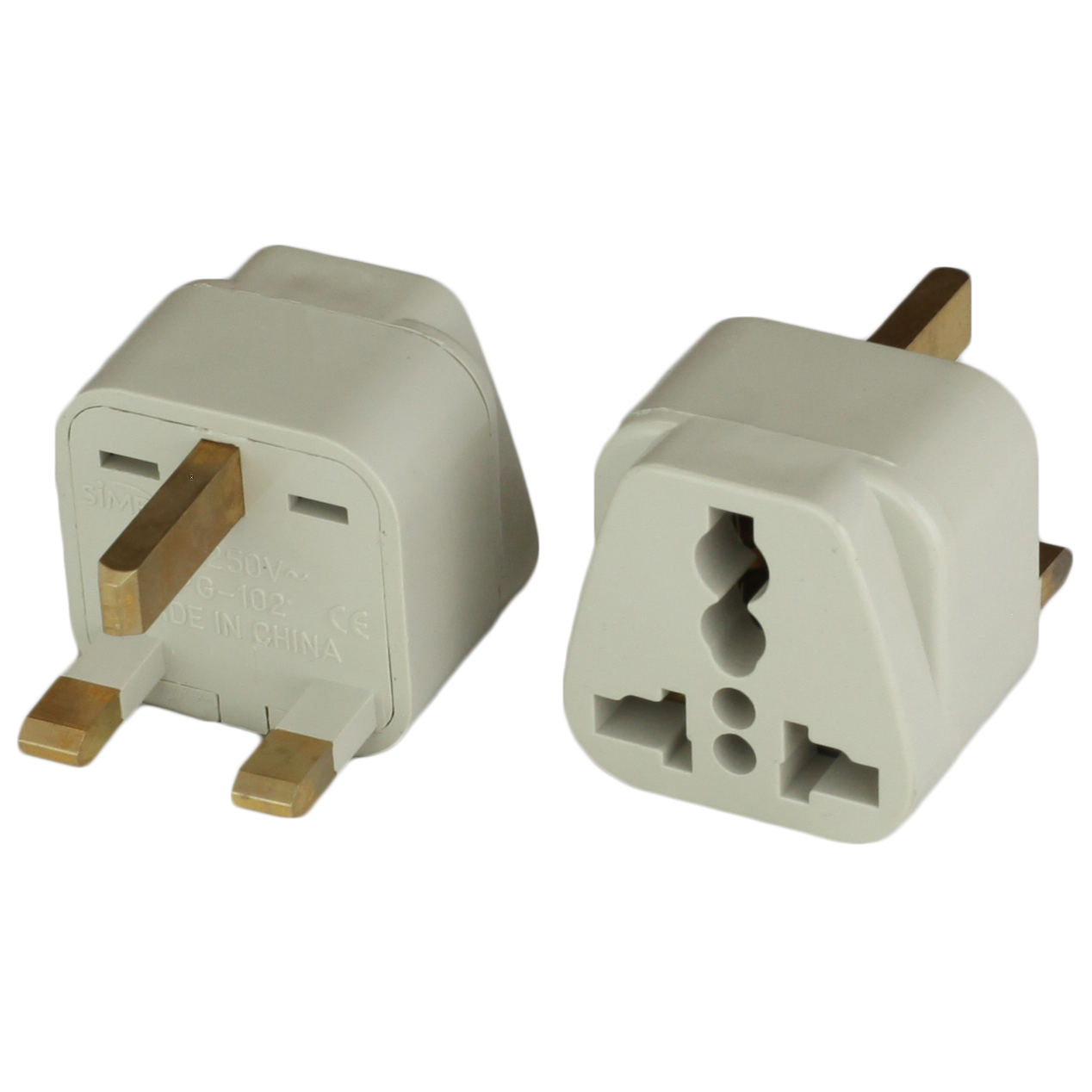

UK BS1363 Plug Adapters. The BS1363 is a standard British wall outlet rated at 13A 250VAC. These British plug adapters will plug into the BS1363 outlet and convert to a variety of outlets. Places for possible use of the BS1363 adapter: Anguilla, Bahrain, Botswana, Burma, Cyprus, Dominica, Falkland Islands (Malvinas), Gambia, Ghana, Gibraltar, Hong Kong, Iraq, Ireland, Kenya, Kuwait, Liberia, Malawi, Malaysia, Malta, Mauritius, Nigeria, Norhtern Ireland, Oman, Qatar, St. Kits-Nevis, St. Lucia, St. Vincent, Saudi Arabia, Seychelles, Sierra Leone, Singapore, Sudan, Tanzania, Uganda, United Arab Emirates, United Kingdom, Yemen, Zambia, Zimbabwe

For help finding a product or for product additional product information , call us at (860) 763-2100 or email sales@worldcordsets.com


Click to Enlarge
Part Number
Current (Amps)
Voltage (Volts)
Connector (Female)
Plug (Male)
Color
Availability
1+
10+
100+
  • 10 Amps
  • 250 volts
  • IEC 60320 C13
  • UK BS1363 Straight
  • Black
10 Amps
250 volts
IEC 60320 C13
UK BS1363 Straight
Black
  • 10 Amps
  • 250 volts
  • Universal
  • UK BS1363 Straight
  • Ivory
10 Amps
250 volts
Universal
UK BS1363 Straight
Ivory


UK BS1363 ANGLED

UK BS1363 DOWN ANGLED.jpg

The UK BS1363 ANGLED is a 3 pin Line/Load/Ground plug rated up to 250V and 13A. This plug is protected with a fuse inside of the face of the plug for overload protection.

Powered by Froala Editor

IEC 60320 C13 CONNECTOR (FEMALE)

  • The IEC 60320 C13 is a grounded 3 Wire connector rated up to 250V and 15 Amps. The C13 mates with a C14 inlet, and is commonly used in a jumper cable scenario in IT Installations providing power from a PDU to a server, router, switch or other computing device. Most people know the C13 as 'the thing that plugs into my computer' because it is the standard connector used to power most desktop computers. In a desktop computer application, the most common cable is the NEMA 5-15P to C13, which connects your standard North American wall outlet to a desktop computer.

Universal Connector

Universal Universal.png

The Universal Connector is a 2 pole, 3 wire grounded connector rated for up to 250V and 20A. Universal socket: Accepts
USA NEMA 1-15P, USA NEMA 5-15P, USA NEMA 5-20P, USA NEMA 6-15P, USA NEMA 6-20P, Argentina IRAM2073, Australia AS3112 10 and 15 Amp Versions, China GB2099 10 Amp (not 16amp version), Denmark AFSNIT, Europlug CEE7/16, France CEE7/4 (Ground is dropped), Germany CEE7/7 (Ground is dropped), Israel SI32, Italy CEI 23-50 10 Amp (not 16amp version), Japan JIS8303, Korea KSC8305 (Ground is dropped), Russia GOST7396 (Ground is dropped), South Africa SABS 164-1 6 Amp (not 16amp version), Switzerland SEV 1011 10 Amp (not 16amp version), Taiwan CNS6797, United Kingdom BS1363, Male IEC320 C14.
Note: Power Plug Adapters do not convert voltage, they just change the plug type. Use a proper voltage converter along with a power plug adapter if your device is incompatible with the country's voltage.

Documents & Drawings
