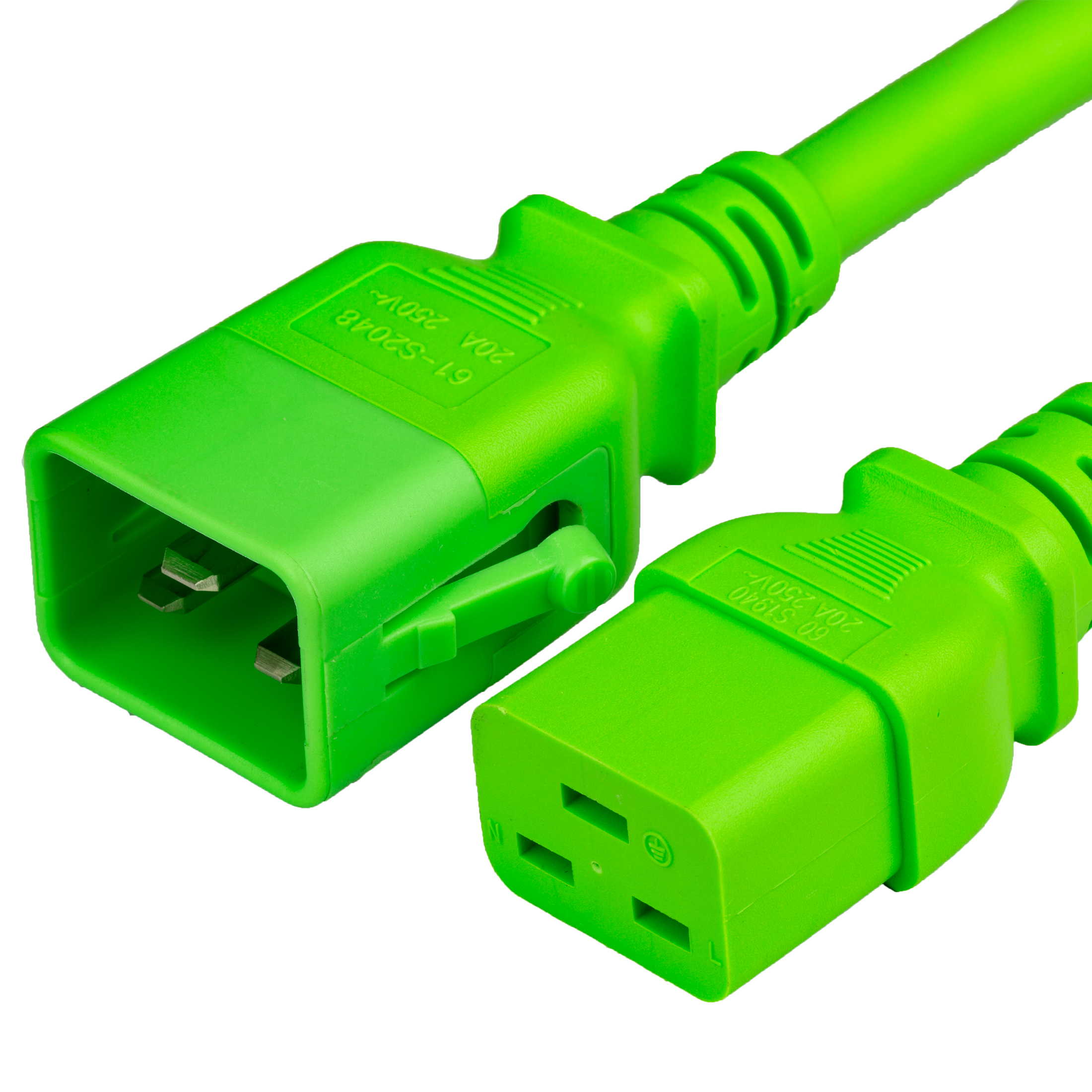

GREEN 20 AMP 250V Locking C20 to C19 Power Cords according to IEC 60320. Cordage is 12awg-3c featuring a robust SJT jacket. cUL Approved. P-Lock Power Cords can be used just like any other power cord, however, when mated with a matching Server Technology PDU, they securely lock into place reducing the chance of accidental power loss to equipment due to a loose connection. Standard jacket color is BLACK. BLUe, RED, WHITE, and GREEN jackets are available as well and are often used to color code PRIMARY and SECONDARY power supplies.
For help finding a product or for product additional product information , call us at (860) 763-2100 or
Specifications of IEC 60320 P-Lock C20 to C19 Power Cords
Country of Origin
IEC 60320 C19 CONNECTOR (FEMALE)
The IEC 60320 C19 is a grounded 3 Wire connector rated up to 250V and 20 Amps. The C19 can be found on a variety of power cords, including NEMA to 320 Adapter cords, and International Plug types to IEC 320 connectors, but the most common application is the IEC 320 C20 to C19 power cord which is a a standard extension cord used to power high powered IT Equipment. The C19 is typically used in high powered blade server chassis, large network routers, and other IT equipment that draws more power than a standard C13 can accommodate.
What does the IEC 60320 C19 Connect to?
The IEC 60320 type C19 connector is designed to connect to the IEC 320 C20 plug and Inlet. THE C20 Plug is commonly found on power cords used in the data center industry. The C20 Inlet can be found on a variety of high powered IT Equipment ranging from switches to Un-Interrupted Power Supply systems.
IEC 60320 C20 P-Lock
The C20 P-Lock is a high quality design, that virtually eliminates chances of nuisance unplugging by latching into the C19 Inlet that it plugs into. This can be an essential solution for design teams looking to eliminate these moments of stress when a plug powering IT Equipment becomes unplugged. To unlatch the locked plug, pinch the tabs located on each side. Discuss with your team locations in your data center or server room where there is high traffic, and good candidates for such locking features.
12awg-3c cable is UL Rated to deliver 20A at up to 300V. However, the actual voltage is dependent on the types of male and female connectors used with the cable. For cord sets with IEC 60320 connectors on both ends, the cable is rated for 20A @ 125V and 20A @ 250V. Because these connectors are rated for use at either voltage, it is very important that you double check the voltages match between the PDU and the Equipment, otherwise, you may damage the equipment.
White Label Shipping
Are you a reseller looking for Blind or White Label Drop Shipping? We offer both! During checkout simply select "Blind Shipping", then either upload your own packing slip, or, upload your logo and part numbers into ours. You will receive automated tracking emails as soon as your order has been packed so you can keep your customer up to date in realtime. Blind drop shipping has never been easier. Contact us today!
Manufactured Under ISO: 9001
Our power cord sets are manufactured under an ISO 9001 quality management system to ensure that you get the same outstanding quality with on every order you place. All of our NorthAmerican use Power Cord Sets are UL listed under E503529. This means that you can be sure that all of our power cord sets are of the highest quality and are certified for use in the United States.
UL Listed : E503526
World Cord Sets strives to deliver the best quality products for the lowest cost, to show our commitment to quality and our understanding of customers expectation for consistence of quality we obtained the UL certification. All of our North American use Power Cord Sets are UL listed under E503529. This means that you can be sure that all of our power cord sets are of the highest quality and are certified for use in the United States.
Why do we offer a lifetime warranty?
We offer a lifetime warranty because we know that it won't have to be used. Our products are manufactured using only the highest quality components, and, undergo rigorous quality assurance inspections and testing to ensure all of our products meet our exacting standards. Our lifetime warranty gives you peace of mind that your purchase is 100% guaranteed to work.
What does the warranty cover?
All cords, cables, patch panels, and adapters sold on this website in original unmodified condition are covered under this warranty. Warranty does not cover damage caused by misuse.
How does the warranty work?
To use the lifetime warranty, simply request an RMA and send your defective material back to us and we will either repair or replace the goods and return them back to you in working condition.
