Black 15A P-Lock C20 C15 Power Cords

Black 15A P-Lock C20 C15 Power Cords

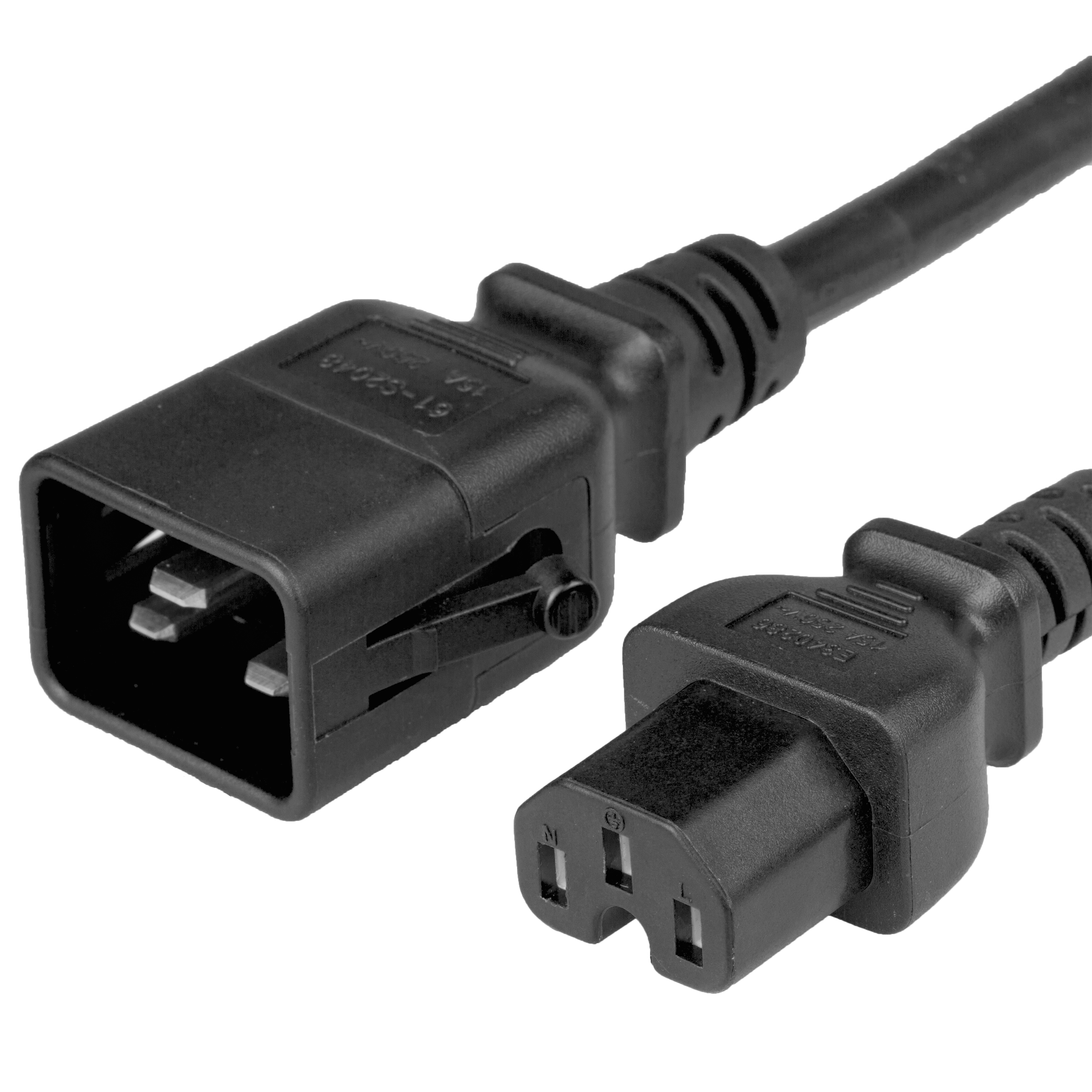

BLACK 15A 250V C15 C20 P-LOCK Power Cords. IEC 60320 Standard. Computer, PDU, Data Center applications. The C20 PLOCK Plug is typically mates with C19 inlets on Server Technolgy or Raritan PDUs (Power Distribution Units). The C15 is a HIGH TEMPERATURE connector, maximum pin temperature of the appliance inlet is 120C. Commonly used with high draw/current equipment likely to reach higher temperatures.

For help finding a product or for product additional product information , call us at (860) 763-2100 or email sales@worldcordsets.com

Click below to view other colors


Part Number
Length
Current (Amps)
Voltage (Volts)
Connector (Female)
Plug (Male)
Availability
1+
100+
250+
  • 3 Feet
  • 15 Amps
  • 250 volts
  • IEC 60320 C15 Photo of IEC 60320 C15
  • IEC 60320 C20 Locking (P-Lock) Photo of IEC 60320 C20 Locking (P-Lock)
3 Feet
15 Amps
250 volts
IEC 60320 C15
IEC 60320 C20 Locking (P-Lock)
Contact Us

1+ :

100+ :

250+ :

Contact Us
  • 6 Feet
  • 15 Amps
  • 250 volts
  • IEC 60320 C15 Photo of IEC 60320 C15
  • IEC 60320 C20 Locking (P-Lock) Photo of IEC 60320 C20 Locking (P-Lock)
6 Feet
15 Amps
250 volts
IEC 60320 C15
IEC 60320 C20 Locking (P-Lock)
Contact Us

1+ :

100+ :

250+ :

Contact Us


Specifications of IEC 60320 P-Lock C20 to C15 Power Cords

Current (Amps)
Voltage (Volts)
Connector (Female)
Plug (Male)
Cordage
Approvals
Certifications
Country of Origin
Color

IEC 60320 C15 CONNECTOR (FEMALE)

IEC 60320 C15 CONNECTOR (FEMALE)

General Information:

The IEC 60320 C15 is a grounded 3 Wire connector rated up to 250V & 10 Amps Internationally and 125V/250V & 15 Amps in North America. The C15 mates with a C16 inlet and can also be down graded to a C14 Inlet. C14 Inlet and is commonly used in IT Installations providing power from a PDU to a server, router, switch or other computing device. The C15 is a HIGH TEMPERATURE connector rated up to 120°C, unlike the 70°C rating of the C13. The C15 is commonly used in in electric kettles and other household appliances that involve higher temperatures than a normal C13 is made to withstand. There is a dimple located below the ground pin to ensure that the standard C13 connector cannot be plugged into the C16 Inlet which is used on high temperature applications. This design is utilized to allow this C15 connector to be used on both high temperature applications and standard applications, as to not limit the user. The C15 connector is commonly used with 18awg SJT(OW), 16awg SJT(OW), and 14awg SJT(OW).

What does the IEC 60320 C15 Connect to?





IEC 60320 C14 Inlet
IEC 60320 C16 High Temperature InletThe IEC 60320 type C15 connector is designed to plug into the high temperature rated IEC 320 C16 Inlet. This inlet is commonly found on high performance IT Equipment that reaches heats that exceed the rating of the standard IEC C13 connector. This inlet is designed to reach temperatures up to 120*C. The C15 can also be plugged into a standard non-high temp application C14 Inlet, which is located on a wide variety of IT Equipment like computer monitors and switches.


IEC 60320 C20 P-Lock

IEC 60320 C20 P-Lock
  • The C20 P-Lock is a high quality design, that virtually eliminates chances of nuisance unplugging by latching into the C19 Inlet that it plugs into. This can be an essential solution for design teams looking to eliminate these moments of stress when a plug powering IT Equipment becomes unplugged. To unlatch the locked plug, pinch the tabs located on each side. Discuss with your team locations in your data center or server room where there is high traffic, and good candidates for such locking features.

Powered by Froala Editor

14awg-3c North American Color Coded Conductors with SJT Outer Jacket

14awg-3c North American Color Coded Conductors with SJT Outer Jacket

14awg-3c conductors are UL rated to carry 15A @ 250V. North American Color Coding for 3 wire cable designates (1) Black Conductor (1) Green Conductor (1) Neutral Conductor.


Conductor Designations in 125V Circuits

  • Black Conductor - "Hot" or "Leg", the conductor that carries current to the equipment.

  • Green Conductor - Ground conductor
  • White Conductor - "Neutral", the conductor that carries current back to the source.


Conductor Designations in 250V Circuits

  • Black Conductor - "Hot" or "Leg", the conductor that carries current to the equipment.

  • Green Conductor - Ground conductor
  • White Conductor - "Hot" or "Leg", the conductor that carries current to the equipment.

White Label Shipping

White Label Shipping

Are you a reseller looking for Blind or White Label Drop Shipping? We offer both! During checkout simply select "Blind Shipping", then either upload your own packing slip, or, upload your logo and part numbers into ours. You will receive automated tracking emails as soon as your order has been packed so you can keep your customer up to date in realtime. Blind drop shipping has never been easier. Contact us today!

Manufactured Under ISO: 9001

Manufactured Under ISO: 9001

Our power cord sets are manufactured under an ISO 9001 quality management system to ensure that you get the same outstanding quality with on every order you place.
All of our NorthAmerican use Power Cord Sets are UL listed under E503529. This means that you can be sure that all of our power cord sets are of the highest quality and are certified for use in the United States.

UL Listed : E503526

UL Listed : E503526

World Cord Sets strives to deliver the best quality products for the lowest cost, to show our commitment to quality and our understanding of customers expectation for consistence of quality we obtained the UL certification. All of our North American use Power Cord Sets are UL listed under E503529. This means that you can be sure that all of our power cord sets are of the highest quality and are certified for use in the United States.

Lifetime Warranty

Lifetime Warranty

Why do we offer a lifetime warranty?

We offer a lifetime warranty because we know that it won't have to be used. Our products are manufactured using only the highest quality components, and, undergo rigorous quality assurance inspections and testing to ensure all of our products meet our exacting standards. Our lifetime warranty gives you peace of mind that your purchase is 100% guaranteed to work.


What does the warranty cover?

All cords, cables, patch panels, and adapters sold on this website in original unmodified condition are covered under this warranty. Warranty does not cover damage caused by misuse.


How does the warranty work?

To use the lifetime warranty, simply request an RMA and send your defective material back to us and we will either repair or replace the goods and return them back to you in working condition.
