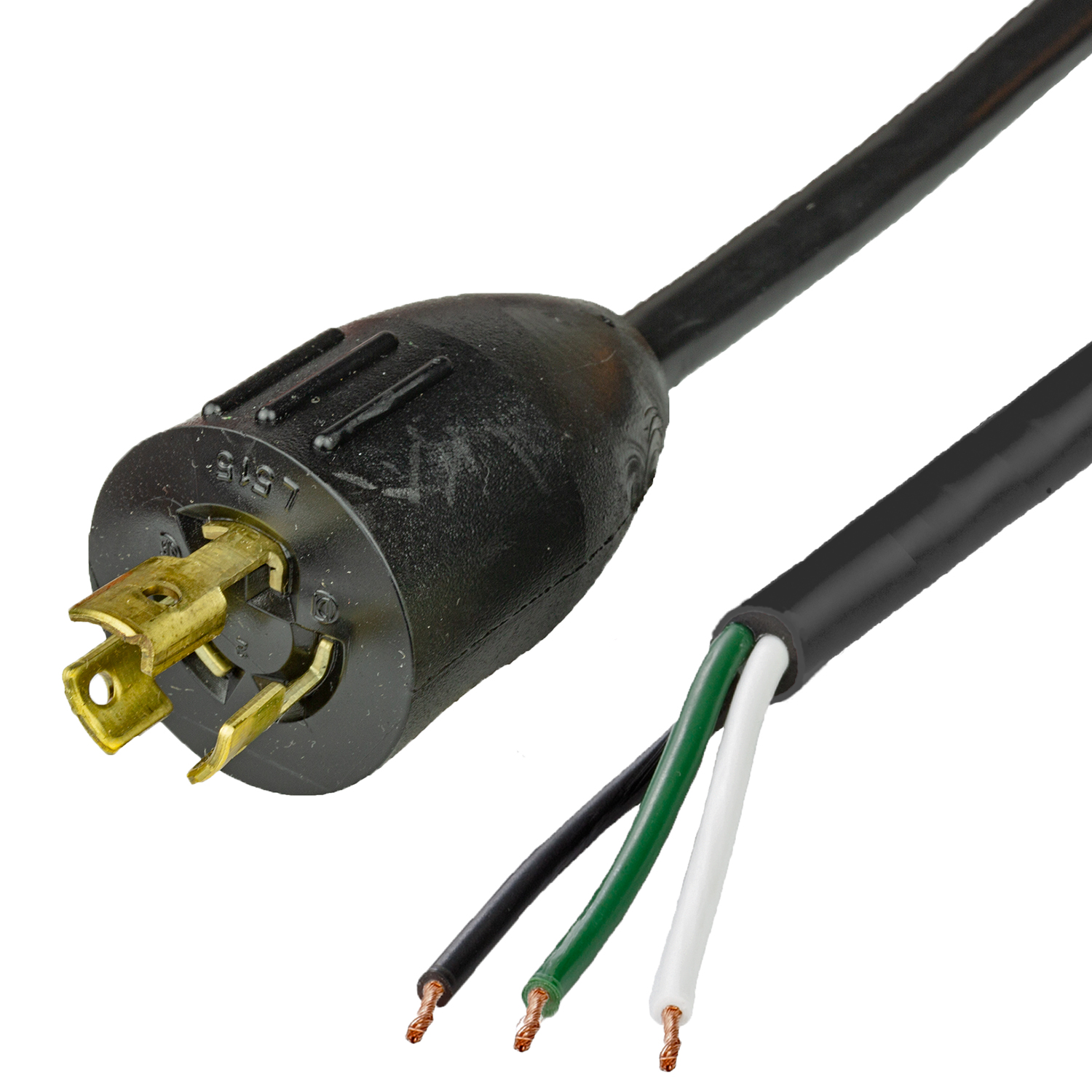

NEMA L5-15P to OPEN 14awg NACC (WHIPS PIGTAILS)

NEMA L5-15P to OPEN 14awg NACC (WHIPS PIGTAILS)

NEMA L5-15P to OPEN (WHIPS PIGTAILS)

For help finding a product or for product additional product information , call us at (860) 763-2100 or email sales@worldcordsets.com


Part Number
Length
Current (Amps)
Voltage (Volts)
Connector (Female)
Plug (Male)
Availability
1+
10+
100+
  • 1 Foot
  • 15 Amps
  • 125 volts
  • Open Ended (Whips, Pigtails) Photo of Open Ended (Whips, Pigtails)
  • NEMA L5-15P Photo of NEMA L5-15P
1 Foot
15 Amps
125 volts
Open Ended (Whips, Pigtails)
NEMA L5-15P

1+ :

10+ :

100+ :

  • 2 Feet
  • 15 Amps
  • 125 volts
  • Open Ended (Whips, Pigtails) Photo of Open Ended (Whips, Pigtails)
  • NEMA L5-15P Photo of NEMA L5-15P
2 Feet
15 Amps
125 volts
Open Ended (Whips, Pigtails)
NEMA L5-15P

1+ :

10+ :

100+ :

  • 5 Feet
  • 15 Amps
  • 125 volts
  • Open Ended (Whips, Pigtails) Photo of Open Ended (Whips, Pigtails)
  • NEMA L5-15P Photo of NEMA L5-15P
5 Feet
15 Amps
125 volts
Open Ended (Whips, Pigtails)
NEMA L5-15P

1+ :

10+ :

100+ :

  • 6 Feet
  • 15 Amps
  • 125 volts
  • Open Ended (Whips, Pigtails) Photo of Open Ended (Whips, Pigtails)
  • NEMA L5-15P Photo of NEMA L5-15P
6 Feet
15 Amps
125 volts
Open Ended (Whips, Pigtails)
NEMA L5-15P

1+ :

10+ :

100+ :

  • 7 Feet
  • 15 Amps
  • 125 volts
  • Open Ended (Whips, Pigtails) Photo of Open Ended (Whips, Pigtails)
  • NEMA L5-15P Photo of NEMA L5-15P
7 Feet
15 Amps
125 volts
Open Ended (Whips, Pigtails)
NEMA L5-15P

1+ :

10+ :

100+ :

  • 8 Feet
  • 15 Amps
  • 125 volts
  • Open Ended (Whips, Pigtails) Photo of Open Ended (Whips, Pigtails)
  • NEMA L5-15P Photo of NEMA L5-15P
8 Feet
15 Amps
125 volts
Open Ended (Whips, Pigtails)
NEMA L5-15P

1+ :

10+ :

100+ :

  • 9 Feet
  • 15 Amps
  • 125 volts
  • Open Ended (Whips, Pigtails) Photo of Open Ended (Whips, Pigtails)
  • NEMA L5-15P Photo of NEMA L5-15P
9 Feet
15 Amps
125 volts
Open Ended (Whips, Pigtails)
NEMA L5-15P

1+ :

10+ :

100+ :

  • 10 Feet
  • 15 Amps
  • 125 volts
  • Open Ended (Whips, Pigtails) Photo of Open Ended (Whips, Pigtails)
  • NEMA L5-15P Photo of NEMA L5-15P
10 Feet
15 Amps
125 volts
Open Ended (Whips, Pigtails)
NEMA L5-15P

1+ :

10+ :

100+ :

  • 11 Feet
  • 15 Amps
  • 125 volts
  • Open Ended (Whips, Pigtails) Photo of Open Ended (Whips, Pigtails)
  • NEMA L5-15P Photo of NEMA L5-15P
11 Feet
15 Amps
125 volts
Open Ended (Whips, Pigtails)
NEMA L5-15P

1+ :

10+ :

100+ :

  • 12 Feet
  • 15 Amps
  • 125 volts
  • Open Ended (Whips, Pigtails) Photo of Open Ended (Whips, Pigtails)
  • NEMA L5-15P Photo of NEMA L5-15P
12 Feet
15 Amps
125 volts
Open Ended (Whips, Pigtails)
NEMA L5-15P

1+ :

10+ :

100+ :

  • 14 Feet
  • 15 Amps
  • 125 volts
  • Open Ended (Whips, Pigtails) Photo of Open Ended (Whips, Pigtails)
  • NEMA L5-15P Photo of NEMA L5-15P
14 Feet
15 Amps
125 volts
Open Ended (Whips, Pigtails)
NEMA L5-15P

1+ :

10+ :

100+ :



Specifications of NEMA L5-15P to OPEN 15A 125V (WHIPS PIGTAILS)

Current (Amps)
Voltage (Volts)
Connector (Female)
Plug (Male)
Cordage
Approvals
Certifications
Country of Origin
Color

Open Ended (Whips, Pigtails, ROJ Strip)

Open Ended (Whips, Pigtails, ROJ Strip)

General Information:

The open end of a power supply cord is hard wired to another device, providing power either to our from that device. Unless otherwise noted, our power supply cords come standard with a 2" ROJ (Remove Outer Jacket) and a 1/4" Strip. The ROJ length determines the length of the individual conductors, and the Strip length determines the amount of copper exposed on the end of each conductor. If you require a custom ROJ or Strip length, please don't hesitate to reach out to us.




Open Ended North American Color Code
NACC

Open Ended International Color Code
ICC


International Color Code(ICC) vs. North American Color Code(NACC)


For the majority of our customers, the color code used for the cordage is negligible. However, for OEM customers, or customers dealing with government installations or projects that have highly specified cords the color code used will be important to establish. Our standard color code for our Cut/ Remove of Outer Jacket/ Strip Conductor Job is North American Color Code (NACC).



Ground ColorNeutral ColorLine/ Hot Color

International Color Code (ICC)
Green & Yellow
Blue
Brown


North American Color Code (NACC)GreenWhite
Black


NEMA L5-15P

NEMA L5-15P


General Information:

The NEMA L5-15P is a 3 Wire grounded plug with a hot, neutral and ground pin rated up to 125V and 15A. The plug can be locked into place on the matching receptacle which prevents nuisance disconnection. This feature makes this plug popular in commercial and industrial settings where high traffic or moving of equipment is common. This plug can be distinguished against other NEMA Locking plugs by its small blade circumference on the plug head and inward turned tabs on the neutral blade.

What does the NEMA L5-15P Plug into?





NEMA L5-15R Connector
NEMA L5-15R OutletThe NEMA L5-15P connects to both the NEMA L5-15R Connector which is commonly found on extension cords and power drops, and the outlet which is commonly found in industrial and commercial settings where a locking feature is required to prevent nuisance unplugging of the device.
