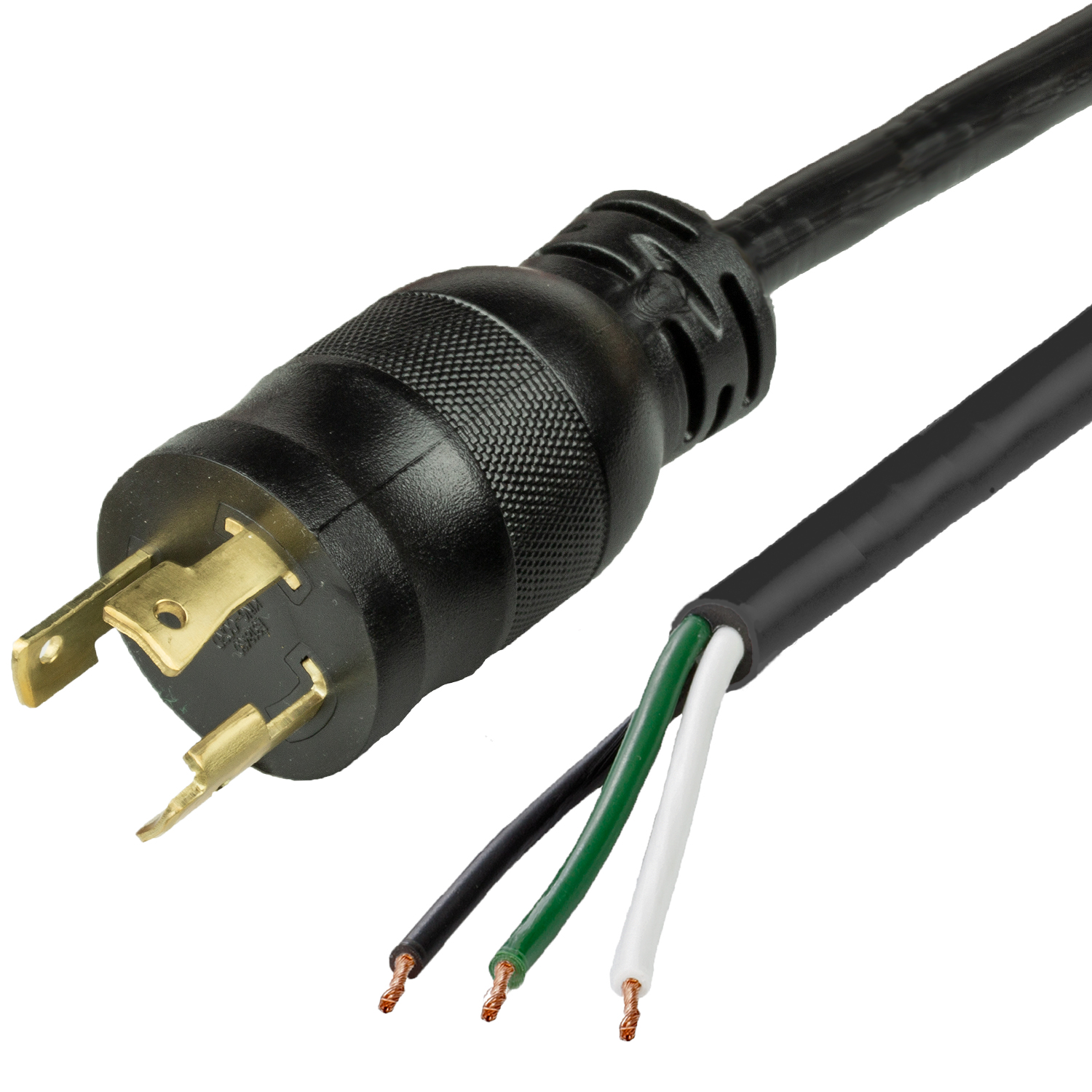

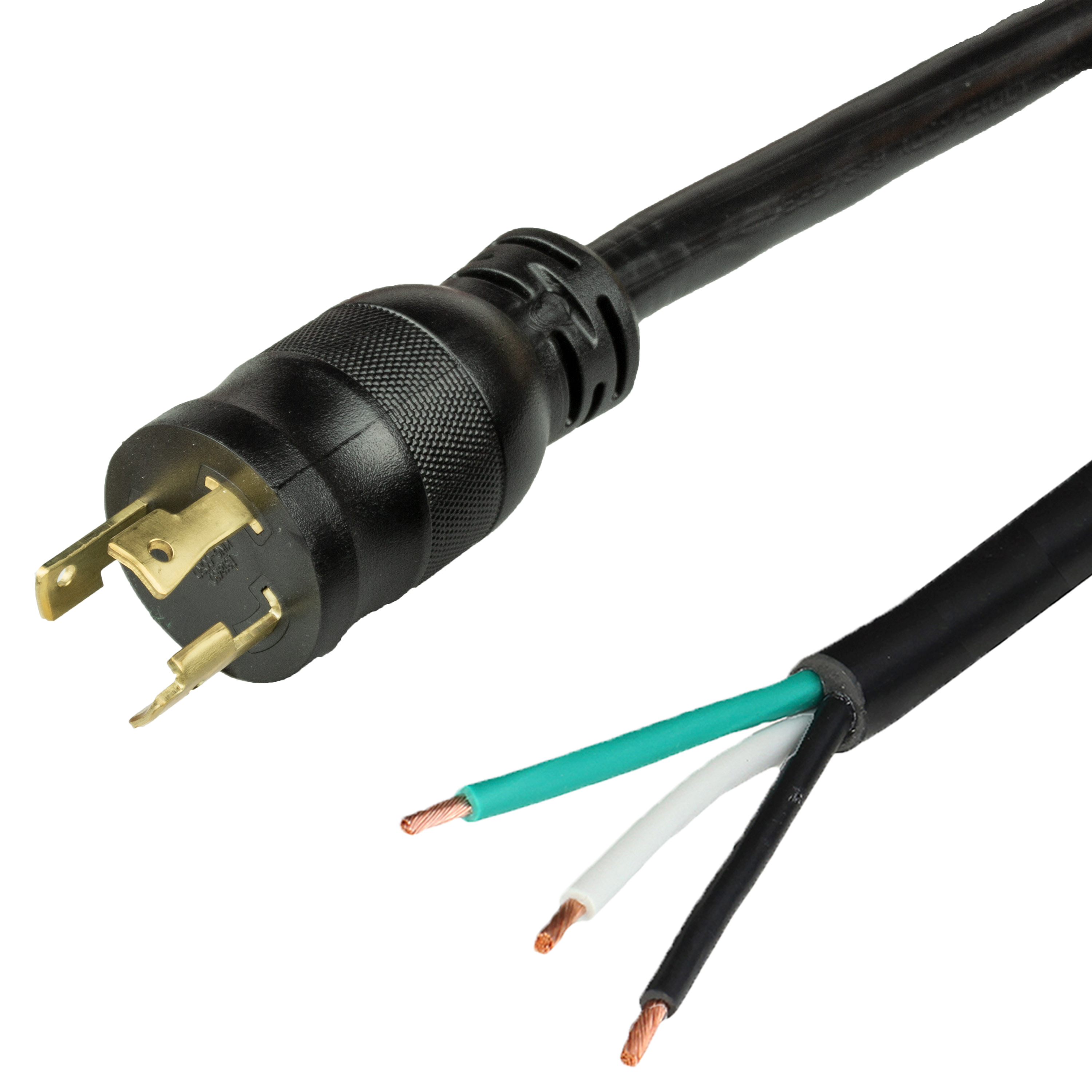

30A 250V NEMA L6-30P to Open (Whips, Pigtails) Black Power Cords

30A 250V NEMA L6-30P to Open (Whips, Pigtails) Black Power Cords

BLACK NEMA L6-30P to OPEN 30A 250V (208V) Power Cords. The OPEN end is prepared with a 2-inch ROJ (remove outer jacket) and 0.25-inch strip. Cordage is 10awg-3c SJT(OW). Rating is 30 amps 250 volts. Cords are UL cUL RoHS

For help finding a product or for product additional product information , call us at (860) 763-2100 or email sales@worldcordsets.com


Part Number
Length
Current (Amps)
Voltage (Volts)
Connector (Female)
Plug (Male)
Cordage
Availability
1+
10+
100+
  • 1 Foot
  • 30 Amps
  • 250 volts
  • Open Ended (Whips, Pigtails) Photo of Open Ended (Whips, Pigtails)
  • NEMA L6-30P Photo of NEMA L6-30P
  • 10awg-3c SJT
1 Foot
30 Amps
250 volts
Open Ended (Whips, Pigtails)
NEMA L6-30P
10awg-3c SJT

1+ :

10+ :

100+ :

  • 2 Feet
  • 30 Amps
  • 250 volts
  • Open Ended (Whips, Pigtails) Photo of Open Ended (Whips, Pigtails)
  • NEMA L6-30P Photo of NEMA L6-30P
  • 10awg-3c SJT
2 Feet
30 Amps
250 volts
Open Ended (Whips, Pigtails)
NEMA L6-30P
10awg-3c SJT

1+ :

10+ :

100+ :

  • 3 Feet
  • 30 Amps
  • 250 volts
  • Open Ended (Whips, Pigtails) Photo of Open Ended (Whips, Pigtails)
  • NEMA L6-30P Photo of NEMA L6-30P
  • 10awg-3c SJT
3 Feet
30 Amps
250 volts
Open Ended (Whips, Pigtails)
NEMA L6-30P
10awg-3c SJT

1+ :

10+ :

100+ :

  • 4 Feet
  • 30 Amps
  • 250 volts
  • Open Ended (Whips, Pigtails) Photo of Open Ended (Whips, Pigtails)
  • NEMA L6-30P Photo of NEMA L6-30P
  • 10awg-3c SJT
4 Feet
30 Amps
250 volts
Open Ended (Whips, Pigtails)
NEMA L6-30P
10awg-3c SJT

1+ :

10+ :

100+ :

  • 5 Feet
  • 30 Amps
  • 250 volts
  • Open Ended (Whips, Pigtails) Photo of Open Ended (Whips, Pigtails)
  • NEMA L6-30P Photo of NEMA L6-30P
  • 10awg-3c SJT
5 Feet
30 Amps
250 volts
Open Ended (Whips, Pigtails)
NEMA L6-30P
10awg-3c SJT

1+ :

10+ :

100+ :

  • 6 Feet
  • 30 Amps
  • 250 volts
  • Open Ended (Whips, Pigtails) Photo of Open Ended (Whips, Pigtails)
  • NEMA L6-30P Photo of NEMA L6-30P
  • 10awg-3c SJT
6 Feet
30 Amps
250 volts
Open Ended (Whips, Pigtails)
NEMA L6-30P
10awg-3c SJT

1+ :

10+ :

100+ :

  • 7 Feet
  • 30 Amps
  • 250 volts
  • Open Ended (Whips, Pigtails) Photo of Open Ended (Whips, Pigtails)
  • NEMA L6-30P Photo of NEMA L6-30P
  • 10awg-3c SJT
7 Feet
30 Amps
250 volts
Open Ended (Whips, Pigtails)
NEMA L6-30P
10awg-3c SJT

1+ :

10+ :

100+ :

  • 8 Feet
  • 30 Amps
  • 250 volts
  • Open Ended (Whips, Pigtails) Photo of Open Ended (Whips, Pigtails)
  • NEMA L6-30P Photo of NEMA L6-30P
  • 10awg-3c SJT
8 Feet
30 Amps
250 volts
Open Ended (Whips, Pigtails)
NEMA L6-30P
10awg-3c SJT

1+ :

10+ :

100+ :

  • 9 Feet
  • 30 Amps
  • 250 volts
  • Open Ended (Whips, Pigtails) Photo of Open Ended (Whips, Pigtails)
  • NEMA L6-30P Photo of NEMA L6-30P
  • 10awg-3c SJT
9 Feet
30 Amps
250 volts
Open Ended (Whips, Pigtails)
NEMA L6-30P
10awg-3c SJT

1+ :

10+ :

100+ :

  • 11 Feet
  • 30 Amps
  • 250 volts
  • Open Ended (Whips, Pigtails) Photo of Open Ended (Whips, Pigtails)
  • NEMA L6-30P Photo of NEMA L6-30P
  • 10awg-3c SJT
11 Feet
30 Amps
250 volts
Open Ended (Whips, Pigtails)
NEMA L6-30P
10awg-3c SJT

1+ :

10+ :

100+ :

  • 13 Feet
  • 30 Amps
  • 250 volts
  • Open Ended (Whips, Pigtails) Photo of Open Ended (Whips, Pigtails)
  • NEMA L6-30P Photo of NEMA L6-30P
  • 10awg-3c SJT
13 Feet
30 Amps
250 volts
Open Ended (Whips, Pigtails)
NEMA L6-30P
10awg-3c SJT

1+ :

10+ :

100+ :

  • 14 Feet
  • 30 Amps
  • 250 volts
  • Open Ended (Whips, Pigtails) Photo of Open Ended (Whips, Pigtails)
  • NEMA L6-30P Photo of NEMA L6-30P
  • 10awg-3c SJT
14 Feet
30 Amps
250 volts
Open Ended (Whips, Pigtails)
NEMA L6-30P
10awg-3c SJT

1+ :

10+ :

100+ :

  • 15 Feet
  • 30 Amps
  • 250 volts
  • Open Ended (Whips, Pigtails) Photo of Open Ended (Whips, Pigtails)
  • NEMA L6-30P Photo of NEMA L6-30P
  • 10awg-3c SJT
15 Feet
30 Amps
250 volts
Open Ended (Whips, Pigtails)
NEMA L6-30P
10awg-3c SJT

1+ :

10+ :

100+ :



Specifications of NEMA L6-30P to Open End Power Supply Cords

Current (Amps)
Voltage (Volts)
Connector (Female)
Plug (Male)
Cordage

NEMA 6-30P

NEMA 6-30P

General Information:

The NEMA 6-30P is a (hot-hot-ground) grounded plug that is rated up to 250V and 30A. This plug will supply either 208V or 240V based upon your electrical service, and will provide no neutral connection. This is commonly found on in-rack power distribution units where the electrical service is greater than 120V. The locking safety feature prevents this plug from disconnecting without intent.


What does the NEMA L6-30P Plug into?





NEMA L6-30R Connector
NEMA L6-30R OutletThe NEMA L6-30P connects to both the NEMA L6-30R Connector which is commonly found on extension cords and power drops, and the outlet which is commonly found in industrial settings where 208/240V Power supply is used.

Open Ended (Whips, Pigtails, ROJ Strip)

Open Ended (Whips, Pigtails, ROJ Strip)

General Information:

The open end of a power supply cord is hard wired to another device, providing power either to our from that device. Unless otherwise noted, our power supply cords come standard with a 2" ROJ (Remove Outer Jacket) and a 1/4" Strip. The ROJ length determines the length of the individual conductors, and the Strip length determines the amount of copper exposed on the end of each conductor. If you require a custom ROJ or Strip length, please don't hesitate to reach out to us.




Open Ended North American Color Code
NACC

Open Ended International Color Code
ICC


International Color Code(ICC) vs. North American Color Code(NACC)


For the majority of our customers, the color code used for the cordage is negligible. However, for OEM customers, or customers dealing with government installations or projects that have highly specified cords the color code used will be important to establish. Our standard color code for our Cut/ Remove of Outer Jacket/ Strip Conductor Job is North American Color Code (NACC).



Ground ColorNeutral ColorLine/ Hot Color

International Color Code (ICC)
Green & Yellow
Blue
Brown


North American Color Code (NACC)GreenWhite
Black


Documents & Drawings
