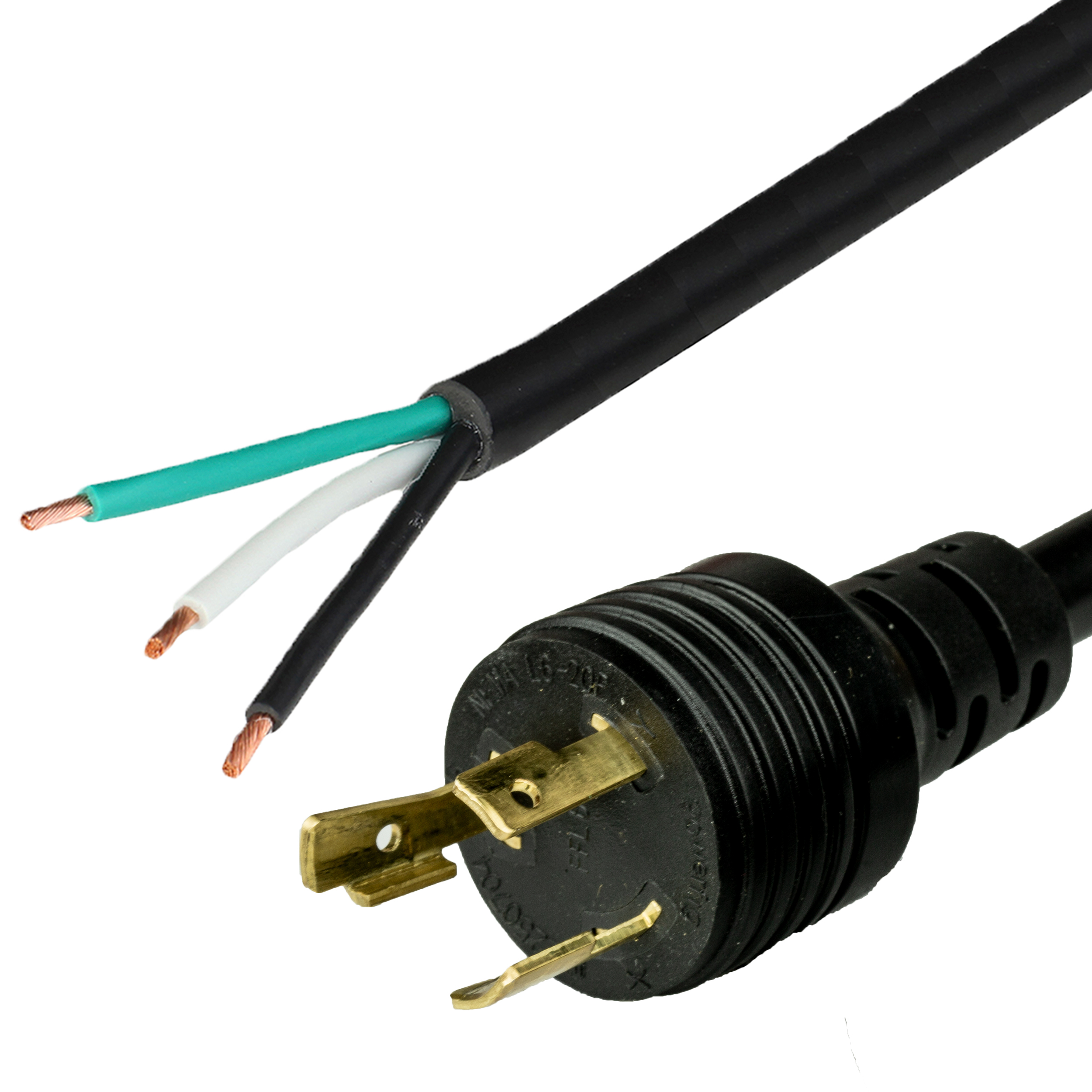

20A NEMA L6-20P TO OPEN (WHIPS, PIGTAIL CABLES)

THE NEMA L6-20P is a 3 Wire 3 Blade grounded device with hot-hot-ground wiring and is rated up to 250V AC and 20 Amps. The open end allows the cord to be hard wired.


NEMA L6-20P

NEMA L6-20P

General Information:

The NEMA L6-20P is a 3 wire grounded plug with a hot, hot and ground pin rated up to 250V and 20A. This plug can be locked into place on the matching receptacle which prevents nuisance disconnection. This plug is commonly found on in-rack power distribution units (PDU) where standard electrical service exceeds 125V, also in industrial settings to supply power to equipment or power tools.

What does the NEMA L6-20P Plug into?




L6-20R Connector
NEMA L6-20R Outlet
The NEMA L6-20P connects to both the NEMA L6-20R Connector which is commonly found on extension cords and power drops, and the outlet which is commonly found in industrial settings where 208/240V Power supply is used.

Open Ended (Whips, Pigtails, ROJ Strip)

Open Ended (Whips, Pigtails, ROJ Strip)

General Information:

The open end of a power supply cord is hard wired to another device, providing power either to our from that device. Unless otherwise noted, our power supply cords come standard with a 2" ROJ (Remove Outer Jacket) and a 1/4" Strip. The ROJ length determines the length of the individual conductors, and the Strip length determines the amount of copper exposed on the end of each conductor. If you require a custom ROJ or Strip length, please don't hesitate to reach out to us.




Open Ended North American Color Code
NACC

Open Ended International Color Code
ICC


International Color Code(ICC) vs. North American Color Code(NACC)


For the majority of our customers, the color code used for the cordage is negligible. However, for OEM customers, or customers dealing with government installations or projects that have highly specified cords the color code used will be important to establish. Our standard color code for our Cut/ Remove of Outer Jacket/ Strip Conductor Job is North American Color Code (NACC).



Ground ColorNeutral ColorLine/ Hot Color

International Color Code (ICC)
Green & Yellow
Blue
Brown


North American Color Code (NACC)GreenWhite
Black
