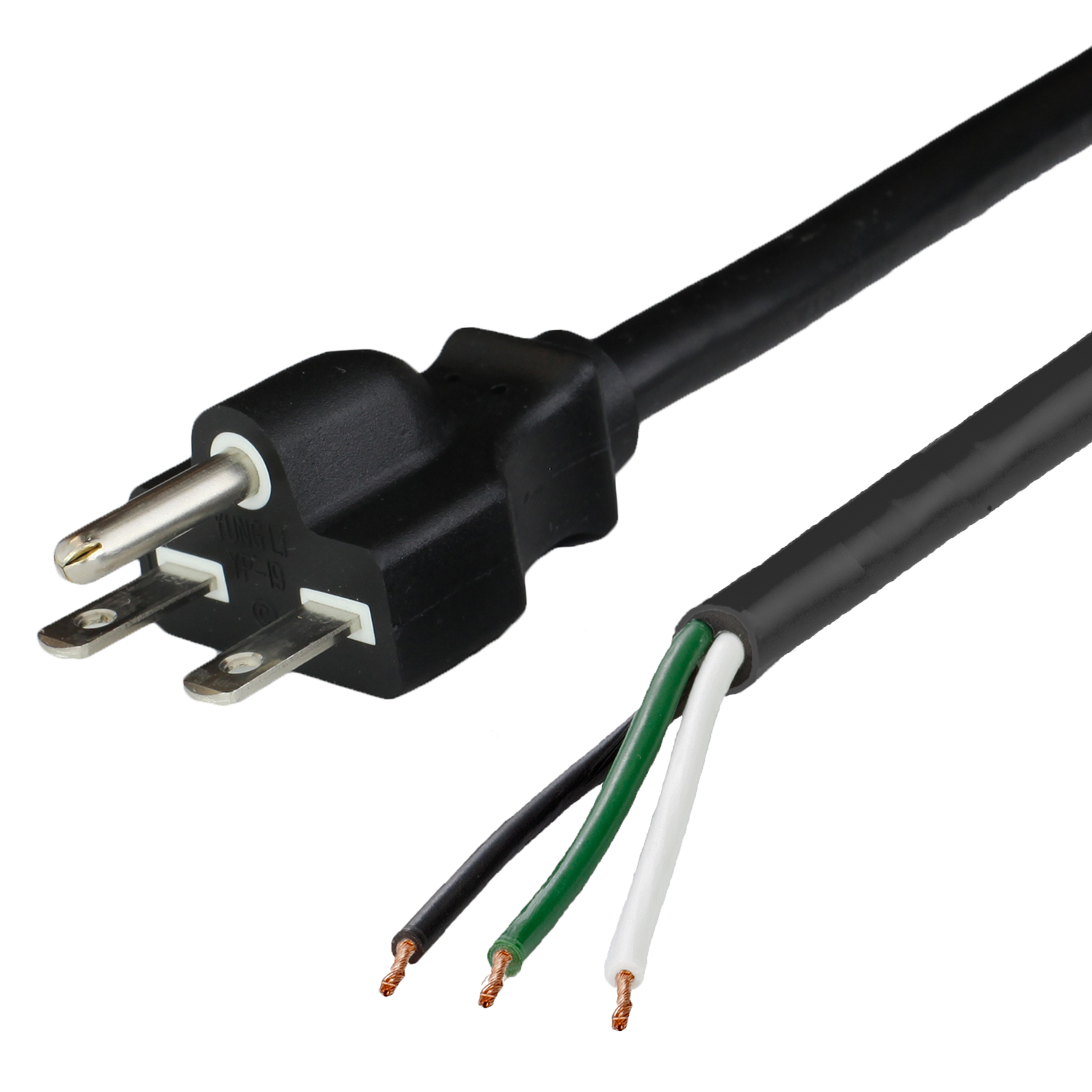

BLACK NEMA 6-15P to OPEN 15A 250V (208V) Power Cords. The OPEN end is prepared with a 2-inch ROJ (remove outer jacket) and 0.25-inch strip. Cordage is 14awg-3c SJT(OW). Rating is 15 amps 250 volts. Cords are UL cUL RoHS.


NEMA 6-15P

NEMA 6-15P

General Information:

The NEMA 6-15P is a 3 Wire grounded plug featuring two line blades and a ground pin, rated up to 250V AC and 15 Amps. The NEMA 6-15P has two, horizontal blades on the top of the plug spaced 23⁄32" center to center and a ground pin spaced between the two on the bottom of the plug. The NEMA 6 Series is commonly used with 208V and 240V circuits depending on your electrical service. The NEMA 6-15P Series does not feature a neutral conductor.

What does the NEMA 6-15 plug into?




NEMA 6-15R
6-20R Outlet
The NEMA 6-15P Connects to both the NEMA 6-20R Connector and the NEMA 6-15/20R Wall Outlet. The Connector is used for extension cords and power drops, while the outlet is found in some commercial and industrial buildings.


Open Ended (Whips, Pigtails, ROJ Strip)

Open Ended (Whips, Pigtails, ROJ Strip)

General Information:

The open end of a power supply cord is hard wired to another device, providing power either to our from that device. Unless otherwise noted, our power supply cords come standard with a 2" ROJ (Remove Outer Jacket) and a 1/4" Strip. The ROJ length determines the length of the individual conductors, and the Strip length determines the amount of copper exposed on the end of each conductor. If you require a custom ROJ or Strip length, please don't hesitate to reach out to us.




Open Ended North American Color Code
NACC

Open Ended International Color Code
ICC


International Color Code(ICC) vs. North American Color Code(NACC)


For the majority of our customers, the color code used for the cordage is negligible. However, for OEM customers, or customers dealing with government installations or projects that have highly specified cords the color code used will be important to establish. Our standard color code for our Cut/ Remove of Outer Jacket/ Strip Conductor Job is North American Color Code (NACC).



Ground ColorNeutral ColorLine/ Hot Color

International Color Code (ICC)
Green & Yellow
Blue
Brown


North American Color Code (NACC)GreenWhite
Black
