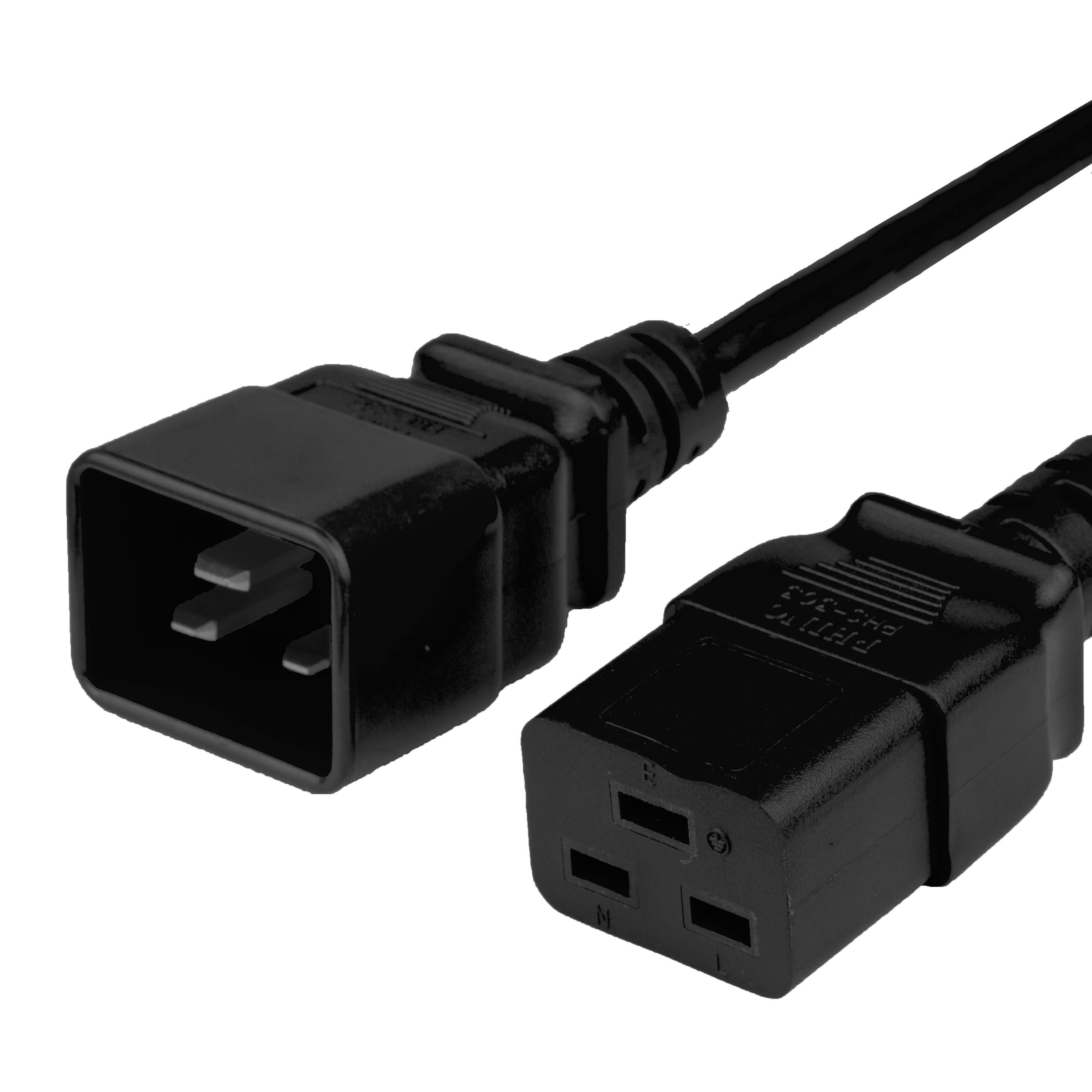

Black 16A C20 C19 HYBRID Power Cords - Dual Listed

Black 16A C20 C19 HYBRID Power Cords - Dual Listed

BLACK 16A 250V C20 C19 Power Cords. IEC 60320 Standard. Computer, PDU, Data Center applications.

For help finding a product or for product additional product information , call us at (860) 763-2100 or email sales@worldcordsets.com

Click below to view other colors


Part Number
Length
Current (Amps)
Voltage (Volts)
Connector (Female)
Plug (Male)
Availability
1+
10+
100+
  • 1 Foot
  • 16 Amps (Euro) , 18 Amps (North America)
  • 250 volts
  • IEC 60320 C19 Photo of IEC 60320 C19
  • IEC 60320 C20 Photo of IEC 60320 C20
1 Foot
16 Amps (Euro) , 18 Amps (North America)
250 volts
IEC 60320 C19
IEC 60320 C20

1+ :

10+ :

100+ :

  • 1.5 Feet
  • 16 Amps (Euro) , 18 Amps (North America)
  • 250 volts
  • IEC 60320 C19 Photo of IEC 60320 C19
  • IEC 60320 C20 Photo of IEC 60320 C20
1.5 Feet
16 Amps (Euro) , 18 Amps (North America)
250 volts
IEC 60320 C19
IEC 60320 C20

1+ :

10+ :

100+ :

  • 2 Feet
  • 16 Amps (Euro) , 18 Amps (North America)
  • 250 volts
  • IEC 60320 C19 Photo of IEC 60320 C19
  • IEC 60320 C20 Photo of IEC 60320 C20
2 Feet
16 Amps (Euro) , 18 Amps (North America)
250 volts
IEC 60320 C19
IEC 60320 C20

1+ :

10+ :

100+ :

  • 2.5 Feet
  • 16 Amps (Euro) , 18 Amps (North America)
  • 250 volts
  • IEC 60320 C19 Photo of IEC 60320 C19
  • IEC 60320 C20 Photo of IEC 60320 C20
2.5 Feet
16 Amps (Euro) , 18 Amps (North America)
250 volts
IEC 60320 C19
IEC 60320 C20

1+ :

10+ :

100+ :

  • 3 Feet
  • 16 Amps (Euro) , 18 Amps (North America)
  • 250 volts
  • IEC 60320 C19 Photo of IEC 60320 C19
  • IEC 60320 C20 Photo of IEC 60320 C20
3 Feet
16 Amps (Euro) , 18 Amps (North America)
250 volts
IEC 60320 C19
IEC 60320 C20

1+ :

10+ :

100+ :

  • 4 Feet
  • 16 Amps (Euro) , 18 Amps (North America)
  • 250 volts
  • IEC 60320 C19 Photo of IEC 60320 C19
  • IEC 60320 C20 Photo of IEC 60320 C20
4 Feet
16 Amps (Euro) , 18 Amps (North America)
250 volts
IEC 60320 C19
IEC 60320 C20

1+ :

10+ :

100+ :

  • 5 Feet
  • 16 Amps (Euro) , 18 Amps (North America)
  • 250 volts
  • IEC 60320 C19 Photo of IEC 60320 C19
  • IEC 60320 C20 Photo of IEC 60320 C20
5 Feet
16 Amps (Euro) , 18 Amps (North America)
250 volts
IEC 60320 C19
IEC 60320 C20

1+ :

10+ :

100+ :

  • 6 Feet
  • 16 Amps (Euro) , 18 Amps (North America)
  • 250 volts
  • IEC 60320 C19 Photo of IEC 60320 C19
  • IEC 60320 C20 Photo of IEC 60320 C20
6 Feet
16 Amps (Euro) , 18 Amps (North America)
250 volts
IEC 60320 C19
IEC 60320 C20

1+ :

10+ :

100+ :

  • 7 Feet
  • 16 Amps (Euro) , 18 Amps (North America)
  • 250 volts
  • IEC 60320 C19 Photo of IEC 60320 C19
  • IEC 60320 C20 Photo of IEC 60320 C20
7 Feet
16 Amps (Euro) , 18 Amps (North America)
250 volts
IEC 60320 C19
IEC 60320 C20

1+ :

10+ :

100+ :

  • 8 Feet
  • 16 Amps (Euro) , 18 Amps (North America)
  • 250 volts
  • IEC 60320 C19 Photo of IEC 60320 C19
  • IEC 60320 C20 Photo of IEC 60320 C20
8 Feet
16 Amps (Euro) , 18 Amps (North America)
250 volts
IEC 60320 C19
IEC 60320 C20

1+ :

10+ :

100+ :

  • 9 Feet
  • 16 Amps (Euro) , 18 Amps (North America)
  • 250 volts
  • IEC 60320 C19 Photo of IEC 60320 C19
  • IEC 60320 C20 Photo of IEC 60320 C20
9 Feet
16 Amps (Euro) , 18 Amps (North America)
250 volts
IEC 60320 C19
IEC 60320 C20

1+ :

10+ :

100+ :

  • 10 Feet
  • 16 Amps (Euro) , 18 Amps (North America)
  • 250 volts
  • IEC 60320 C19 Photo of IEC 60320 C19
  • IEC 60320 C20 Photo of IEC 60320 C20
10 Feet
16 Amps (Euro) , 18 Amps (North America)
250 volts
IEC 60320 C19
IEC 60320 C20

1+ :

10+ :

100+ :

  • 12 Feet
  • 16 Amps (Euro) , 18 Amps (North America)
  • 250 volts
  • IEC 60320 C19 Photo of IEC 60320 C19
  • IEC 60320 C20 Photo of IEC 60320 C20
12 Feet
16 Amps (Euro) , 18 Amps (North America)
250 volts
IEC 60320 C19
IEC 60320 C20

1+ :

10+ :

100+ :

  • 15 Feet
  • 16 Amps (Euro) , 18 Amps (North America)
  • 250 volts
  • IEC 60320 C19 Photo of IEC 60320 C19
  • IEC 60320 C20 Photo of IEC 60320 C20
15 Feet
16 Amps (Euro) , 18 Amps (North America)
250 volts
IEC 60320 C19
IEC 60320 C20

1+ :

10+ :

100+ :

  • 5.0 meters
  • 16 Amps (Euro) , 18 Amps (North America)
  • 250 volts
  • IEC 60320 C19 Photo of IEC 60320 C19
  • IEC 60320 C20 Photo of IEC 60320 C20
5.0 meters
16 Amps (Euro) , 18 Amps (North America)
250 volts
IEC 60320 C19
IEC 60320 C20

1+ :

10+ :

100+ :



Specifications of 15/16A C20 C19 Power Cords

Voltage (Volts)
Connector (Female)
Plug (Male)
Cordage
Certifications
Country of Origin
Color
Approvals
, , , , ,
Current (Amps)
,

IEC 60320 C20 PLUG (MALE)

IEC 60320 C20 PLUG (MALE)

General Information:

The IEC 60320 C20 is a grounded 3 Wire Plug rated up to 250V and 20 Amps. It is commonly used with either 14awg or 12awg conductors, depending on the application and the power draw required for the device. The most common configuration for a C20 is in a jumper cable scenario, providing power from a PDU to a blade server chassis, high powered server, large network router, or similar device. The C20 is used in applications where the most common IEC320 plug, the C14 will not provide enough power. This plug is rated for temperatures up to 65*C. For applications where the temperature of the equipment exceeds 65 degree C, we recommend using the high tempature version: The IEC 60320 C22 High Temperature plug, which is rated for temperatures up to 155*C.


What does the IEC 60320 C20 Plug into?




IEC 60320 C19 Connector
IEC 60320 C19 Outlet
The IEC 60320 type C20 Plug is designed to connect to a standard IEC 320 C19 connector or Outlet. The connector is commonly found on power cords, and the outlet is commonly found on Power Distribution units.


IEC 60320 C19 CONNECTOR (FEMALE)

IEC 60320 C19 CONNECTOR (FEMALE)

General Information:

The IEC 60320 C19 is a grounded 3 Wire connector rated up to 250V and 20 Amps. The C19 can be found on a variety of power cords, including NEMA to 320 Adapter cords, and International Plug types to IEC 320 connectors, but the most common application is the IEC 320 C20 to C19 power cord which is a a standard extension cord used to power high powered IT Equipment. The C19 is typically used in high powered blade server chassis, large network routers, and other IT equipment that draws more power than a standard C13 can accommodate.

What does the IEC 60320 C19 Connect to?





IEC 60320 C20 Plug
IEC 60320 C20 InletThe IEC 60320 type C19 connector is designed to connect to the IEC 320 C20 plug and Inlet. THE C20 Plug is commonly found on power cords used in the data center industry. The C20 Inlet can be found on a variety of high powered IT Equipment ranging from switches to Un-Interrupted Power Supply systems.

White Label Shipping

White Label Shipping

Are you a reseller looking for Blind or White Label Drop Shipping? We offer both! During checkout simply select "Blind Shipping", then either upload your own packing slip, or, upload your logo and part numbers into ours. You will receive automated tracking emails as soon as your order has been packed so you can keep your customer up to date in realtime. Blind drop shipping has never been easier. Contact us today!

Manufactured Under ISO: 9001

Manufactured Under ISO: 9001

Our power cord sets are manufactured under an ISO 9001 quality management system to ensure that you get the same outstanding quality with on every order you place.
All of our NorthAmerican use Power Cord Sets are UL listed under E503529. This means that you can be sure that all of our power cord sets are of the highest quality and are certified for use in the United States.

UL Listed : E503526

UL Listed : E503526

World Cord Sets strives to deliver the best quality products for the lowest cost, to show our commitment to quality and our understanding of customers expectation for consistence of quality we obtained the UL certification. All of our North American use Power Cord Sets are UL listed under E503529. This means that you can be sure that all of our power cord sets are of the highest quality and are certified for use in the United States.

Lifetime Warranty

Lifetime Warranty

Why do we offer a lifetime warranty?

We offer a lifetime warranty because we know that it won't have to be used. Our products are manufactured using only the highest quality components, and, undergo rigorous quality assurance inspections and testing to ensure all of our products meet our exacting standards. Our lifetime warranty gives you peace of mind that your purchase is 100% guaranteed to work.


What does the warranty cover?

All cords, cables, patch panels, and adapters sold on this website in original unmodified condition are covered under this warranty. Warranty does not cover damage caused by misuse.


How does the warranty work?

To use the lifetime warranty, simply request an RMA and send your defective material back to us and we will either repair or replace the goods and return them back to you in working condition.
