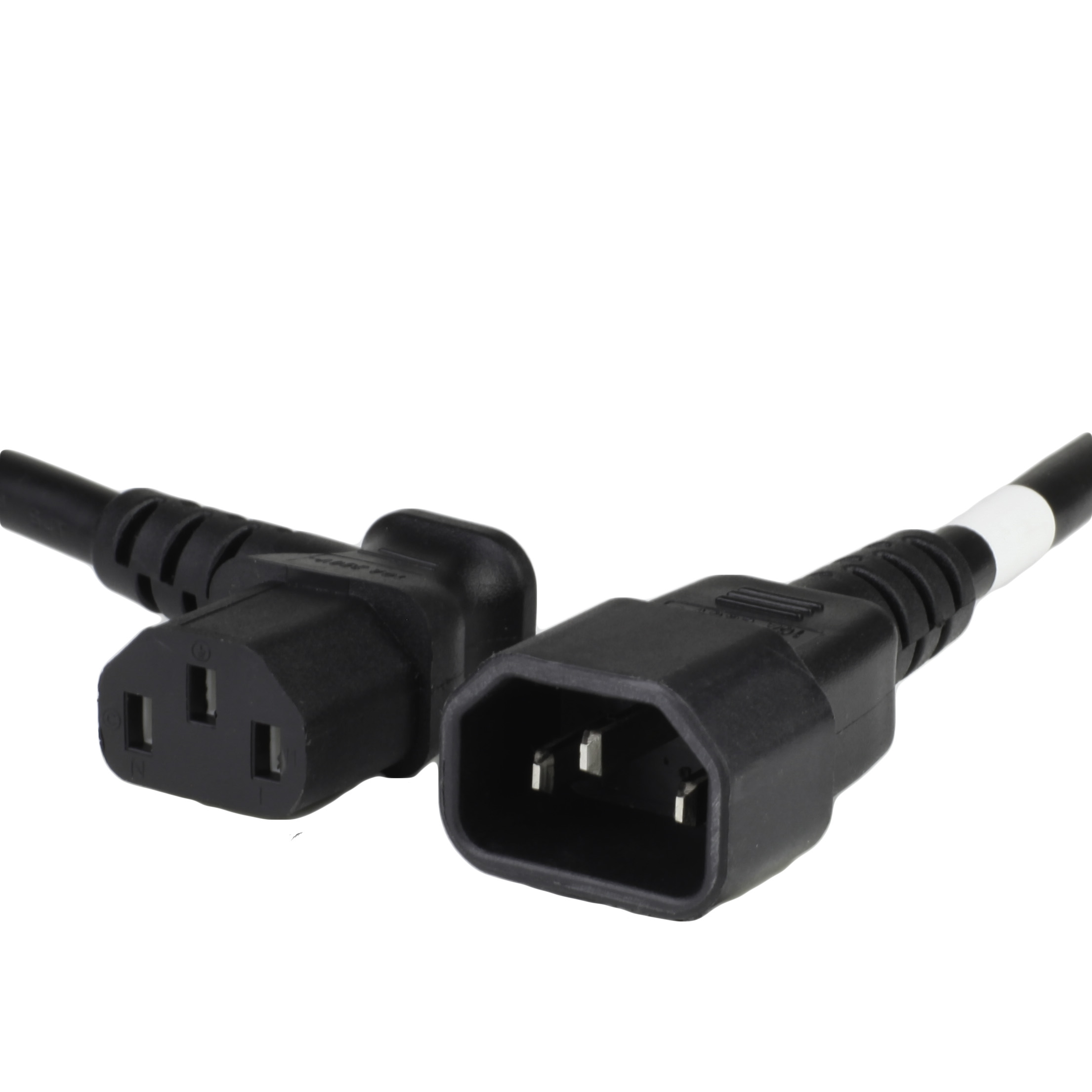

IEC 60320 C13 Right Angle
- The IEC 60320 C13 is a grounded 3 Wire connector rated up to 250V and 15 Amps. The C13 mates with a C14 inlet, and is commonly used in a jumper cable scenario in IT Installations providing power from a PDU to a server, router, switch or other computing device. Most people know the C13 as 'the thing that plugs into my computer' because it is the standard connector used to power most desktop computers. In a desktop computer application, the most common cable is the NEMA 5-15P to C13, which connects your standard North American wall outlet to a desktop computer. The right angle connector style is for installing in tight spaces where the power supply or opening is towards the right
IEC 60320 C14 PLUG (MALE)
The IEC 60320 C14 is a grounded 3 Wire Plug rated up to 250V and 15 Amps. The C14 plug is one of the most commonly used plugs in the data center industry, especially the Inlet version, which is found on the vast majority of Information Technology devices that are produced today. The IEC 60320 C14 is typically used with either 18awg SVT, 18awg SJT(OW), 16awg SJT(OW) or 14awg SJT(OW). The types of cordages used will change the rating of the overall cord set. This plug is very common in consumer, commercial and industrial applications which can create many different names for this plug across different industries like the computer plug, IEC plug, and more generalized names. Some also refer to this as the iec C13 plug, or the c13 power plug because of the C13 connector that it mates with.
What does the IEC 60320 C14 plug into?
|The IEC 60320 C14 plug is designed to connect to the IEC 320 C13 connector and the outlet. The connector is found on a variety of 10-15A power cords, while the outlet is located on a variety of power supplies. The outlet is most commonly found on Power Distribution Units found in office, commercial, or data center settings as well as Power Adapter bricks.|
White Label Shipping
Are you a reseller looking for Blind or White Label Drop Shipping? We offer both! During checkout simply select "Blind Shipping", then either upload your own packing slip, or, upload your logo and part numbers into ours. You will receive automated tracking emails as soon as your order has been packed so you can keep your customer up to date in realtime. Blind drop shipping has never been easier. Contact us today!
Manufactured Under ISO: 9001
Our power cord sets are manufactured under an ISO 9001 quality management system to ensure that you get the same outstanding quality with on every order you place.
All of our NorthAmerican use Power Cord Sets are UL listed under E503529. This means that you can be sure that all of our power cord sets are of the highest quality and are certified for use in the United States.
UL Listed : E503526
World Cord Sets strives to deliver the best quality products for the lowest cost, to show our commitment to quality and our understanding of customers expectation for consistence of quality we obtained the UL certification. All of our North American use Power Cord Sets are UL listed under E503529. This means that you can be sure that all of our power cord sets are of the highest quality and are certified for use in the United States.
Why do we offer a lifetime warranty?
We offer a lifetime warranty because we know that it won't have to be used. Our products are manufactured using only the highest quality components, and, undergo rigorous quality assurance inspections and testing to ensure all of our products meet our exacting standards. Our lifetime warranty gives you peace of mind that your purchase is 100% guaranteed to work.
What does the warranty cover?
All cords, cables, patch panels, and adapters sold on this website in original unmodified condition are covered under this warranty. Warranty does not cover damage caused by misuse.
How does the warranty work?
To use the lifetime warranty, simply request an RMA and send your defective material back to us and we will either repair or replace the goods and return them back to you in working condition.
IEC 60320 C14 CONNECTOR (MALE)

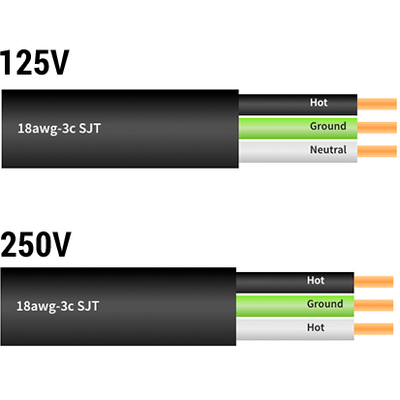

These cords feature 3 18awg conductors with North American Color Coding surrounded by a robust SJT (Service Junior Thermoplastic) outer jacket.
These cord sets can be used in either 125V circuits, or, 250V circuits as shown on the left. When used in 125V circuits, there is one Hot conductor, the green Ground conductor, and one Neutral conductor. When used in 250V circuits, there are two Hot conductors, and the green Ground conductor.
It is very important that you ensure the device you are plugging this cordset into can handle the voltage supplied by the power source. For example, if you connect this power cord set to a device rated for 125V, and a power source rated for 250V, you are going to fry the device as this cord set DOES NOT CHANGE VOLTAGE.
Applications of C14 to C13 Power Cords
See below for the application of using a C14-C13 Power Cord from World Cord Sets to connect a C13 outlet on a PDU to a C14 inlet on an HPE Proliant Server.
|(1) Rack Mount PDU ||Rack Mounted PDUs are the standard way to distribute power to many devices in a rack. WoCo C14 C13 power cables mate perfectly will all brands of PDU including APC, Raritan, Server Technology and more.|
|(2) C14 Plug (Male)||The C14 plug on this power cable will mate with any C13 Outlet. The standard C14 does not feature a locking mechanism.|
|(3) C13 Connector (Female)||The C13 connector will mate with a matching C14 inlet, typically found on servers, routers, switches, and your standard desktop computer.|
|(4) Server, Router, Switch, Computer, Equipment||Many small appliances use a C14 inlet to provide power to the PSU (Power Supply Unit). Our C13 connectors will mate with any C14 inlet on your small appliance.|
