C14 to C13 SPLITTER Power Cords

IEC 60320 C14 to C13 Splitter Power Cords, also known as Y-Cords when using two connectors, are typically used to connect ONE PDU to MULTIPLE PSU's. We carry C14 C13 power splitter cables with 2x, 3x, and 4x branches/legs. It is important you do not exceed the rated power draw of the splitter cord in use when attaching several pieces of equipment. Refer to your equipment's specifications to determine what power rated cord you need.


For other cordages, ampere ratings, angles, and colors, please see our main C14 to C13 Power Cords page.

For help finding a product or for product additional product information , call us at (860) 763-2100 or email sales@worldcordsets.com

General Information About C14 to C13 Splitter Power Cord Sets

Splitter power cords are used to connect one power source to multiple devices. Below we will cover the general terminology used when talking about splitter power cords.


Terminology

  • Splitter Box : The splitter box refers to the junction where the input side of the cord splits into 2x, 3x, or 4x output sides.
  • Branch Length / Leg Length : The Branch Length or Leg Length refers to the length between the splitter box and the female connector. Some splitter cord sets can have different leg lengths for each leg, however most have identical leg lengths.
  • Y-Splitter: A Y-Splitter has 2 legs
  • Trident Splitter: A Trident splitter has 3 legs

IEC 60320 C14 PLUG (MALE)

IEC 60320 C14 PLUG (MALE)

General Information:

The IEC 60320 C14 is a grounded 3 Wire Plug rated up to 250V and 15 Amps. The C14 plug is one of the most commonly used plugs in the data center industry, especially the Inlet version, which is found on the vast majority of Information Technology devices that are produced today. The IEC 60320 C14 is typically used with either 18awg SVT, 18awg SJT(OW), 16awg SJT(OW) or 14awg SJT(OW). The types of cordages used will change the rating of the overall cord set. This plug is very common in consumer, commercial and industrial applications which can create many different names for this plug across different industries like the computer plug, IEC plug, and more generalized names. Some also refer to this as the iec C13 plug, or the c13 power plug because of the C13 connector that it mates with.

What does the IEC 60320 C14 plug into?




IEC 60320 C13 Connector
IEC 60320 C13 Outlet
The IEC 60320 C14 plug is designed to connect to the IEC 320 C13 connector and the outlet. The connector is found on a variety of 10-15A power cords, while the outlet is located on a variety of power supplies. The outlet is most commonly found on Power Distribution Units found in office, commercial, or data center settings as well as Power Adapter bricks.

IEC 60320 C13 CONNECTOR (FEMALE)

IEC 60320 C13 CONNECTOR (FEMALE)

General Information:

The IEC 60320 C13 is a grounded 3 Wire connector rated up to 250V and 15 Amps. The C13 mates with a C14 inlet, and is commonly used in a jumper cable scenario in IT Installations providing power from a PDU to a server, router, switch or other computing device. Most people know the C13 as 'the thing that plugs into my computer' because it is the standard connector used to power most desktop computers. In a desktop computer application, the most common cable is the NEMA 5-15P to C13, which connects your standard North American wall outlet to a desktop computer. The iec 320 c13 c14 plug and connector are synonymous with Information Technology equipment primarily, but the C13 can be found powering equipment like medical devices and gaming consoles.

What does the IEC 60320 C13 Connect to?





IEC 60320 C14 Plug'

IEC 60320 C14 Inlet
The IEC 320 type C13 connector is designed to connect to the IEC 320 C14 plug and inlet. The C14 Plug is commonly found on power cords located in office, commercial or data center settings since the C13 inlet is usually only found in those environments. The C14 Inlet is commonly found on a variety of IT Equipment like monitors, switches, printers, power adapters, and more.

White Label Shipping

White Label Shipping

Are you a reseller looking for Blind or White Label Drop Shipping? We offer both! During checkout simply select "Blind Shipping", then either upload your own packing slip, or, upload your logo and part numbers into ours. You will receive automated tracking emails as soon as your order has been packed so you can keep your customer up to date in realtime. Blind drop shipping has never been easier. Contact us today!

Manufactured Under ISO: 9001

Manufactured Under ISO: 9001

Our power cord sets are manufactured under an ISO 9001 quality management system to ensure that you get the same outstanding quality with on every order you place.
All of our NorthAmerican use Power Cord Sets are UL listed under E503529. This means that you can be sure that all of our power cord sets are of the highest quality and are certified for use in the United States.

UL Listed : E503526

UL Listed : E503526

World Cord Sets strives to deliver the best quality products for the lowest cost, to show our commitment to quality and our understanding of customers expectation for consistence of quality we obtained the UL certification. All of our North American use Power Cord Sets are UL listed under E503529. This means that you can be sure that all of our power cord sets are of the highest quality and are certified for use in the United States.

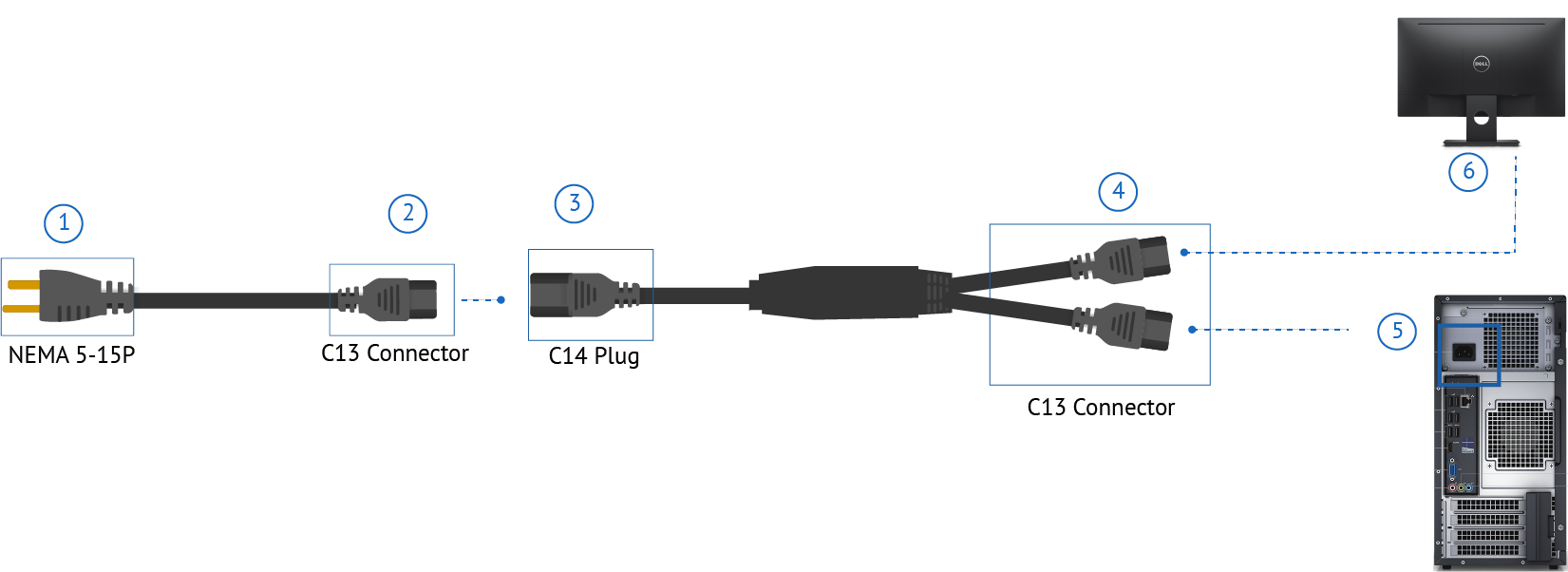

C14 to C13 Splitter Cables In the Home/Office

Splitter power cables are used in offices/homes to reduce clutter on a desk. By connecting the C14 to the C13 connector on an existing computer power cable, you can use this as an extension cord with two C13 connectors to connect to your computer and monitor. This allows you to only use 1 outlet for all of your equipment. These splitter cables are also perfect for use in multiple monitor configurations in order to connect all monitors to just one outlet.


C14 to C13 Splitter Cables In the Home/Office

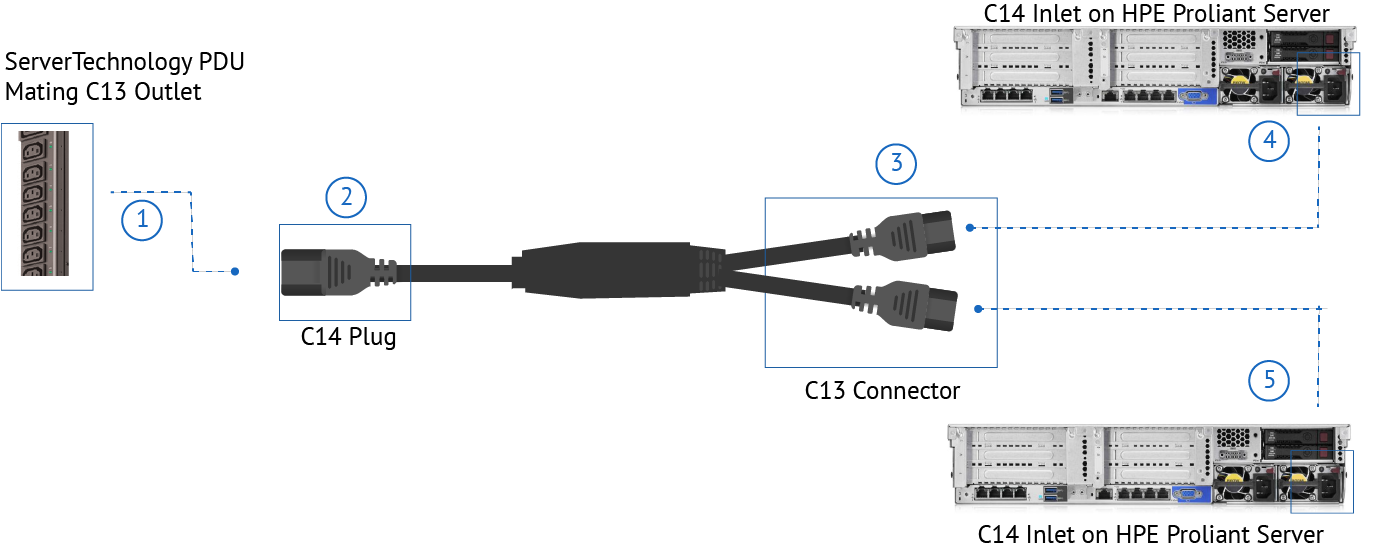

C14 to C13 Splitter Cables In the Data Center

Splitter power cables are used in data centers to utilize fewer outlets on a PDU. One common method of using splitter cables is for one splitter to connect the PDU on Circuit #1 to the Primary Power Supply on two different servers. Then, connect the PDU on Circuit #2 to the Secondary Power Supply Units on two different servers in the rack. This allows your servers to still have the redundancy of two completely separate circuits. However, if the splitter disconnects from the PDU, two servers will be running on only one power supply unit instead of only one server being disconnected.


C14 to C13 Splitter Cables In the Data Center
