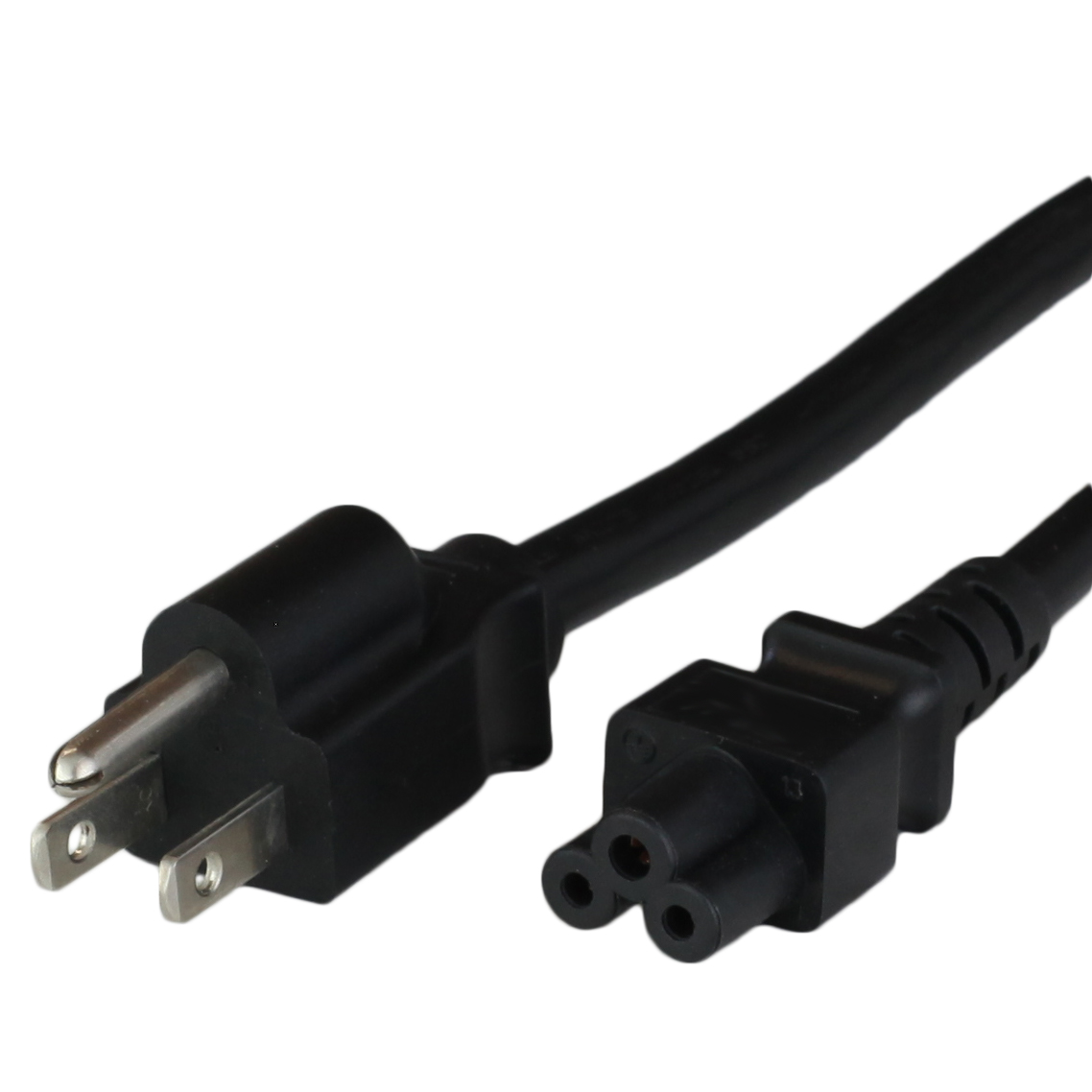

Nema 5-15P to IEC60320 C5 Grounded 15A 125V  Power Cords

Nema 5-15P to IEC60320 C5 Grounded 15A 125V Power Cords

Nema 5-15P to IEC60320 C5 Power Cords. The NEMA 5-15P is a 3 Wire grounded plug featuring two blades (can be equal or unequal widths due to the ground pin forcing polarity) and one ground pin rated up to 125V AC and 15 Amps. The NEMA 5-15P is your standard household plug used for to connect small appliances such as TV's, Microwaves, hairdryers, etc to a wall outlet. The NEMA 5-15P is compatible with a Nema 5-20R T-Slot outlet, which is commonly found in new home installations. The IEC 60320 C5 is a grounded 3 Wire connector rated up to 250V and 2.5 Amps Internationally or 125V and 10 Amps in North America. The C5 mates with a C6 inlet, and is commonly used for laptop power supplies, projectors, and some televisions. Being slightly smaller in size than the C13, the C5 can be a good choice for smaller appliances. This connector is sometimes referred to as a "Mickey Mouse" connector due to the shape of the connector looking similar to the kids television show character.

For help finding a product or for product additional product information , call us at (860) 763-2100 or email sales@worldcordsets.com


Part Number
Length
Current (Amps)
Voltage (Volts)
Connector (Female)
Plug (Male)
Cordage
Availability
1+
10+
100+
  • 1 Foot
  • 10 Amps
  • 125 volts
  • IEC 60320 C5 Photo of IEC 60320 C5
  • NEMA 5-15P Photo of NEMA 5-15P
  • 18awg-3c SVT
1 Foot
10 Amps
125 volts
IEC 60320 C5
NEMA 5-15P
18awg-3c SVT

1+ :

10+ :

100+ :

  • 3 Feet
  • 10 Amps
  • 125 volts
  • IEC 60320 C5 Photo of IEC 60320 C5
  • NEMA 5-15P Photo of NEMA 5-15P
  • 18awg-3c SVT
3 Feet
10 Amps
125 volts
IEC 60320 C5
NEMA 5-15P
18awg-3c SVT

1+ :

10+ :

100+ :

  • 6 Feet
  • 10 Amps
  • 125 volts
  • IEC 60320 C5 Photo of IEC 60320 C5
  • NEMA 5-15P Photo of NEMA 5-15P
  • 18awg-3c SVT
6 Feet
10 Amps
125 volts
IEC 60320 C5
NEMA 5-15P
18awg-3c SVT

1+ :

10+ :

100+ :

  • 10 Feet
  • 10 Amps
  • 125 volts
  • IEC 60320 C5 Photo of IEC 60320 C5
  • NEMA 5-15P Photo of NEMA 5-15P
  • 18awg-3c SVT
10 Feet
10 Amps
125 volts
IEC 60320 C5
NEMA 5-15P
18awg-3c SVT

1+ :

10+ :

100+ :

  • 15 Feet
  • 10 Amps
  • 125 volts
  • IEC 60320 C5 Photo of IEC 60320 C5
  • NEMA 5-15P Photo of NEMA 5-15P
  • 18awg-3c SVT
15 Feet
10 Amps
125 volts
IEC 60320 C5
NEMA 5-15P
18awg-3c SVT

1+ :

10+ :

100+ :



Specifications of NEMA 5-15P to IEC 60320 C5 Power Cords

Current (Amps)
Voltage (Volts)
Connector (Female)
Plug (Male)
Approvals
Certifications
Country of Origin
Color

NEMA 5-15P

NEMA 5-15P

General Information:

The NEMA 5-15P is a 3 Wire grounded plug featuring two blades (can be equal or unequal widths due to the ground pin forcing polarity) and one ground pin rated up to 125V AC and 15 Amps. The ground pin can be either a rounded shape or a U Shape depending on the manufacturer, but both are functionally the same. The NEMA 5-15P is your standard household plug used for to connect small appliances such as TV's, Microwaves, hairdryers, etc to a wall outlet. The NEMA 5-15P is compatible with a NEMA 5-20R T-Slot outlet, which is commonly found in new home installations.

What does a NEMA 5-15P Connect to?





NEMA 5-15R


5-20R Outlet

The NEMA 5-15 Plug connects to both the NEMA 5-15R Connector and the NEMA 5-15/5-20R Wall Outlet. The connector is commonly found on Extension cords, and the NEMA 5-15/5-20R Wall Outlet is the standard power supply outlet in all residential and commercial construction in North America.




IEC 60320 C5 CONNECTOR (FEMALE)

IEC 60320 C5 CONNECTOR (FEMALE)

General Information:

The IEC 60320 C5 is a grounded 3 Wire connector rated up to 250V and 2.5 Amps Internationally or 125V and 10 Amps in North America. The C5 mates with a C6 inlet, and is commonly used for laptop power supplies, projectors, and some televisions. Being slightly smaller in size than the C13, the C5 can be a good choice for smaller appliances. This connector is sometimes referred to as a "Mickey Mouse" connector due to the shape of the connector looking similar to the kids television show character.


What does the IEC 60320 C5 Connect to?



IEC 60320 C6 InletThe IEC 60320 C5 connector is designed to connect to the IEC 60320 C6 Inlet. This inlet is commonly found on low power drawing equipment like computer monitors. It is also found on small power adapter blocks for devices requiring under 2.5 Amps.


White Label Shipping

White Label Shipping

Are you a reseller looking for Blind or White Label Drop Shipping? We offer both! During checkout simply select "Blind Shipping", then either upload your own packing slip, or, upload your logo and part numbers into ours. You will receive automated tracking emails as soon as your order has been packed so you can keep your customer up to date in realtime. Blind drop shipping has never been easier. Contact us today!

Manufactured Under ISO: 9001

Manufactured Under ISO: 9001

Our power cord sets are manufactured under an ISO 9001 quality management system to ensure that you get the same outstanding quality with on every order you place.
All of our NorthAmerican use Power Cord Sets are UL listed under E503529. This means that you can be sure that all of our power cord sets are of the highest quality and are certified for use in the United States.

UL Listed : E503526

UL Listed : E503526

World Cord Sets strives to deliver the best quality products for the lowest cost, to show our commitment to quality and our understanding of customers expectation for consistence of quality we obtained the UL certification. All of our North American use Power Cord Sets are UL listed under E503529. This means that you can be sure that all of our power cord sets are of the highest quality and are certified for use in the United States.

Lifetime Warranty

Lifetime Warranty

Why do we offer a lifetime warranty?

We offer a lifetime warranty because we know that it won't have to be used. Our products are manufactured using only the highest quality components, and, undergo rigorous quality assurance inspections and testing to ensure all of our products meet our exacting standards. Our lifetime warranty gives you peace of mind that your purchase is 100% guaranteed to work.


What does the warranty cover?

All cords, cables, patch panels, and adapters sold on this website in original unmodified condition are covered under this warranty. Warranty does not cover damage caused by misuse.


How does the warranty work?

To use the lifetime warranty, simply request an RMA and send your defective material back to us and we will either repair or replace the goods and return them back to you in working condition.

Documents & Drawings
