Black IEC 60320 C20 to C21 Power Cords

Black IEC 60320 C20 to C21 Power Cords

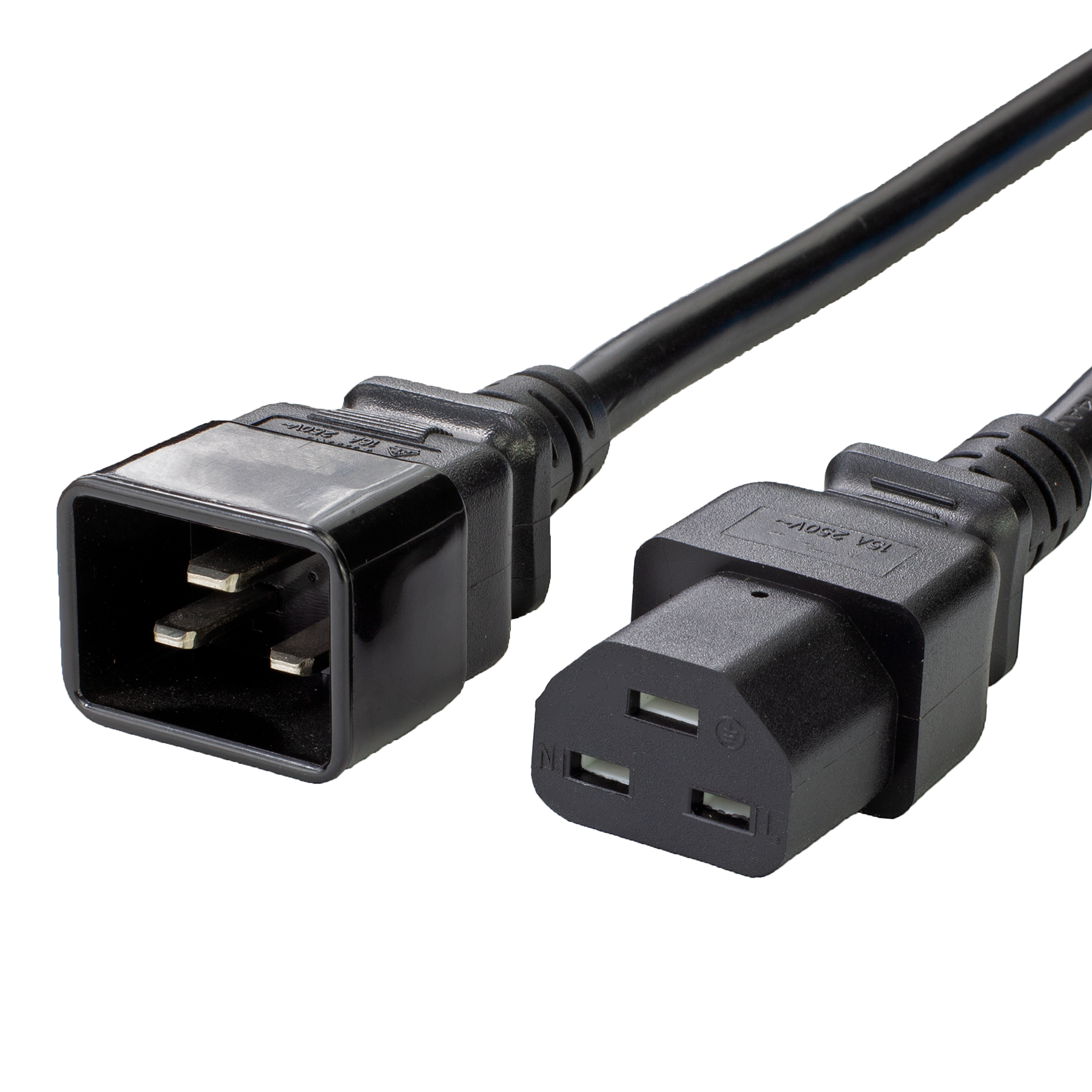

IEC 60320 C20 to C21 Power Cords - BLACK

IEC 60320 C20 CONNECTOR (MALE) - CLASS I COLD

The IEC 60320 C20 is a grounded 3 Wire Plug rated up to 250V and 20 Amps. The C20 mates with a C19 outlet, typically found on Data Center/IT specific PDUs (Power Distribution Unit). The most common configuration for a C20 is in a jumper cable scenario, providing power from a PDU to a blade server chassis, high powered server, large network router, or similar device.

IEC 60320 C21 CONNECTOR (FEMALE) - CLASS I VERY HOT

The IEC 60320 C21 is a grounded 3 Wire connector rated up to 250V and 20 Amps. The C21 mates with a C22 or C20 inlet, and is commonly used in a jumper cable scenario in IT Installations providing power from a PDU to a server, router, switch or other computing device. The C21 is a HIGH TEMPERATURE version of the C19 connector, with a maximum pin temperature of 155°C instead of the standard 65°C of a C19, and is typically used in high powered blade servers, large network routers, and other IT equipment that draws more power than a standard C13 can accommodate.

For help finding a product or for product additional product information , call us at (860) 763-2100 or email sales@worldcordsets.com


Part Number
Length
Current (Amps)
Voltage (Volts)
Connector (Female)
Plug (Male)
Availability
1+
10+
100+
  • 3 Feet
  • 20 Amps
  • 250 volts
  • IEC 60320 C21 Photo of IEC 60320 C21
  • IEC 60320 C20 Photo of IEC 60320 C20
3 Feet
20 Amps
250 volts
IEC 60320 C21
IEC 60320 C20

1+ :

10+ :

100+ :

  • 4 Feet
  • 20 Amps
  • 250 volts
  • IEC 60320 C21 Photo of IEC 60320 C21
  • IEC 60320 C20 Photo of IEC 60320 C20
4 Feet
20 Amps
250 volts
IEC 60320 C21
IEC 60320 C20

1+ :

10+ :

100+ :

  • 6 Feet
  • 20 Amps
  • 250 volts
  • IEC 60320 C21 Photo of IEC 60320 C21
  • IEC 60320 C20 Photo of IEC 60320 C20
6 Feet
20 Amps
250 volts
IEC 60320 C21
IEC 60320 C20

1+ :

10+ :

100+ :

  • 8 Feet
  • 20 Amps
  • 250 volts
  • IEC 60320 C21 Photo of IEC 60320 C21
  • IEC 60320 C20 Photo of IEC 60320 C20
8 Feet
20 Amps
250 volts
IEC 60320 C21
IEC 60320 C20

1+ :

10+ :

100+ :

  • 10 Feet
  • 20 Amps
  • 250 volts
  • IEC 60320 C21 Photo of IEC 60320 C21
  • IEC 60320 C20 Photo of IEC 60320 C20
10 Feet
20 Amps
250 volts
IEC 60320 C21
IEC 60320 C20

1+ :

10+ :

100+ :

  • 15 Feet
  • 20 Amps
  • 250 volts
  • IEC 60320 C21 Photo of IEC 60320 C21
  • IEC 60320 C20 Photo of IEC 60320 C20
15 Feet
20 Amps
250 volts
IEC 60320 C21
IEC 60320 C20

1+ :

10+ :

100+ :



Specifications of IEC 60320 C20 C21 Power Cords

Current (Amps)
Voltage (Volts)
Connector (Female)
Plug (Male)
Cordage
Approvals
Certifications
Country of Origin
Color

IEC 60320 C20 PLUG (MALE)

IEC 60320 C20 PLUG (MALE)

General Information:

The IEC 60320 C20 is a grounded 3 Wire Plug rated up to 250V and 20 Amps. It is commonly used with either 14awg or 12awg conductors, depending on the application and the power draw required for the device. The most common configuration for a C20 is in a jumper cable scenario, providing power from a PDU to a blade server chassis, high powered server, large network router, or similar device. The C20 is used in applications where the most common IEC320 plug, the C14 will not provide enough power. This plug is rated for temperatures up to 65*C. For applications where the temperature of the equipment exceeds 65 degree C, we recommend using the high tempature version: The IEC 60320 C22 High Temperature plug, which is rated for temperatures up to 155*C.


What does the IEC 60320 C20 Plug into?




IEC 60320 C19 Connector
IEC 60320 C19 Outlet
The IEC 60320 type C20 Plug is designed to connect to a standard IEC 320 C19 connector or Outlet. The connector is commonly found on power cords, and the outlet is commonly found on Power Distribution units.


IEC 60320 C21 CONNECTOR (FEMALE)

IEC 60320 C21 CONNECTOR (FEMALE)

General Information:

The IEC 60320 C21 is a grounded 3 Wire connector rated up to 250V and 20 Amps. The C21 mates with a C22 or C20 inlet, and is commonly used in a jumper cable scenario in IT Installations providing power from a PDU to a server, router, switch or other computing device. The C21 is a HIGH TEMPERATURE version of the C19 connector, with a maximum pin temperature of 155°C instead of the standard 65°C of a C19, and is typically used in high powered blade servers, large network routers, and other IT equipment that draws more power than a standard C13 can accommodate. The corners are beveled so that a standard C19 cannot be plugged into the C22 Inlet since it is not high temperature rated and could be a fire hazard.




What does the IEC 60320 C21 Connect to?




IEC 60320 C22 InletThe IEC 60320 C21 connectors is designed to connect to the IEC 60320 C22 Inlet, which is commonly found on high powered IT Equipment that exceeds the standard 65*C Temperature rating of a C20 Inlet. These inlets are found on switches and routers.


White Label Shipping

White Label Shipping

Are you a reseller looking for Blind or White Label Drop Shipping? We offer both! During checkout simply select "Blind Shipping", then either upload your own packing slip, or, upload your logo and part numbers into ours. You will receive automated tracking emails as soon as your order has been packed so you can keep your customer up to date in realtime. Blind drop shipping has never been easier. Contact us today!

Manufactured Under ISO: 9001

Manufactured Under ISO: 9001

Our power cord sets are manufactured under an ISO 9001 quality management system to ensure that you get the same outstanding quality with on every order you place.
All of our NorthAmerican use Power Cord Sets are UL listed under E503529. This means that you can be sure that all of our power cord sets are of the highest quality and are certified for use in the United States.

UL Listed : E503526

UL Listed : E503526

World Cord Sets strives to deliver the best quality products for the lowest cost, to show our commitment to quality and our understanding of customers expectation for consistence of quality we obtained the UL certification. All of our North American use Power Cord Sets are UL listed under E503529. This means that you can be sure that all of our power cord sets are of the highest quality and are certified for use in the United States.

Lifetime Warranty

Lifetime Warranty

Why do we offer a lifetime warranty?

We offer a lifetime warranty because we know that it won't have to be used. Our products are manufactured using only the highest quality components, and, undergo rigorous quality assurance inspections and testing to ensure all of our products meet our exacting standards. Our lifetime warranty gives you peace of mind that your purchase is 100% guaranteed to work.


What does the warranty cover?

All cords, cables, patch panels, and adapters sold on this website in original unmodified condition are covered under this warranty. Warranty does not cover damage caused by misuse.


How does the warranty work?

To use the lifetime warranty, simply request an RMA and send your defective material back to us and we will either repair or replace the goods and return them back to you in working condition.

Documents & Drawings
