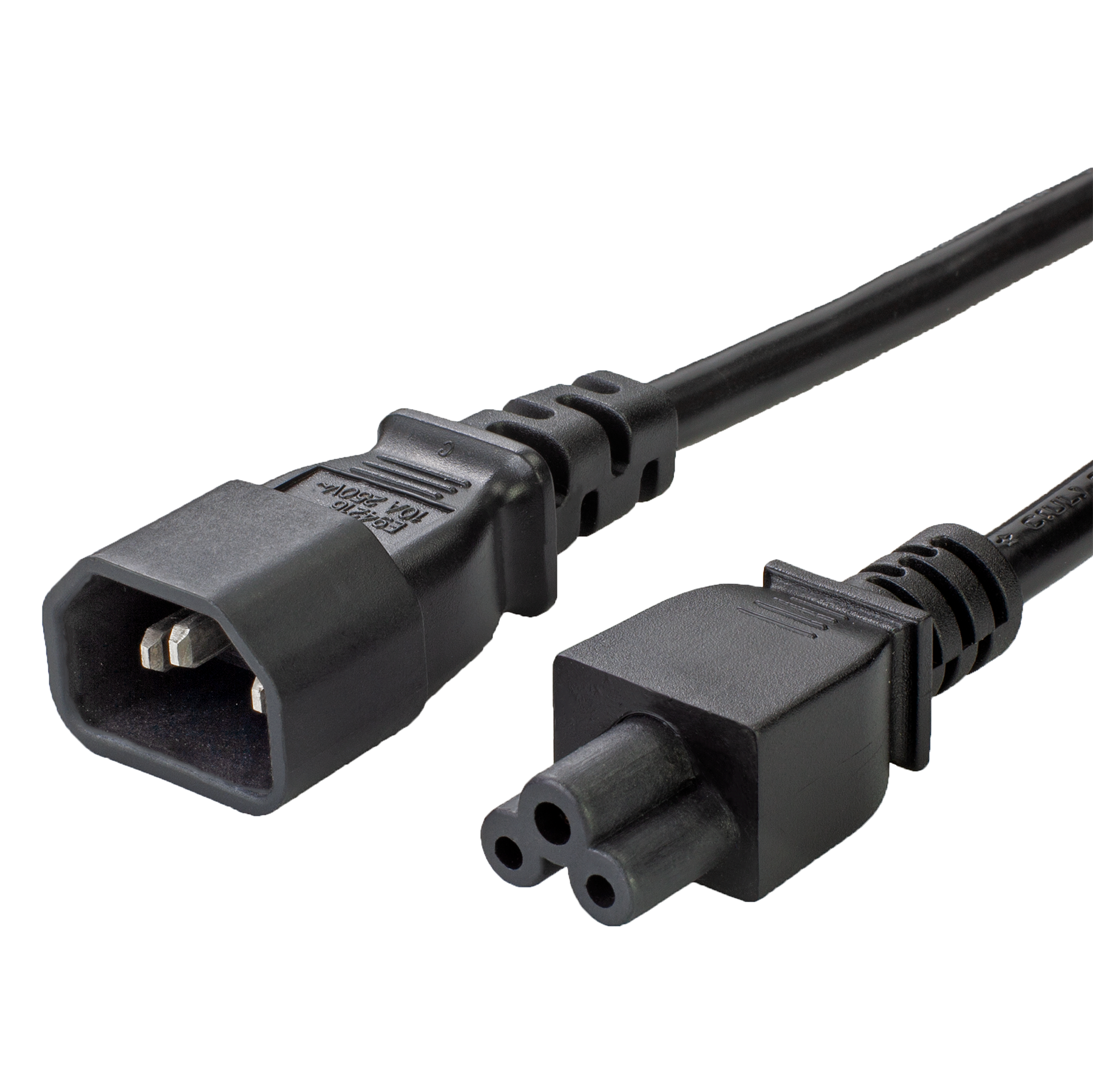

Black C14 to C5 2.5A 250V Power Cord with LSZH cordage

Black C14 to C5 2.5A 250V Power Cord with LSZH cordage

Black C14 to C5 2.5A 250V Power Cord with LSZH cordage


IEC 60320 C14 C5 "Mickey Mouse" Power Cords utilizing LOW SMOKE ZERO HALOGEN cordage (BSI, HAR, ROHS, IEC, HD21.14, BS EN 50525-3-11). For installation where fire, smoke emission and toxic fumes create a potential threat to life and equipment. Some abbreviations of this cordage include: LSZH, LS0H, LSOH, LSFH, 0HLS, OHLS.


For other ampere ratings or cordages, see our main C14 to C5 Power Cords page.



Order online by clicking a product below, or, call us at (860) 763-2100 or email sales@worldcordsets.com


Part Number
Length
Current (Amps)
Voltage (Volts)
Connector (Female)
Plug (Male)
Availability
1+
10+
100+
Add All To Cart
  • 2.0 meters
  • 2.5 Amps
  • 250 volts
  • IEC 60320 C5
  • IEC 60320 C14
2.0 meters
2.5 Amps
250 volts
IEC 60320 C5
IEC 60320 C14


  • Product Information
  • Documents & Downloads
  • Submit a Request
  • Q & A

Need help? Ask the experts!

With over 30 years of experience in the power and data industry, we have the expertise to help you find exactly what you are looking for. We're more than just an online store, we have experts in the power and data industry that can help you online, over the phone, or via email.


  • Have a request from a customer and not sure what you need? Let us quote it for you!

  • Looking for a specific product and can't find it? Let us find it for you!

  • Need a question answered quickly? Live Chat with us!


860.763.2100 or Ask us a Question


Product Warranty

At WoCo, we are committed to providing you with quality products, and that is backed up by our 1 Year product warranty. If there are any defects due to workmanship, World Cord Sets will accept liability for the purchase price of the goods and associated freight charges to provide a full refund to the customer.


Committment to Quality

Providing high quality, affordable products and solutions is a cornerstone of what we do at World Cord Sets. All products we sell have passed our internal quality assurance standards. Most products sold (unless otherwise noted) pass industry standard certifications such such as RoHS, REACH, CE, UL, cUL, and many other international standards. You can find the list of standards and approvals for a product in the specifications section.


IEC 60320 C14 CONNECTOR (MALE)

  • The IEC 60320 C14 is a grounded 3 Wire Plug rated up to 250V and 15 Amps. The C14 mates with a C13 outlet, typically found on Data Center/IT specific PDUs (Power Distribution Unit). The IEC 60320 C14 is typically used with either 18awg SVT, 18awg SJT(OW), 16awg SJT(OW) or 14awg SJT(OW). The types of cordages used will change the rating of the overall cord set.

IEC 60320 C5 CONNECTOR (FEMALE)

  • The IEC 60320 C5 is a grounded 3 Wire connector rated up to 250V and 2.5 Amps Internationally or 125V and 10 Amps in North America. The C5 mates with a C6 inlet, and is commonly used for laptop power supplies, projectors, and some televisions. Being slightly smaller in size than the C13, the C5 can be a good choice for smaller appliances. This connector is sometimes referred to as a "Mickey Mouse" connector due to the shape of the connector looking similar to the kids television show character.

White Label Shipping

Are you a reseller looking for Blind or White Label Drop Shipping? We offer both! During checkout simply select "Blind Shipping", then either upload your own packing slip, or, upload your logo and part numbers into ours. You will receive automated tracking emails as soon as your order has been packed so you can keep your customer up to date in realtime. Blind drop shipping has never been easier.

Manufactured Under ISO: 9001

Our power cord sets are manufactured under an ISO 9001 quality management system to ensure that you get the same outstanding quality with on every order you place.
C14-RA
Warning : This component may be in use for other products, categories, or product-lines. Editing will affect the component everywhere it is used.                      x                    Choose Image    FullscreenBoldItalicUnderlineStrikethroughSubscriptSuperscriptFont FamilyArialGeorgiaImpactTahomaTimes New RomanVerdanaFont Size89101112141824303648607296ColorsInline StyleBig RedSmall BlueParagraph StyleGrayBorderedSpacedUppercaseParagraph FormatNormalHeading 1Heading 2Heading 3Heading 4CodeAlignAlign LeftAlign CenterAlign RightAlign JustifyOrdered ListUnordered ListDecrease IndentIncrease IndentQuoteIncreaseDecreaseInsert LinkInsert ImageInsert VideoUpload FileInsert TableEmoticonsΩSpecial CharactersInsert Horizontal LineSelect AllClear FormattingPrintHelpCode ViewUndoRedoAll of our NorthAmerican use Power Cord Sets are UL listed under E503529. This means that you can be sure that all of our power cord sets are of the highest quality and are certified for use in the United States.

UL Listed : E503526

All of our NorthAmerican use Power Cord Sets are UL listed under E503529. This means that you can be sure that all of our power cord sets are of the highest quality and are certified for use in the United States.

Lifetime Warranty

Why do we offer a lifetime warranty?

We offer a lifetime warranty because we know that it won't have to be used. Our products are manufactured using only the highest quality components, and, undergo rigorous quality assurance inspections and testing to ensure all of our products meet our exacting standards. Our lifetime warranty gives you peace of mind that your purchase is 100% guaranteed to work.


What does the warranty cover?

All cords, cables, patch panels, and adapters sold on this website in original unmodified condition are covered under this warranty. Warranty does not cover damage caused by misuse.


How does the warranty work?

To use the lifetime warranty, simply request an RMA and send your defective material back to us and we will either repair or replace the goods and return them back to you in working condition.

Low Smoke Zero Halogen - General Information

Why Low Smoke Zero Halogen?


Standard power cable jackets are made from a PVC compound containing Chlorine (part of the Halogen Group), which, when burned release a toxic gas that can cause serious damage to humans and electrical equipment. This raises concerns in applications that have dense PVC cabling where electrical equipment or people are present. Low Smoke Zero Halogen, also known as Low Smoke Free of Halogen or (LSZH, LSOH, LS0H, OHLS) refers to the cable jacketing which is composed of thermoplastics/thermoset compounds that release limited smoke and no halogens when exposed to high heat/fire. This cordage was initially invented to solve two main problems: reduce smoke/improve visibility in an emergency fire escape situation and reduce toxins being released in such a fire that could harm victims exposed. This cordage is generally used where there is limited ventilation or where set standards require such health/safety measures.  You can find the amount of halogen contained in typical LSZH Cable in Table 2 below.


Common Abbreviations and Terms for Low Smoke Zero Halogen


TERM/ABBREVIATION
MEANING
LSZH
Low Smoke Zero Halogen
LSF
Low Smoke/Fume
LS0H
Low Smoke Zero Halogen
LSHF
Low Smoke Halogen Free
LSNH
Low Smoke No Halogen
NHFR
NonHalogen Flame Retardant
HFFR
Halogen Free Flame Retardant
FRNC
Fire Retardant, Non-Corrosive
LS
Low/Limited Smoke
ST
Smoke Test
FRLS
Fire Resistant, Low Smoke
RE
Reduced Emissions
LC
Low Corrosivity
LH
Low Halogen

Table 1: Low Smoke Zero Halogen Terms and Abbreviations



Halogen Content in Standard Wire & Cable Polymers


Using the table below, you can see that standard PVC cables contain vastly greater amounts halogen contents that any of the LSZH polymers.


PolymerHalogen Content % by Weight
PU (polyurethane)
<.02
EPR (Ethylene propylene rubber)<.02
PE (polyethylene)<.02
XLP (Cross-Linked Polyethylene)
<.02
CSPE (chlorosulfonated polyethylene)

13-26
CPE (chlorinated polyethylene)

14-28
PVC (polyvinyl chloride)22-29
FEP (fluorinated ethylene propylene)

62-78

Table 2: Halogen Content in Typical Wire & Cable Polymers


When should I use LSZH cabling?


Low Smoke Zero Halogen cabling is usually used in regulated industries such as government. New data centers are sometimes choosing to use LSZH cabling to help protect data center facilities from the harmful smoke in case of fire. Because data centers utilize large ventilation systems, even a small amount of smoke in a small area can quickly be distributed accidentally throughout the entire building through the ventilation systems. A side note is the National Electrical Code requires cables used in plenum spaces to be Low Smoke Emitting, which is another common usage of this cordage. Refer to the National Electrical Code(NEC), or the National Fire Protection Agency(NFPA) to determine if LSZH cordage is right for you.
