Switzerland SEV 1011 3 Prong - 10 Amp
The Switzerland SEV 1011 standard 3 pin 10 amp . Available with open, IEC60320 C5, C13, C15, and SEV1011 connectorCords are manufactured in compliance with Swiss SEV 1011 standards. ESTI agency approvals and certifications are available. The pins are 19 mm long and 4 mm in diameter. The female connector SEV1011 accepts the Europlug CEE7/16, but will be un-grounded.
Open Ended (Whips, Pigtails, ROJ Strip)
The open end of a power supply cord is hard wired to another device, providing power either to our from that device. Unless otherwise noted, our power supply cords come standard with a 2" ROJ (Remove Outer Jacket) and a 1/4" Strip. The ROJ length determines the length of the individual conductors, and the Strip length determines the amount of copper exposed on the end of each conductor. If you require a custom ROJ or Strip length, please don't hesitate to reach out to us.
International Color Code(ICC) vs. North American Color Code(NACC)
For the majority of our customers, the color code used for the cordage is negligible. However, for OEM customers, or customers dealing with government installations or projects that have highly specified cords the color code used will be important to establish. Our standard color code for our Cut/ Remove of Outer Jacket/ Strip Conductor Job is North American Color Code (NACC).
|Line/ Hot Color
|International Color Code (ICC)
Green & Yellow
|North American Color Code (NACC)
Switzerland SEV 1011 3-Pin (M) Type J
The Switzerland SEV 1011 3-Pin (M) Type J is a 2 pole, grounded plug rated at 250V that we offer in 10A and 16A applications. The load pins both are partially insulated for safety
IEC 60320 C5 CONNECTOR (FEMALE)
The IEC 60320 C5 is a grounded 3 Wire connector rated up to 250V and 2.5 Amps Internationally or 125V and 10 Amps in North America. The C5 mates with a C6 inlet, and is commonly used for laptop power supplies, projectors, and some televisions. Being slightly smaller in size than the C13, the C5 can be a good choice for smaller appliances. This connector is sometimes referred to as a "Mickey Mouse" connector due to the shape of the connector looking similar to the kids television show character.
What does the IEC 60320 C5 Connect to?
|The IEC 60320 C5 connector is designed to connect to the IEC 60320 C6 Inlet. This inlet is commonly found on low power drawing equipment like computer monitors. It is also found on small power adapter blocks for devices requiring under 2.5 Amps.
IEC 60320 C13 CONNECTOR (FEMALE)
The IEC 60320 C13 is a grounded 3 Wire connector rated up to 250V and 15 Amps. The C13 mates with a C14 inlet, and is commonly used in a jumper cable scenario in IT Installations providing power from a PDU to a server, router, switch or other computing device. Most people know the C13 as 'the thing that plugs into my computer' because it is the standard connector used to power most desktop computers. In a desktop computer application, the most common cable is the NEMA 5-15P to C13, which connects your standard North American wall outlet to a desktop computer. The iec 320 c13 c14 plug and connector are synonymous with Information Technology equipment primarily, but the C13 can be found powering equipment like medical devices and gaming consoles.
What does the IEC 60320 C13 Connect to?
|The IEC 320 type C13 connector is designed to connect to the IEC 320 C14 plug and inlet. The C14 Plug is commonly found on power cords located in office, commercial or data center settings since the C13 inlet is usually only found in those environments. The C14 Inlet is commonly found on a variety of IT Equipment like monitors, switches, printers, power adapters, and more.

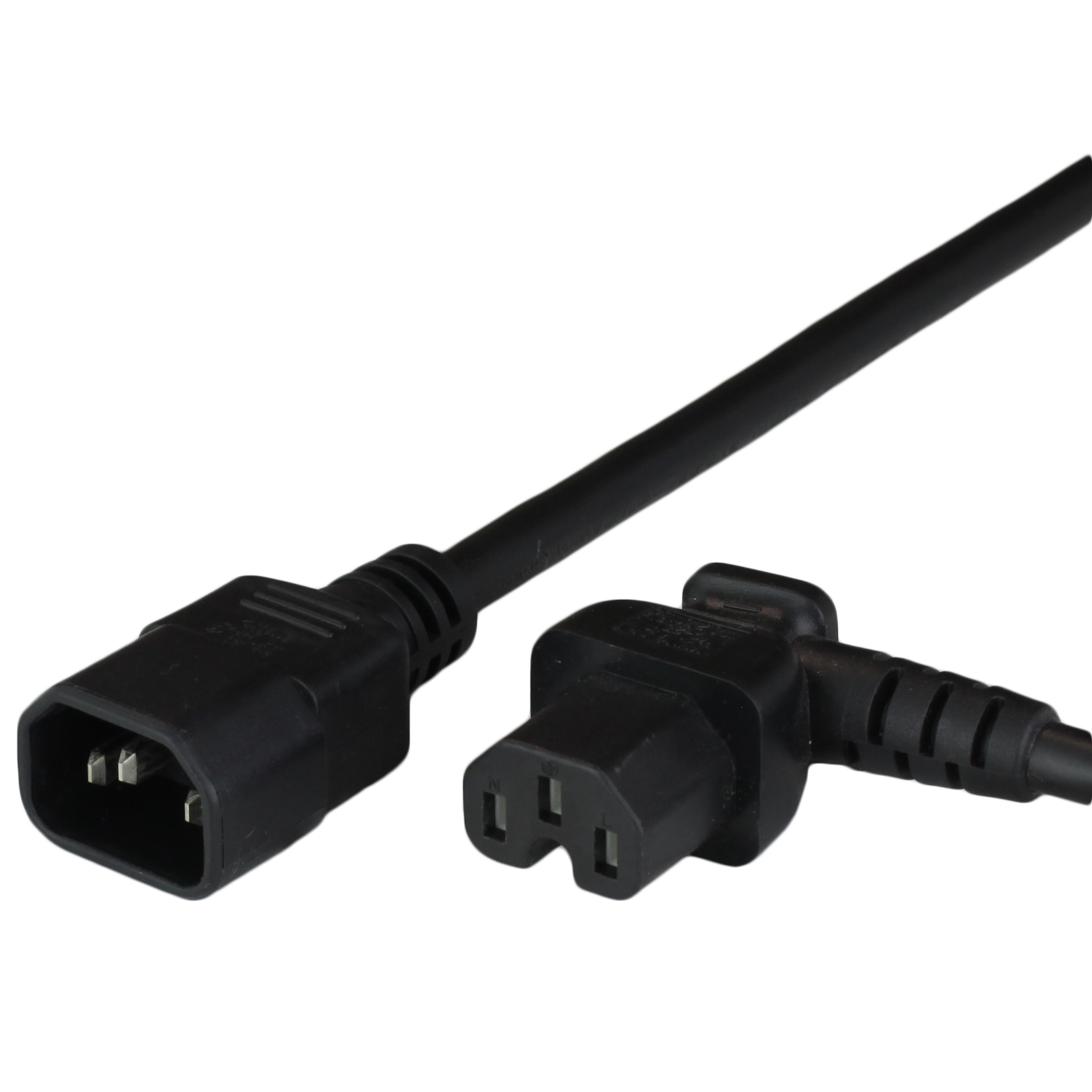

IEC 60320 C15 CONNECTOR (FEMALE)
The IEC 60320 C15 is a grounded 3 Wire connector rated up to 250V & 10 Amps Internationally and 125V/250V & 15 Amps in North America. The C15 mates with a C16 inlet and can also be down graded to a C14 Inlet. C14 Inlet and is commonly used in IT Installations providing power from a PDU to a server, router, switch or other computing device. The C15 is a HIGH TEMPERATURE connector rated up to 120°C, unlike the 70°C rating of the C13. The C15 is commonly used in in electric kettles and other household appliances that involve higher temperatures than a normal C13 is made to withstand. There is a dimple located below the ground pin to ensure that the standard C13 connector cannot be plugged into the C16 Inlet which is used on high temperature applications. This design is utilized to allow this C15 connector to be used on both high temperature applications and standard applications, as to not limit the user. The C15 connector is commonly used with 18awg SJT(OW), 16awg SJT(OW), and 14awg SJT(OW).
What does the IEC 60320 C15 Connect to?
|The IEC 60320 type C15 connector is designed to plug into the high temperature rated IEC 320 C16 Inlet. This inlet is commonly found on high performance IT Equipment that reaches heats that exceed the rating of the standard IEC C13 connector. This inlet is designed to reach temperatures up to 120*C. The C15 can also be plugged into a standard non-high temp application C14 Inlet, which is located on a wide variety of IT Equipment like computer monitors and switches.
