Black 15A C14 C15 Power Cords

Black 15A C14 C15 Power Cords

IEC 60320 15A C14 to C15 Black Power Cords are available in many standard stock lengths. The C15 is a HIGH TEMPERATURE connector. The maximum pin temperature of the appliance inlet is 120C for the C15. Standard color is black. Standard jacket type is SJT. Standard gauge is 14awg. Standard approvals are UL, CSA (c-UL-us).


Looking for another cordage, color, angle, or ampere rating? See out main IEC 60320 C14 to C15 Power Cord page!

For help finding a product or for product additional product information , call us at (860) 763-2100 or email sales@worldcordsets.com

Click below to view other colors


Part Number
Length
Current (Amps)
Voltage (Volts)
Connector (Female)
Plug (Male)
Availability
1+
10+
100+
  • 1 Foot
  • 15 Amps
  • 250 volts
  • IEC 60320 C15 Photo of IEC 60320 C15
  • IEC 60320 C14 Photo of IEC 60320 C14
1 Foot
15 Amps
250 volts
IEC 60320 C15
IEC 60320 C14

1+ :

10+ :

100+ :

  • 2 Feet
  • 15 Amps
  • 250 volts
  • IEC 60320 C15 Photo of IEC 60320 C15
  • IEC 60320 C14 Photo of IEC 60320 C14
2 Feet
15 Amps
250 volts
IEC 60320 C15
IEC 60320 C14

1+ :

10+ :

100+ :

  • 3 Feet
  • 15 Amps
  • 250 volts
  • IEC 60320 C15 Photo of IEC 60320 C15
  • IEC 60320 C14 Photo of IEC 60320 C14
3 Feet
15 Amps
250 volts
IEC 60320 C15
IEC 60320 C14

1+ :

10+ :

100+ :

  • 4 Feet
  • 15 Amps
  • 250 volts
  • IEC 60320 C15 Photo of IEC 60320 C15
  • IEC 60320 C14 Photo of IEC 60320 C14
4 Feet
15 Amps
250 volts
IEC 60320 C15
IEC 60320 C14

1+ :

10+ :

100+ :

  • 5 Feet
  • 15 Amps
  • 250 volts
  • IEC 60320 C15 Photo of IEC 60320 C15
  • IEC 60320 C14 Photo of IEC 60320 C14
5 Feet
15 Amps
250 volts
IEC 60320 C15
IEC 60320 C14

1+ :

10+ :

100+ :

  • 6 Feet
  • 15 Amps
  • 250 volts
  • IEC 60320 C15 Photo of IEC 60320 C15
  • IEC 60320 C14 Photo of IEC 60320 C14
6 Feet
15 Amps
250 volts
IEC 60320 C15
IEC 60320 C14

1+ :

10+ :

100+ :

  • 7 Feet
  • 15 Amps
  • 250 volts
  • IEC 60320 C15 Photo of IEC 60320 C15
  • IEC 60320 C14 Photo of IEC 60320 C14
7 Feet
15 Amps
250 volts
IEC 60320 C15
IEC 60320 C14

1+ :

10+ :

100+ :

  • 8 Feet
  • 15 Amps
  • 250 volts
  • IEC 60320 C15 Photo of IEC 60320 C15
  • IEC 60320 C14 Photo of IEC 60320 C14
8 Feet
15 Amps
250 volts
IEC 60320 C15
IEC 60320 C14

1+ :

10+ :

100+ :

  • 9 Feet
  • 15 Amps
  • 250 volts
  • IEC 60320 C15 Photo of IEC 60320 C15
  • IEC 60320 C14 Photo of IEC 60320 C14
9 Feet
15 Amps
250 volts
IEC 60320 C15
IEC 60320 C14

1+ :

10+ :

100+ :

  • 10 Feet
  • 15 Amps
  • 250 volts
  • IEC 60320 C15 Photo of IEC 60320 C15
  • IEC 60320 C14 Photo of IEC 60320 C14
10 Feet
15 Amps
250 volts
IEC 60320 C15
IEC 60320 C14

1+ :

10+ :

100+ :

  • 12 Feet
  • 15 Amps
  • 250 volts
  • IEC 60320 C15 Photo of IEC 60320 C15
  • IEC 60320 C14 Photo of IEC 60320 C14
12 Feet
15 Amps
250 volts
IEC 60320 C15
IEC 60320 C14

1+ :

10+ :

100+ :

  • 15 Feet
  • 15 Amps
  • 250 volts
  • IEC 60320 C15 Photo of IEC 60320 C15
  • IEC 60320 C14 Photo of IEC 60320 C14
15 Feet
15 Amps
250 volts
IEC 60320 C15
IEC 60320 C14

1+ :

10+ :

100+ :

  • 25 Feet
  • 15 Amps
  • 250 volts
  • IEC 60320 C15 Photo of IEC 60320 C15
  • IEC 60320 C14 Photo of IEC 60320 C14
25 Feet
15 Amps
250 volts
IEC 60320 C15
IEC 60320 C14

1+ :

10+ :

100+ :



Specifications of 15A C15 C14 (UL cUL)

Current (Amps)
Voltage (Volts)
Connector (Female)
Plug (Male)
Cordage
Approvals
Certifications
Country of Origin
Color

White Label Shipping

White Label Shipping

Are you a reseller looking for Blind or White Label Drop Shipping? We offer both! During checkout simply select "Blind Shipping", then either upload your own packing slip, or, upload your logo and part numbers into ours. You will receive automated tracking emails as soon as your order has been packed so you can keep your customer up to date in realtime. Blind drop shipping has never been easier. Contact us today!

Manufactured Under ISO: 9001

Manufactured Under ISO: 9001

Our power cord sets are manufactured under an ISO 9001 quality management system to ensure that you get the same outstanding quality with on every order you place.
All of our NorthAmerican use Power Cord Sets are UL listed under E503529. This means that you can be sure that all of our power cord sets are of the highest quality and are certified for use in the United States.

IEC 60320 C14 PLUG (MALE)

IEC 60320 C14 PLUG (MALE)

General Information:

The IEC 60320 C14 is a grounded 3 Wire Plug rated up to 250V and 15 Amps. The C14 plug is one of the most commonly used plugs in the data center industry, especially the Inlet version, which is found on the vast majority of Information Technology devices that are produced today. The IEC 60320 C14 is typically used with either 18awg SVT, 18awg SJT(OW), 16awg SJT(OW) or 14awg SJT(OW). The types of cordages used will change the rating of the overall cord set. This plug is very common in consumer, commercial and industrial applications which can create many different names for this plug across different industries like the computer plug, IEC plug, and more generalized names. Some also refer to this as the iec C13 plug, or the c13 power plug because of the C13 connector that it mates with.

What does the IEC 60320 C14 plug into?




IEC 60320 C13 Connector
IEC 60320 C13 Outlet
The IEC 60320 C14 plug is designed to connect to the IEC 320 C13 connector and the outlet. The connector is found on a variety of 10-15A power cords, while the outlet is located on a variety of power supplies. The outlet is most commonly found on Power Distribution Units found in office, commercial, or data center settings as well as Power Adapter bricks.

UL Listed : E503526

UL Listed : E503526

World Cord Sets strives to deliver the best quality products for the lowest cost, to show our commitment to quality and our understanding of customers expectation for consistence of quality we obtained the UL certification. All of our North American use Power Cord Sets are UL listed under E503529. This means that you can be sure that all of our power cord sets are of the highest quality and are certified for use in the United States.

IEC 60320 C15 CONNECTOR (FEMALE)

IEC 60320 C15 CONNECTOR (FEMALE)

General Information:

The IEC 60320 C15 is a grounded 3 Wire connector rated up to 250V & 10 Amps Internationally and 125V/250V & 15 Amps in North America. The C15 mates with a C16 inlet and can also be down graded to a C14 Inlet. C14 Inlet and is commonly used in IT Installations providing power from a PDU to a server, router, switch or other computing device. The C15 is a HIGH TEMPERATURE connector rated up to 120°C, unlike the 70°C rating of the C13. The C15 is commonly used in in electric kettles and other household appliances that involve higher temperatures than a normal C13 is made to withstand. There is a dimple located below the ground pin to ensure that the standard C13 connector cannot be plugged into the C16 Inlet which is used on high temperature applications. This design is utilized to allow this C15 connector to be used on both high temperature applications and standard applications, as to not limit the user. The C15 connector is commonly used with 18awg SJT(OW), 16awg SJT(OW), and 14awg SJT(OW).

What does the IEC 60320 C15 Connect to?





IEC 60320 C14 Inlet
IEC 60320 C16 High Temperature InletThe IEC 60320 type C15 connector is designed to plug into the high temperature rated IEC 320 C16 Inlet. This inlet is commonly found on high performance IT Equipment that reaches heats that exceed the rating of the standard IEC C13 connector. This inlet is designed to reach temperatures up to 120*C. The C15 can also be plugged into a standard non-high temp application C14 Inlet, which is located on a wide variety of IT Equipment like computer monitors and switches.

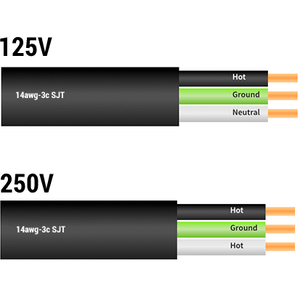

14awg-3c SJT Cordage with North American Color Code

14awg-3c SJT Cordage with North American Color Code

These cords feature 3 14awg conductors with North American Color Coding surrounded by a robust SJT (Service Junior Thermoplastic) outer jacket.


The maximum ampere rating for 14awg-3c cordage is 15A.


These cord sets can be used in either 125V circuits, or, 250V circuits as shown on the left. When used in 125V circuits, there is one Hot conductor, the green Ground conductor, and one Neutral conductor. When used in 250V circuits, there are two Hot conductors, and the green Ground conductor.


It is very important that you ensure the device you are plugging this cordset into can handle the voltage supplied by the power source. For example, if you connect this power cord set to a device rated for 125V, and a power source rated for 250V, you are going to fry the device as this cord set DOES NOT CHANGE VOLTAGE.


General Information about 15A C14 to C15 Power Cord Sets

Our 15A C14-C15 power cord sets are manufactured with 3 14awg conductors covered in a robust SJT outer jacket. C14 C15 power cord sets are commonly found in data centers and IT installations to provide power from a PDU with a C13 outlet, to a server, router, switch, or other IT device with a C16 inlet.


Our 15A C14-C15 power cord sets come in many different colors to make it simply to color code your installation. Many data centers choose to use colors to help identify the different circuits that are providing power to a specific rack. For example, RED power cords might be used to identify the primary circuit, and BLUE might be used to identify the second circuit. However, each data center and company have their own color coding methods.


World Cord Sets stocks 15A C14-C15 cord sets in many different standard stock lengths from 1FT - 15FT. However, the most common lengths are 3FT and 6FT.

Not what you're looking for?

Not what you are looking for? Please see below for alternative and similar options to our 10A C14 to C13 cord sets.


Looking for Angled C14 to C15 Cords?

Angled C14 to C15 Power Cords



Wrong Ampere/Gauge?

Wrong Male End?

C20 to C15 Power Cord Sets - C20 to C15 cord sets are used to connect a C19 outlet to a C14 inlet.


Wrong Female End?

C14 to C5 Power Cord Sets - C14 to C5 cord sets are used to connect a C13 outlet to a C6 inlet. Rated either 2.5A or 10A

C14 to C7 Power Cord Sets - C14 to C17 cord sets are used to connect a C13 outlet to a C8 inlet. Rated 2.5A

C14 to C15 (similar to C13 but with a notch) Power Cord Sets - C14 to C15 cord sets are similar to a C14-C13 cord sets, differing only with a notch on the C15. These are available in 10A, 13A, or 15A configurations.

C14 to C19 Power Cord Sets - C14 to C19 cord sets are used to connect a C13 outlet to a C20 inlet. Rated at 15A with 14awg cordage.

C14 to C21 Power Cord Sets - C14 to C21 cord sets are used to connect a C13 outlet to a C22 inlet. Rated at 15A with 14awg cordage.

C14 to NEM 5-15R Power Cord Sets - C13 to NEMA 5-15R cord sets are used as an adapter to convert a C13 outlet to a NEMA 5-15R outlet.
