10A NEMA 5-15P to IEC60320 C13 RIGHT ANGLE

10A NEMA 5-15P to IEC60320 C13 RIGHT ANGLE

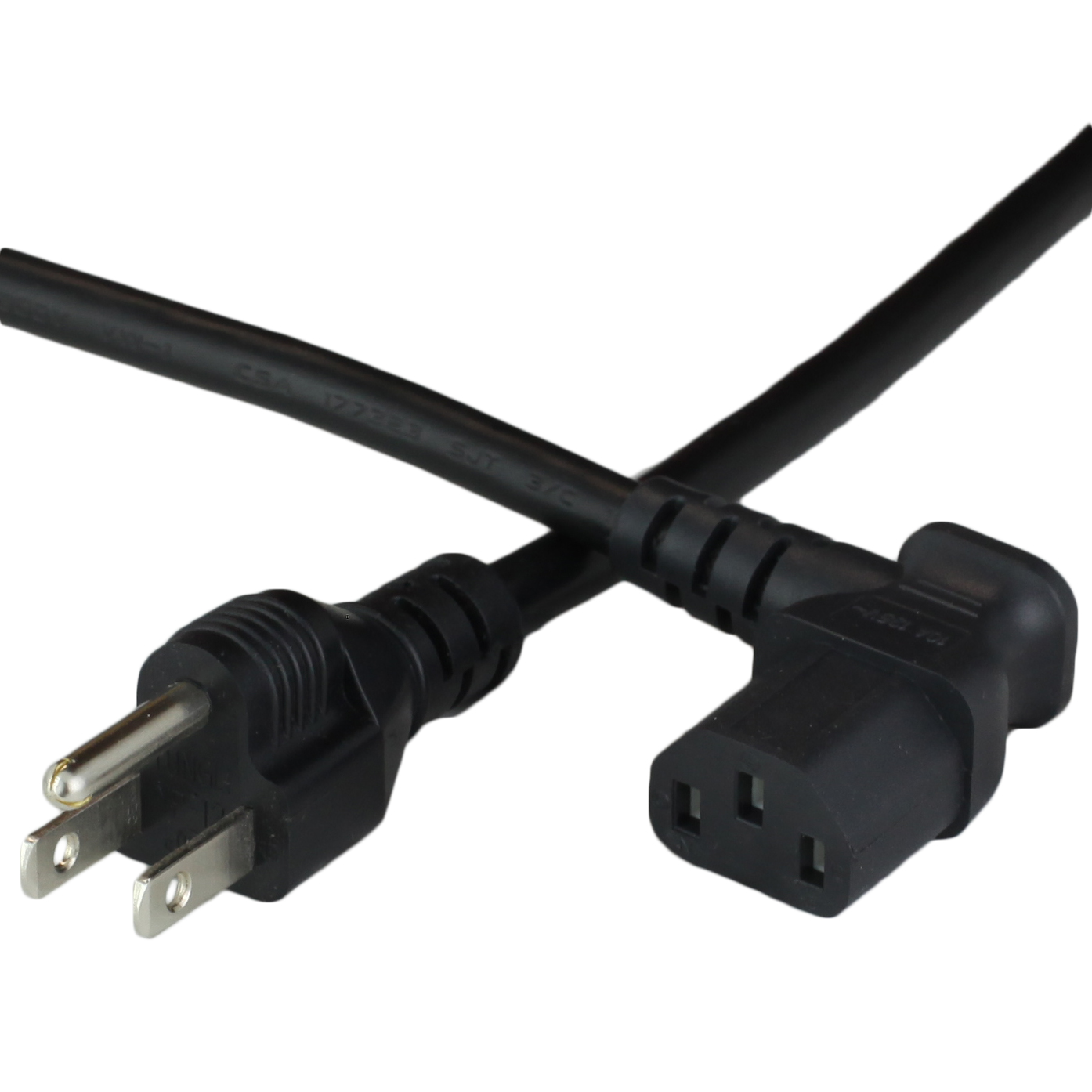

10A 125V NEMA 5-15P to IEC603230 C13 RIGHT ANGLE Power Cords. Definition of right angle: when looking at the C13 plugged into the equipment and the ground pin at 12:00, the cord will go to the right (3:00 position). The NEMA 5-15P (male) mates with a NEMA 5-15R (female - standard wall outlet). The C13 (female) mates with a C14 (male).

For help finding a product or for product additional product information , call us at (860) 763-2100 or email sales@worldcordsets.com


Part Number
Length
Current (Amps)
Voltage (Volts)
Connector (Female)
Plug (Male)
Cordage
Availability
1+
10+
100+
  • 3 Feet
  • 10 Amps
  • 125 volts
  • IEC 60320 C13 Right Angle Photo of IEC 60320 C13 Right Angle
  • NEMA 5-15P Photo of NEMA 5-15P
  • 18awg-3c SVT
3 Feet
10 Amps
125 volts
IEC 60320 C13 Right Angle
NEMA 5-15P
18awg-3c SVT

1+ :

10+ :

100+ :

  • 6 Feet
  • 10 Amps
  • 125 volts
  • IEC 60320 C13 Right Angle Photo of IEC 60320 C13 Right Angle
  • NEMA 5-15P Photo of NEMA 5-15P
  • 18awg-3c SVT
6 Feet
10 Amps
125 volts
IEC 60320 C13 Right Angle
NEMA 5-15P
18awg-3c SVT

1+ :

10+ :

100+ :

  • 10 Feet
  • 10 Amps
  • 125 volts
  • IEC 60320 C13 Right Angle Photo of IEC 60320 C13 Right Angle
  • NEMA 5-15P Photo of NEMA 5-15P
  • 18awg-3c SVT
10 Feet
10 Amps
125 volts
IEC 60320 C13 Right Angle
NEMA 5-15P
18awg-3c SVT

1+ :

10+ :

100+ :



Specifications of NEMA 5-15P to IEC 60320 C13 ANGLED Power Cords

Current (Amps)
Voltage (Volts)
Connector (Female)
Plug (Male)
Approvals
Certifications
Country of Origin
Color

NEMA 5-15P

NEMA 5-15P

General Information:

The NEMA 5-15P is a 3 Wire grounded plug featuring two blades (can be equal or unequal widths due to the ground pin forcing polarity) and one ground pin rated up to 125V AC and 15 Amps. The ground pin can be either a rounded shape or a U Shape depending on the manufacturer, but both are functionally the same. The NEMA 5-15P is your standard household plug used for to connect small appliances such as TV's, Microwaves, hairdryers, etc to a wall outlet. The NEMA 5-15P is compatible with a NEMA 5-20R T-Slot outlet, which is commonly found in new home installations.

What does a NEMA 5-15P Connect to?





NEMA 5-15R


5-20R Outlet

The NEMA 5-15 Plug connects to both the NEMA 5-15R Connector and the NEMA 5-15/5-20R Wall Outlet. The connector is commonly found on Extension cords, and the NEMA 5-15/5-20R Wall Outlet is the standard power supply outlet in all residential and commercial construction in North America.




IEC 60320 C13 Right Angle

IEC 60320 C13 Right Angle
  • The IEC 60320 C13 is a grounded 3 Wire connector rated up to 250V and 15 Amps. The C13 mates with a C14 inlet, and is commonly used in a jumper cable scenario in IT Installations providing power from a PDU to a server, router, switch or other computing device. Most people know the C13 as 'the thing that plugs into my computer' because it is the standard connector used to power most desktop computers. In a desktop computer application, the most common cable is the NEMA 5-15P to C13, which connects your standard North American wall outlet to a desktop computer. The right angle connector style is for installing in tight spaces where the power supply or opening is towards the right
