South Africa Power Cords

South Africa Power Cords

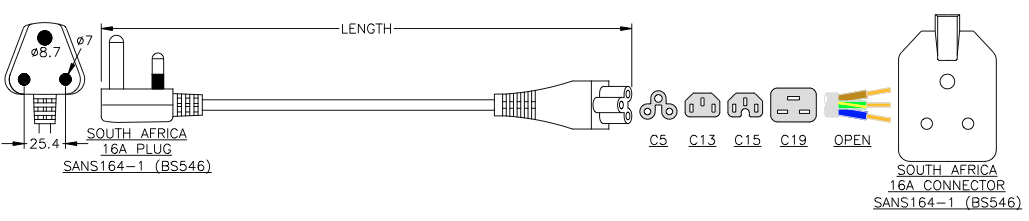

South Africa SANS164-1 Plugs to IEC60320 C5, C7, C13, C13 Right Angle, C13 Left Angle, C19, C19 Right Angle, C19 Left Angle and extension cords are listed here.


SANS 164-1: Plugs and socket outlets for household and similar purposes, 16A 250VAC. The most common plug and socket in use in South Africa originated from the old British system BS 546, with some small differences in pin lengths. It has been in use for the past 80 years, metricated in1953 and revised in 1980. By 2021 or so, plugs made to this standard will be phased out.


SANS 164-2: Plugs and socket outlets for household and similar purposes, IEC System, 16A 250VAC. Plugs and sockets will be phased in according to this new standard and should be fully implemented by about 2021. The plug is very similar to the Brazil plug, but the pin dimensions are different.










Order online by clicking a product below, or, call us at (860) 763-2100 or email sales@worldcordsets.com


Click to Enlarge
Part Number
Length
Current (Amps)
Voltage (Volts)
Connector (Female)
Plug (Male)
Availability
1+
10+
100+
  • 6 Feet
  • 2.5 Amps
  • 250 volts
  • IEC 60320 C5
  • South Africa SANS 164-1 (BS546) 3Pin 16A (LARGE) Type M
6 Feet
2.5 Amps
250 volts
IEC 60320 C5
South Africa SANS 164-1 (BS546) 3Pin 16A (LARGE) Type M
  • 6 Feet
  • 2.5 Amps
  • 250 volts
  • IEC 60320 C5
  • South Africa SANS 164-1 (BS546) 3Pin 16A (LARGE) Type M
6 Feet
2.5 Amps
250 volts
IEC 60320 C5
South Africa SANS 164-1 (BS546) 3Pin 16A (LARGE) Type M
  • 6 Feet
  • 2.5 Amps
  • 250 volts
  • IEC 60320 C7
  • South Africa SANS 164-1 (BS546) 3Pin 16A (LARGE) Type M
6 Feet
2.5 Amps
250 volts
IEC 60320 C7
South Africa SANS 164-1 (BS546) 3Pin 16A (LARGE) Type M
  • 6 Feet
  • 2.5 Amps
  • 250 volts
  • IEC 60320 C7
  • India IS694 IA16A3 (BS546) 3Pin 16A (LARGE) Type M
6 Feet
2.5 Amps
250 volts
IEC 60320 C7
India IS694 IA16A3 (BS546) 3Pin 16A (LARGE) Type M
  • 6 Feet
  • 10 Amps
  • 250 volts
  • IEC 60320 C13
  • South Africa SANS 164-1 (BS546) 3Pin 16A (LARGE) Type M
6 Feet
10 Amps
250 volts
IEC 60320 C13
South Africa SANS 164-1 (BS546) 3Pin 16A (LARGE) Type M
  • 2.5 meters
  • 10 Amps
  • 250 volts
  • IEC 60320 C13
  • South Africa SANS 164-1 (BS546) 3Pin 16A (LARGE) Type M
2.5 meters
10 Amps
250 volts
IEC 60320 C13
South Africa SANS 164-1 (BS546) 3Pin 16A (LARGE) Type M
  • 3.0 meters
  • 10 Amps
  • 250 volts
  • IEC 60320 C13
  • South Africa SANS 164-1 (BS546) 3Pin 16A (LARGE) Type M
3.0 meters
10 Amps
250 volts
IEC 60320 C13
South Africa SANS 164-1 (BS546) 3Pin 16A (LARGE) Type M
  • 2.5 meters
  • 13 Amps
  • 250 volts
  • IEC 60320 C13 Left Angle
  • South Africa SANS 164-1 (BS546) 3Pin 16A (LARGE) Type M
2.5 meters
13 Amps
250 volts
IEC 60320 C13 Left Angle
South Africa SANS 164-1 (BS546) 3Pin 16A (LARGE) Type M
  • 2.5 meters
  • 10 Amps
  • 250 volts
  • IEC 60320 C13 Right Angle
  • South Africa SANS 164-1 (BS546) 3Pin 16A (LARGE) Type M
2.5 meters
10 Amps
250 volts
IEC 60320 C13 Right Angle
South Africa SANS 164-1 (BS546) 3Pin 16A (LARGE) Type M
  • 2.5 meters
  • 15 Amps
  • 250 volts
  • IEC 60320 C19
  • South Africa SANS 164-1 (BS546) 3Pin 16A (LARGE) Type M
2.5 meters
15 Amps
250 volts
IEC 60320 C19
South Africa SANS 164-1 (BS546) 3Pin 16A (LARGE) Type M
  • 3.0 meters
  • 16 Amps
  • 250 volts
  • IEC 60320 C19
  • South Africa SANS 164-1 (BS546) 3Pin 16A (LARGE) Type M
3.0 meters
16 Amps
250 volts
IEC 60320 C19
South Africa SANS 164-1 (BS546) 3Pin 16A (LARGE) Type M
  • 2.5 meters
  • 16 Amps
  • 250 volts
  • IEC 60320 C19 Left Angle
  • South Africa SANS 164-1 (BS546) 3Pin 16A (LARGE) Type M
2.5 meters
16 Amps
250 volts
IEC 60320 C19 Left Angle
South Africa SANS 164-1 (BS546) 3Pin 16A (LARGE) Type M
  • 2.5 meters
  • 16 Amps
  • 250 volts
  • IEC 60320 C19 Right Angle
  • South Africa SANS 164-1 (BS546) 3Pin 16A (LARGE) Type M
2.5 meters
16 Amps
250 volts
IEC 60320 C19 Right Angle
South Africa SANS 164-1 (BS546) 3Pin 16A (LARGE) Type M
  • 1.0 meter
  • 15 Amps
  • 250 volts
  • BS546 15A
  • South Africa SANS 164-1 (BS546) 3Pin 16A (LARGE) Type M
1.0 meter
15 Amps
250 volts
BS546 15A
South Africa SANS 164-1 (BS546) 3Pin 16A (LARGE) Type M


  • Product Information
  • Documents & Downloads
  • Submit a Request
  • Q & A

Need help? Ask the experts!

With over 30 years of experience in the power and data industry, we have the expertise to help you find exactly what you are looking for. We're more than just an online store, we have experts in the power and data industry that can help you online, over the phone, or via email.


  • Have a request from a customer and not sure what you need? Let us quote it for you!

  • Looking for a specific product and can't find it? Let us find it for you!

  • Need a question answered quickly? Live Chat with us!


860.763.2100 or Ask us a Question


Product Warranty

At WoCo, we are committed to providing you with quality products, and that is backed up by our 1 Year product warranty. If there are any defects due to workmanship, World Cord Sets will accept liability for the purchase price of the goods and associated freight charges to provide a full refund to the customer.


Committment to Quality

Providing high quality, affordable products and solutions is a cornerstone of what we do at World Cord Sets. All products we sell have passed our internal quality assurance standards. Most products sold (unless otherwise noted) pass industry standard certifications such such as RoHS, REACH, CE, UL, cUL, and many other international standards. You can find the list of standards and approvals for a product in the specifications section.


South Africa SANS 164-1 (BS546) 3Pin 16A (LARGE) Type M

The South Africa SANS 164-1 (BS546) 3Pin is a 2 pole grounded plug rated up to 250V and 16A. This is the most commonly used plug and socket system currently in use in South America today. This plug is identical to the BS 546 15A plug, however is rated for 16A under South African

UL Listed : E503526

All of our NorthAmerican use Power Cord Sets are UL listed under E503529. This means that you can be sure that all of our power cord sets are of the highest quality and are certified for use in the United States.

Manufactured Under ISO: 9001

Our power cord sets are manufactured under an ISO 9001 quality management system to ensure that you get the same outstanding quality with on every order you place.
All of our NorthAmerican use Power Cord Sets are UL listed under E503529. This means that you can be sure that all of our power cord sets are of the highest quality and are certified for use in the United States.

White Label Shipping

Are you a reseller looking for Blind or White Label Drop Shipping? We offer both! During checkout simply select "Blind Shipping", then either upload your own packing slip, or, upload your logo and part numbers into ours. You will receive automated tracking emails as soon as your order has been packed so you can keep your customer up to date in realtime. Blind drop shipping has never been easier.

IEC 60320 C19 CONNECTOR (FEMALE)

  • The IEC 60320 C19 is a grounded 3 Wire connector rated up to 250V and 20 Amps. The C19 mates with a C20 inlet, and is commonly used in a jumper cable scenario in IT Installations providing power from a PDU to a server, router, switch or other computing device. The C19 is typically used in high powered blade server chassis, large network routers, and other IT equipment that draws more power than a standard C13 can accommodate.

IEC 60320 C13 Right Angle

  • The IEC 60320 C13 is a grounded 3 Wire connector rated up to 250V and 15 Amps. The C13 mates with a C14 inlet, and is commonly used in a jumper cable scenario in IT Installations providing power from a PDU to a server, router, switch or other computing device. Most people know the C13 as 'the thing that plugs into my computer' because it is the standard connector used to power most desktop computers. In a desktop computer application, the most common cable is the NEMA 5-15P to C13, which connects your standard North American wall outlet to a desktop computer. The right angle connector style is for installing in tight spaces where the power supply or opening is towards the right

IEC 60320 C13 CONNECTOR (FEMALE)

  • The IEC 60320 C13 is a grounded 3 Wire connector rated up to 250V and 15 Amps. The C13 mates with a C14 inlet, and is commonly used in a jumper cable scenario in IT Installations providing power from a PDU to a server, router, switch or other computing device. Most people know the C13 as 'the thing that plugs into my computer' because it is the standard connector used to power most desktop computers. In a desktop computer application, the most common cable is the NEMA 5-15P to C13, which connects your standard North American wall outlet to a desktop computer.

IEC 60320 C7 CONNECTOR (FEMALE)

  • The IEC 60320 C7 is an ungrounded 2 Wire connector rated up to 250V and 2.5 Amps Internationally or 125V and 10 Amps in North America. The C7 mates with a C8 inlet, and is commonly used for laptop power supplies, video game consoles, televisions, and other double-insulated small appliances. This connector is sometimes referred to as a "Figure-8" or "Shotgun" connector due to it's shape. A variation of the C7 exists, sometimes referred to as a C7P or C7 Polarized, although it is not documented in the IEC 60320 standard. The C7P has one square side and one circular side so the connector only mates with the inlet using the correct pin configuration.

IEC 60320 C5 CONNECTOR (FEMALE)

  • The IEC 60320 C5 is a grounded 3 Wire connector rated up to 250V and 2.5 Amps Internationally or 125V and 10 Amps in North America. The C5 mates with a C6 inlet, and is commonly used for laptop power supplies, projectors, and some televisions. Being slightly smaller in size than the C13, the C5 can be a good choice for smaller appliances. This connector is sometimes referred to as a "Mickey Mouse" connector due to the shape of the connector looking similar to the kids television show character.
