MANUAL RESET-
User Attachable GFCI-
Plug Head Style

GFI Plugs | GFCI Cord Ends | World Cord Sets, Inc.

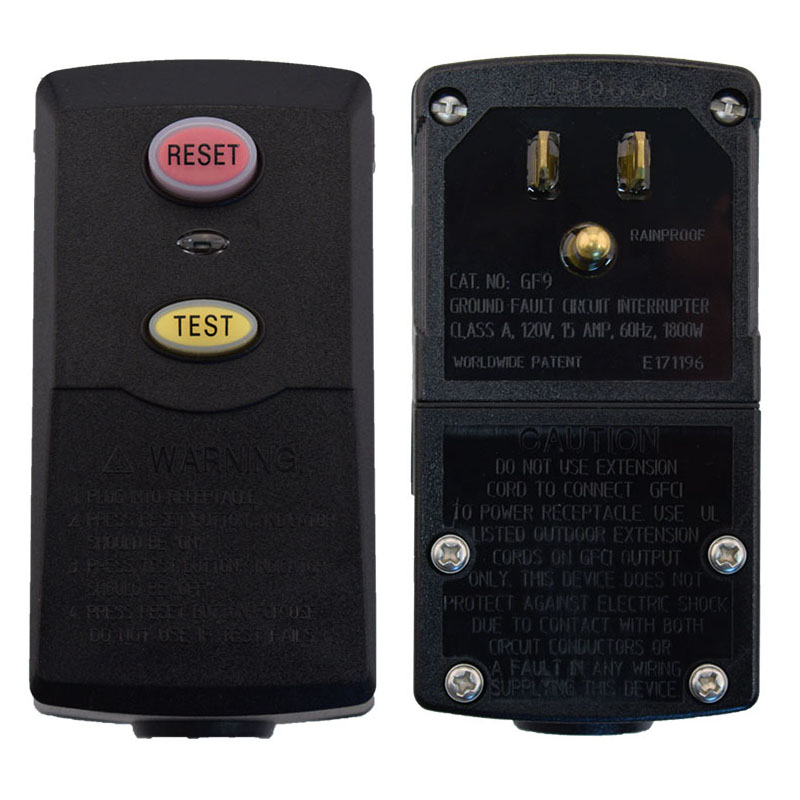

The manual reset GFCI, also known as a GFI, User Attachable Plug Head is typically used for outdoor electrical equipment and job site applications. As the name implies, manual reset GFCI cord ends (Ground Fault Circuit Interrupters) must be manually reset when they are tripped. Trip level is between 4-6 mA. User-attachable plug-in GFCIs can be used to convert an existing cord into a GFCI cord by cutting off the existing plug and wiring on the GFI plug head. Contact Us for custom GFCI Cord Sets made to your specifications. Typical applications include Tools, Power washers, Paint Sprayers, Extension Cords, Lawn & Garden Equipment and Outdoor Tools.

For help finding a product or for product additional product information , call us at (860) 763-2100 or email sales@worldcordsets.com


Click to Enlarge
Part Number
Current (Amps)
Accepts Cordage
Plug (Male)
Voltage (Volts)
Availability
1+
10+
100+
  • 10 Amps
  • 18awg-3c
  • NEMA 5-15P
  • 120V
10 Amps
18awg-3c
NEMA 5-15P
120V
  • 13 Amps
  • 16awg-3c
  • NEMA 5-15P
  • 120V
13 Amps
16awg-3c
NEMA 5-15P
120V
  • 15 Amps
  • 14awg-3c , 12awg-3c
  • NEMA 5-15P
  • 120V
15 Amps
14awg-3c , 12awg-3c
NEMA 5-15P
120V


Specifications of User Attachable GFCI and RCD

Voltage (Volts)
Indoor/Outdoor
Color
Trip Level (mA)
Temperature Low (C)
Temperature High (C)
Approvals
Reset Type

Documents & Drawings
