| Image | Part/Description | Specifications | Availability | Pricing | Qty | |
|---|---|---|---|---|---|---|
|
IL-M-15125
15 Amp Manual Reset User Attachable Inline GFCI |
Color
Black
Current (Amps)
15 Amps
Voltage (Volts)
120V
Reset Type
Manual
Temperature High (C)
66
Temperature Low (C)
-35
Trip Level (mA)
4-6 mA
Accepts Cordage
14awg-3c
|
|
|||
|
IL-M-20125
20 Amp Manual Reset User Attachable Inline GFCI |
Color
Black
Current (Amps)
20 Amps
Voltage (Volts)
120V
Reset Type
Manual
Temperature High (C)
66
Temperature Low (C)
-35
Trip Level (mA)
4-6 mA
Accepts Cordage
12awg-3c
|
|
|||
|
IL-M-20240-B
20A 120/240V MANUAL RESET User Attachable In-Line GFCI - BLACK |
Country of Certification
United States
Mexico
Color
Black
Current (Amps)
20 Amps
Voltage (Volts)
120/240V
Approvals
UL
Reset Type
Manual
Temperature High (C)
66
Temperature Low (C)
-35
Trip Level (mA)
4-6 mA
Accepts Cordage
18awg-3c
16awg-3c
14awg-3c
12awg-3c
18awg-2c
16awg-2c
14awg-2c
Indoor/Outdoor
Rainproof Class A
Hz
50/60 Hz
|
|
|||
|
IL-M-20240-Y
20A 240V MANUAL RESET User Attachable In-Line GFCI - YELLOW |
Country of Certification
United States
Mexico
Color
Yellow
Color
Yellow
Current (Amps)
20 Amps
Voltage (Volts)
120/240V
Approvals
UL
Reset Type
Manual
Temperature High (C)
66
Temperature Low (C)
-35
Trip Level (mA)
4-6 mA
Accepts Cordage
18awg-3c
16awg-3c
14awg-3c
12awg-3c
18awg-2c
16awg-2c
14awg-2c
Indoor/Outdoor
Rainproof Class A
Hz
50/60 Hz
|
|
|||
|
IL-M-20240-Y.V2
20A 240V MANUAL RESET User Attachable In-Line GFCI - YELLOW |
Color
Yellow
Current (Amps)
20 Amps
Voltage (Volts)
240V
Housing Style - GFCI
In-Line
Reset Type
Manual
|
|
|||
|
PH-A-08125
8 Amp User Attachable Auto Reset GFCI Plug Head |
Plug (Male)
NEMA 5-15P
Color
Black
Current (Amps)
8 Amps
Voltage (Volts)
120V
Reset Type
Automatic
Accepts Cordage
18awg-3c
Indoor/Outdoor
Rainproof Class A
Hz
50/60 Hz
|
|
|||
|
PH-A-10125
10 Amp User Attachable Auto Reset GFCI Plug Head |
Plug (Male)
NEMA 5-15P
Color
Black
Current (Amps)
10 Amps
Voltage (Volts)
120V
Reset Type
Automatic
Accepts Cordage
18awg-3c
Indoor/Outdoor
Rainproof Class A
Hz
50/60 Hz
|
|
|||
|
PH-A-13125
13 Amp User Attachable Auto Reset GFCI Plug Head |
Plug (Male)
NEMA 5-15P
Color
Black
Current (Amps)
13 Amps
Voltage (Volts)
120V
Reset Type
Automatic
Accepts Cordage
16awg-3c
Indoor/Outdoor
Rainproof Class A
Hz
50/60 Hz
|
|
|||
|
PH-M-15125
15 Amp Manual Reset GFCI Plug Head |
Plug (Male)
NEMA 5-15P
Color
Black
Current (Amps)
15 Amps
Voltage (Volts)
120V
Reset Type
Manual
Temperature High (C)
66
Temperature Low (C)
-35
Trip Level (mA)
4-6 mA
Accepts Cordage
14awg-3c
12awg-3c
Indoor/Outdoor
Rainproof Class A
|
|
|||
|
PH-M-20125-B
20 Amp User Attachable Manual Reset GFCI Plug Head |
Plug (Male)
NEMA 5-20P
Color
Black
Current (Amps)
20 Amps
Voltage (Volts)
120V
Reset Type
Manual
Temperature High (C)
66
Temperature Low (C)
-35
Trip Level (mA)
4-6 mA
Indoor/Outdoor
Rainproof Class A
|
|
|||
|
RPH-M-SCHUKO-30B
16 Amp 30mA Trip Level Manual Reset RCD Plug Head Europe |
Plug (Male)
European Schuko CEE7/7 - Straight
Color
Black
Current (Amps)
16 Amps
Voltage (Volts)
250 volts
Approvals
CE
Certifications
RoHS
Reset Type
Manual
Trip Level (mA)
30 mA
Accepts Cordage
8 - 10 mm
Indoor/Outdoor
IP44
|
|
| SKU | Description | Specifications | Spec Sheet |
|---|---|---|---|
| PH-M-15125 | 15 Amp Manual Reset GFCI Plug Head | Manual, Black, 15 Amps, 120V, NEMA 5-15P, Rainproof Class A, 14awg-3c, 12awg-3c, -35, 66, Black, 4-6 mA | Spec Sheet |
| PH-M-13125 | 13 Amp Manual Reset GFCI Plug Head | 13 Amps, 120V, NEMA 5-15P, 16awg-3c, Rainproof Class A, Black, 4-6 mA, -35, 66, Manual, Black | Spec Sheet |
| PH-M-10125 | 10 Amp Manual Reset GFCI Plug Head | 18awg-3c, 10 Amps, 120V, Rainproof Class A, Black, 4-6 mA, -35, 66, NEMA 5-15P, Manual, Black | Spec Sheet |
| PH-M-20125-B | 20 Amp User Attachable Manual Reset GFCI Plug Head | 20 Amps, 120V, NEMA 5-20P, Rainproof Class A, Black, 4-6 mA, -35, 66, Manual | Spec Sheet |
| PH-A-08125 | 8 Amp User Attachable Auto Reset GFCI Plug Head | NEMA 5-15P, 50/60 Hz, Rainproof Class A, 18awg-3c, Black, 120V, 8 Amps, Automatic, Black | Spec Sheet |
| PH-A-15125 | 15 Amp User Attachable Auto Reset GFCI Plug Head | NEMA 5-15P, 50/60 Hz, Rainproof Class A, 120V, 14awg-3c, 12awg-3c, 15 Amps, Automatic, Black | Spec Sheet |
| PH-A-10125 | 10 Amp User Attachable Auto Reset GFCI Plug Head | 120V, 10 Amps, 18awg-3c, Automatic, Black, NEMA 5-15P, 50/60 Hz, Rainproof Class A | Spec Sheet |
| PH-A-13125 | 13 Amp User Attachable Auto Reset GFCI Plug Head | NEMA 5-15P, 50/60 Hz, Rainproof Class A, 120V, 16awg-3c, 13 Amps, Automatic, Black | Spec Sheet |
| PH-A-20125 | NEMA 5-20P AUTOMATIC RESET User Attachable Plughead GFCI | 20 Amps, 12awg-3c, NEMA 5-20P, UL, Automatic, 120V, Black | Spec Sheet |
| PH-A-15125-2W | 15 Amp 2 Wire User Attachable Auto Reset GFCI Plug Head | 50/60 Hz, Rainproof Class A, 120V, 14awg-2c, 15 Amps, NEMA 1-15P, Automatic, Black | Spec Sheet |

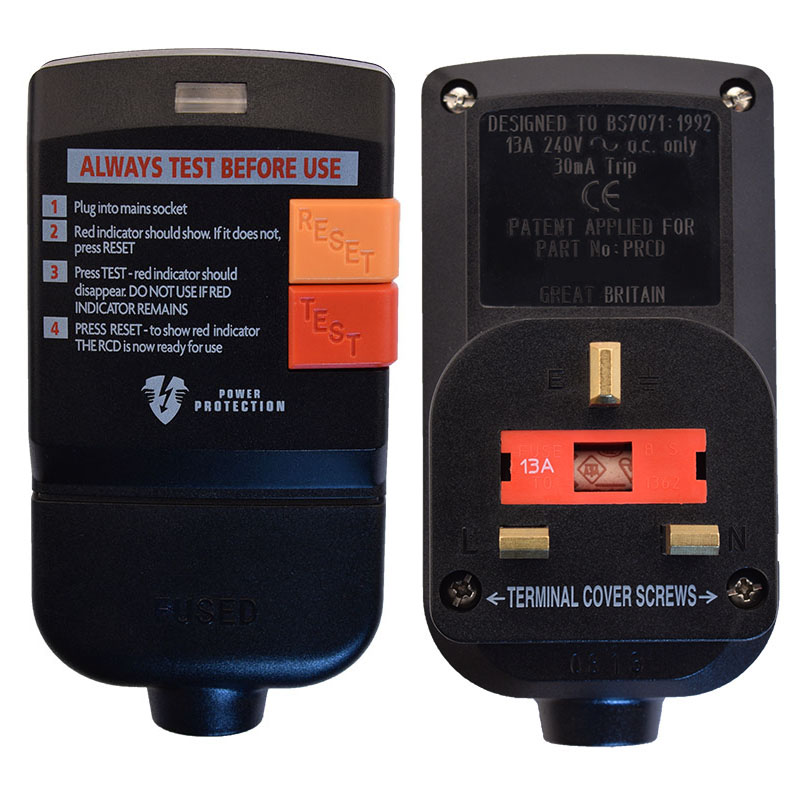

| RPH-A-UK-30 | 13 Amp User Attachable Australian RCD Plug Head | 13 Amps, 240V, 30 mA, IP 2X, Automatic, Black, UK BS1363 ANGLED, BSI, RoHS | Spec Sheet |
| IL-A-15125 | 15 Amp User Attachable Auto Reset Inline GFCI | Automatic, 120V, 15 Amps, Black, 14awg-3c | Spec Sheet |
| IL-A-13125 | 13 Amp User Attachable Auto Reset Inline GFCI | Black, 16awg-3c, 13 Amps, 120V, Automatic | Spec Sheet |
| IL-A-10125 | 10 Amp User Attachable Auto Reset Inline GFCI | 10 Amps, 120V, Automatic, Black, 18awg-3c | Spec Sheet |
| IL-M-10125 | 10 Amp Manual Reset User Attachable Inline GFCI | 10 Amps, 18awg-3c, -35, 66, 4-6 mA, 120V, Manual, Black | Spec Sheet |
| IL-M-13125 | 13 Amp Manual Reset User Attachable Inline GFCI | 16awg-3c, 13 Amps, -35, 66, 4-6 mA, 120V, Manual, Black | Spec Sheet |
| IL-M-15125 | 15 Amp Manual Reset User Attachable Inline GFCI | 14awg-3c, -35, 66, 4-6 mA, 120V, Manual, Black, 15 Amps | Spec Sheet |
| IL-M-20125 | 20 Amp Manual Reset User Attachable Inline GFCI | 12awg-3c, 20 Amps, -35, 66, 4-6 mA, 120V, Manual, Black | Spec Sheet |
| IL-M-20240-B | 20A 120/240V MANUAL RESET User Attachable In-Line GFCI - BLACK | Rainproof Class A, 18awg-3c, 16awg-3c, 14awg-3c, 12awg-3c, 18awg-2c, 16awg-2c, 14awg-2c, 4-6 mA, -35, 66, Manual, Black, Honduras, 20 Amps, 120/240V, UL, 50/60 Hz | Spec Sheet |
| IL-M-20240-Y | 20A 240V MANUAL RESET User Attachable In-Line GFCI - YELLOW | 18awg-2c, 16awg-2c, 14awg-2c, 4-6 mA, -35, 66, Manual, Yellow, Yellow, 20 Amps, 120/240V, UL, 50/60 Hz, Rainproof Class A, 18awg-3c, 16awg-3c, 14awg-3c, 12awg-3c | Spec Sheet |
| RPH-M-SCHUKO-30B | 16 Amp 30mA Trip Level Manual Reset RCD Plug Head Europe | 250 volts, 30 mA, IP44, European Schuko CEE7/7 - Straight, 8 - 10 mm, CE, RoHS, Manual, Black, 16 Amps | Spec Sheet |
| RPH-M-UK-30B | Manual Reset RCD Plug Head United Kingdom 30mA Trip Level | 13 Amps, 250 volts, UK BS1363 ANGLED, CE, RoHS, China, Black, 8 - 10 mm, 30 mA | Spec Sheet |
| RPH-M-SCHUKO-10B | 16 Amp 10mA Trip User Attachable RCD Plug Head Europe | 16 Amps, 250 volts, 10 mA, IP44, European Schuko CEE7/7 - Straight, 8 - 10 mm, CE, RoHS, Manual, Black | Spec Sheet |
| RPH-M-UK-10B | Manual Reset RCD Plug Head United Kingdom 10mA Trip Level | Manual, 13 Amps, 250 volts, UK BS1363 ANGLED, 8 - 10 mm, 10 mA, Black, RoHS, CE | Spec Sheet |
| IL-M-20240-Y.V2 | 20A 240V MANUAL RESET User Attachable In-Line GFCI - YELLOW | 20 Amps, 240V, Manual, Yellow, In-Line | Spec Sheet |
