Data Center & Rack Mount PDU / APC Metered-by-Outlet with Switching Rack Data Center Power Distribution Unit
APC Metered-by-Outlet with Switching Rack Data Center Power Distribution Unit

APC Metered-by-Outlet with Switching Rack PDUs | World Cord Sets

Metered-by-outlet with switching Rack Power Distribution Units (PDUs) allow remote monitoring of each outlet, as-well as remote on/off switching control of single outlets. This is an excellent tool for advanced data center energy management.

For help finding a product or for product additional product information , call us at (860) 763-2100 or email sales@worldcordsets.com

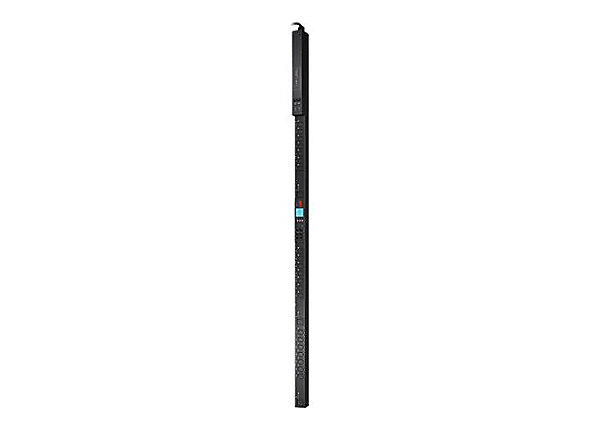

Click to Enlarge
Part Number
Mounting U-Space
Nominal Voltage
Region
Input Amperage
Nominal Power
Plug (Male)
Output Receptacles
Cord Length
Availability
1+
10+
100+
Add All To Cart
Photo of APC AP8632 Metered-by-Outlet with Switching Rack PDU - 24 x NEMA 5-20R - 2.88 kVA - 0U Vertical Rackmount
  • Vertical, OU
  • 100-120
  • NAM , Japan
  • 30A
  • 2.9 kW
  • NEMA L5-30P Photo of NEMA L5-30P
  • (24) NEMA 5-20R Photo of (24) NEMA 5-20R
  • 3.0 m
Vertical, OU
100-120
NAM , Japan
30A
2.9 kW
NEMA L5-30P
(24) NEMA 5-20R
3.0 m

1+ :

10+ :

100+ :

Photo of APC AP8641 Metered-by-Outlet 3x IEC 60320 C19, 21x IEC 60320 C13 0U Rack Mount
  • Vertical, OU
  • 200-240
  • NAM , Japan , LAM
  • 30A
  • 5.0 kW
  • NEMA L6-30P Photo of NEMA L6-30P
  • (21) C13 Photo of (21) C13
    (3) C19 Photo of (3) C19
  • 3.0 m
Vertical, OU
200-240
NAM , Japan , LAM
30A
5.0 kW
NEMA L6-30P
(21) C13
(3) C19
3.0 m

1+ :

10+ :

100+ :

Photo of APC AP8653 Metered-by-Outlet 3x IEC 60320 C19, 21x IEC 60320 C13 0U Rack Mount
  • Vertical, OU
  • 220-240
  • LAM , EMEA , GCN , APJ
  • 32A
  • 7.4 kW
  • IEC 309 32A Photo of IEC 309 32A
  • (21) C13 Photo of (21) C13
    (3) C19 Photo of (3) C19
  • 3.0 m
Vertical, OU
220-240
LAM , EMEA , GCN , APJ
32A
7.4 kW
IEC 309 32A
(21) C13
(3) C19
3.0 m

1+ :

10+ :

100+ :

Photo of APC AP8659EU3 Metered-by-Outlet 3x IEC 60320 C19, 21x IEC 60320 C13 0U Rack Mount
  • Vertical, OU
  • 230
  • LAM , EMEA , GCN , APJ
  • 16A
  • 3.7 kW
  • IEC 309 16A Photo of IEC 309 16A
  • (21) C13 Photo of (21) C13
    (3) C19 Photo of (3) C19
  • 3.0 m
Vertical, OU
230
LAM , EMEA , GCN , APJ
16A
3.7 kW
IEC 309 16A
(21) C13
(3) C19
3.0 m

1+ :

10+ :

100+ :

Photo of APC AP8659 Metered-by-Outlet Rack PDU 3x IEC 60320 C19, 21x IEC 60320 C13 0U Rack Mount
  • Vertical, OU
  • 208
  • NAM
  • 20A
  • 3.3 kW
  • NEMA L6-20P Photo of NEMA L6-20P
  • (3) C19 Photo of (3) C19
    (21) C13 Photo of (21) C13
  • 3.0 m
Vertical, OU
208
NAM
20A
3.3 kW
NEMA L6-20P
(3) C19
(21) C13
3.0 m

1+ :

10+ :

100+ :

Photo of APC AP8661 Metered-by-Outlet 3x IEC 60320 C19, 21x IEC 60320 C13 0U Rack Mount
  • Vertical, OU
  • 208
  • NAM
  • 20 Amps, 3ø
  • 5.7 kW
  • NEMA L21-20P Photo of NEMA L21-20P
  • (3) C19 Photo of (3) C19
    (21) C13 Photo of (21) C13
  • 1.8 m
Vertical, OU
208
NAM
20 Amps, 3ø
5.7 kW
NEMA L21-20P
(3) C19
(21) C13
1.8 m

1+ :

10+ :

100+ :



Specifications of Data Center & Rack Mount PDU

Mounting U-Space

Documents & Drawings
