IEC 60309 includes “plugs, socket-outlets and couplers for industrial purposes”. The IEC 60309 standard puts an emphasis on safety through a unique arrangement of pins and earth/ground to ensure that only compatible devices are able to mate. Further, this standard may optionally include a pilot contact that plugs in last when connecting and first when disconnecting to reduce the likelihood or arcing, which may cause damage to the individual or device. The pin and sleeve design of this standard provides some degree of weatherproofing, indicated by its IP (Ingress Protection) marking. Most common are the IP44 and IP66, which provide splash-proof protection and watertight protection, respectively. Overall, this standard is common in open-air conditions where high power draw is required and protection from individuals, dust, water and chemicals is desired.

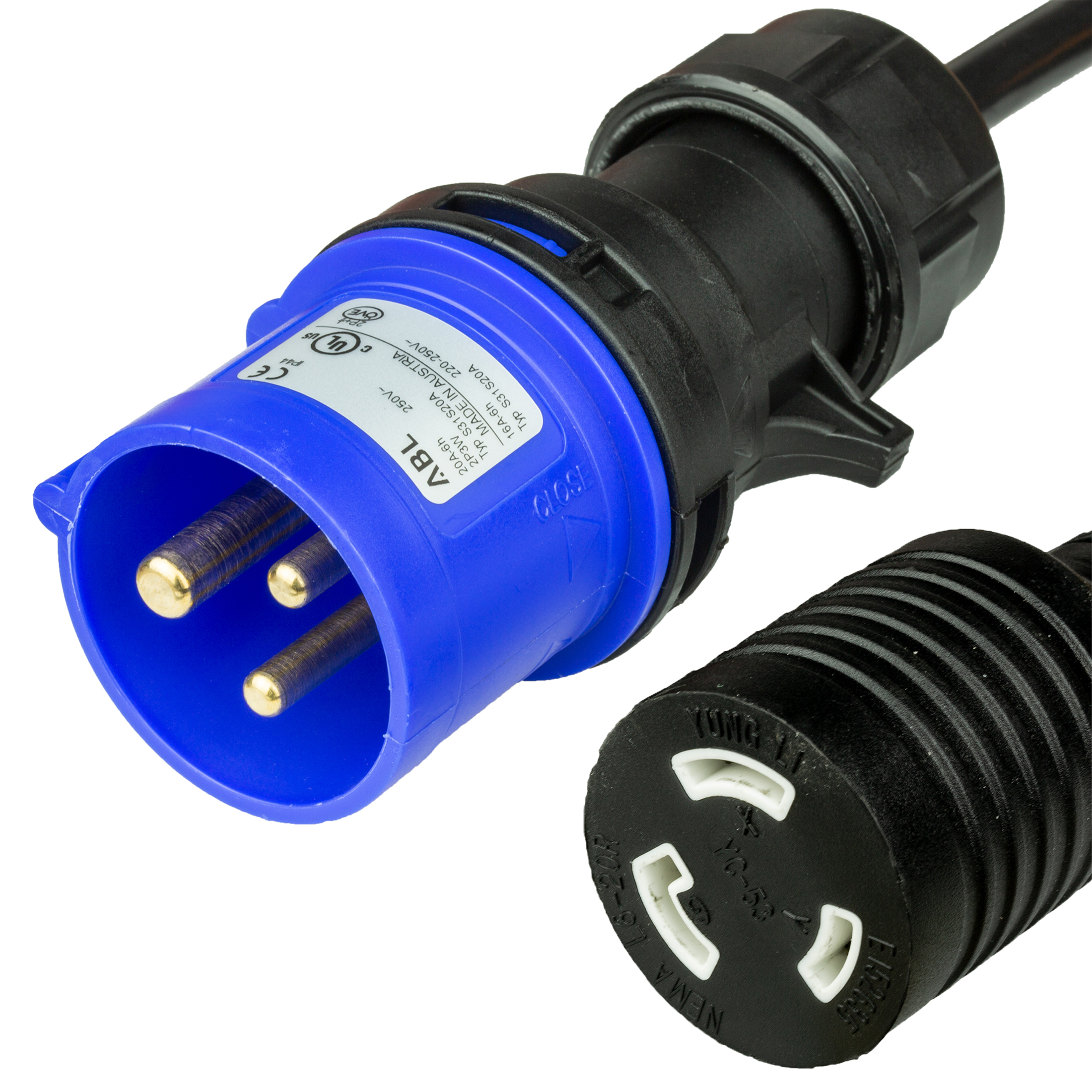

IEC 60309 320P6 IP44 Splashproof Plug

IEC 60309 320P6 IP44 Splashproof Plug

General Information:

IEC 60309 includes “plugs, socket-outlets and couplers for industrial purposes”. The IEC 60309 standard puts an emphasis on safety through a unique arrangement of pins and earth/ground to ensure that only compatible devices are able to mate. The pin and sleeve design of this standard provides some degree of weatherproofing, indicated by its IP (Ingress Protection) marking.

IP44 is known as the "Splashproof" Rating, which breaks down to sealing against solids no smaller than 1.0mm and spraying water at the connection from any angle. Overall, this standard is common in open-air conditions where high power draw is required and protection from individuals, dust, water and chemicals is desired. The IP code, as defined by standard IEC 60529, classifies the degrees of protection provided against the intrusion of solids and liquids.

What does the IEC 60309 320P6 IP44 Plug into?




IEC 60309 320C6 IP44 ConnectorThe IEC 60309 320P6 IP44 Splashproof plug is designed to plug into its matching IEC 60309 320C6 IP44 Blue Connector. This can be found on power cords, power drops, and temporary power supply boxes in industrial, commercial and construction settings.

12awg 3 Conductor SJT (Service Junior Thermoplastic) Cordage

12awg 3 Conductor SJT (Service Junior Thermoplastic) Cordage

12awg-3c cable is UL Rated to deliver 20A at up to 300V. However, the actual voltage is dependent on the types of male and female connectors used with the cable. For cord sets with IEC 60320 connectors on both ends, the cable is rated for 20A @ 125V and 20A @ 250V. Because these connectors are rated for use at either voltage, it is very important that you double check the voltages match between the PDU and the Equipment, otherwise, you may damage the equipment.

NEMA L6-20R Twist Lock

NEMA L6-20R Twist Lock

General Information:

The NEMA L6-20R Twist-Lock Connector is rated up to 250VAC and 20A. This couples with the L6-20P and locks into place, eliminating nuisance disconnection. This makes this connector common in commercial and industrial settings where there is high traffic. This connector is found on our L6-20 Extension Cord Series, which is used to extend power from an existing L6-20R wall receptacle or connector to a certain location for convenience.

What does the NEMA L6-20R Connect to?





NEMA L6-20P Plug

NEMA L6-20P Inlet
The NEMA L6-20R Locking Connector is designed to be twisted into place, mating with a NEMA L6-20P Plug or Inlet. The plug can be found on a variety of power cords used in industrial and commercial settings, and the Inlet can be found on a range of industrial equipment.
