IEC 60309 includes “plugs, socket-outlets and couplers for industrial purposes”. The IEC 60309 standard puts an emphasis on safety through a unique arrangement of pins and earth/ground to ensure that only compatible devices are able to mate. Further, this standard may optionally include a pilot contact that plugs in last when connecting and first when disconnecting to reduce the likelihood or arcing, which may cause damage to the individual or device. The pin and sleeve design of this standard provides some degree of weatherproofing, indicated by its IP (Ingress Protection) marking. Most common are the IP44 and IP66, which provide splash-proof protection and watertight protection, respectively. Overall, this standard is common in open-air conditions where high power draw is required and protection from individuals, dust, water and chemicals is desired.

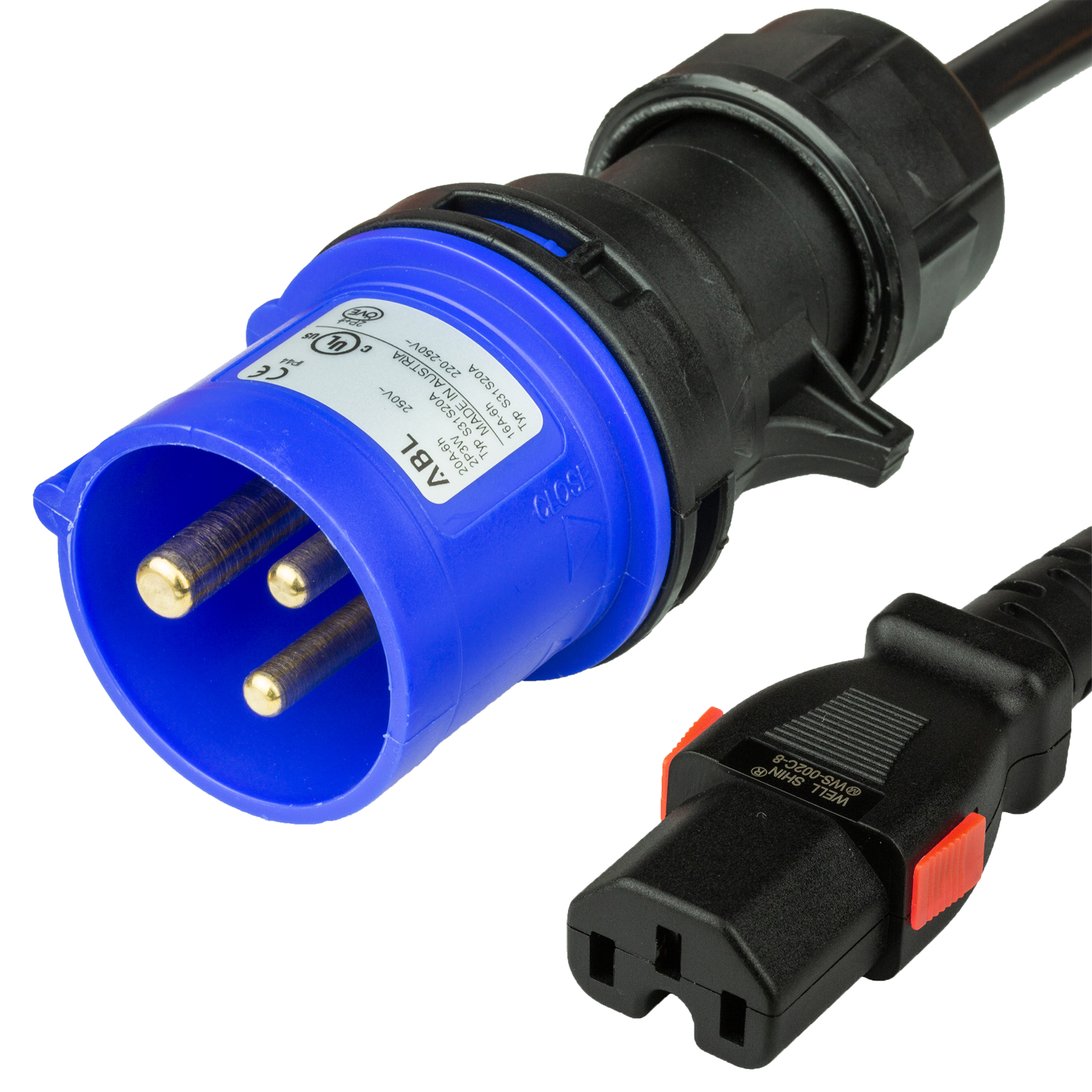

IEC 60309 320P6 IP44 Splashproof Plug

IEC 60309 320P6 IP44 Splashproof Plug

General Information:

IEC 60309 includes “plugs, socket-outlets and couplers for industrial purposes”. The IEC 60309 standard puts an emphasis on safety through a unique arrangement of pins and earth/ground to ensure that only compatible devices are able to mate. The pin and sleeve design of this standard provides some degree of weatherproofing, indicated by its IP (Ingress Protection) marking.

IP44 is known as the "Splashproof" Rating, which breaks down to sealing against solids no smaller than 1.0mm and spraying water at the connection from any angle. Overall, this standard is common in open-air conditions where high power draw is required and protection from individuals, dust, water and chemicals is desired. The IP code, as defined by standard IEC 60529, classifies the degrees of protection provided against the intrusion of solids and liquids.

What does the IEC 60309 320P6 IP44 Plug into?




IEC 60309 320C6 IP44 ConnectorThe IEC 60309 320P6 IP44 Splashproof plug is designed to plug into its matching IEC 60309 320C6 IP44 Blue Connector. This can be found on power cords, power drops, and temporary power supply boxes in industrial, commercial and construction settings.

IEC 60320 C15 A-Lock

IEC 60320 C15 A-Lock

General Information:

The IEC 60320 C15 is a grounded 3 Wire connector rated up to  250V & 10 Amps Internationally and 125V/250V & 15 Amps in North America. The C15 mates with a C16 inlet as well as a C14 Inlet and is commonly used in IT Installations providing power from a PDU to a server, router, switch or other computing device. The C15 is a HIGH TEMPERATURE connector rated up to 120°C, unlike the 70°C rating of the C13. The C15 is commonly used in in electric kettles and other household appliances that involve higher temperatures than a normal C13 is made to withstand. The C15 connector is commonly used with 18awg SJT(OW), 16awg SJT(OW), and 14awg SJT(OW). The Auto Locking feature is a universal locking mechanism that pinches the pins internally, preventing from nuisance unplugging of the connection. To release the locking mechanism, simply pull back on the red tabs located on each side.

What does the IEC 60320 C15 Auto Lock Connect to?




IEC 60320 C14 Inlet

IEC 60320 C16 Inlet
The IEC 60320 type C15 auto locking connector is designed to plug into the high temperature rated IEC 320 C16 Inlet. This inlet is commonly found on high performance IT Equipment that reaches heats that exceed the rating of the standard IEC C13 connector. This inlet is designed to reach temperatures up to 120*C. The C15 can also be plugged into a standard non-high temp application C14 Inlet, which is located on a wide variety of IT Equipment like computer monitors and switches.
