Black IEC 60309 2P+E Splashproof BLUE 320P6 to C15 cULus North America 15A 250V BLACK cordage Power Cord

IEC309 BLUE 320P6 Splashproof Plug to C15 15A Adapter Power Cord

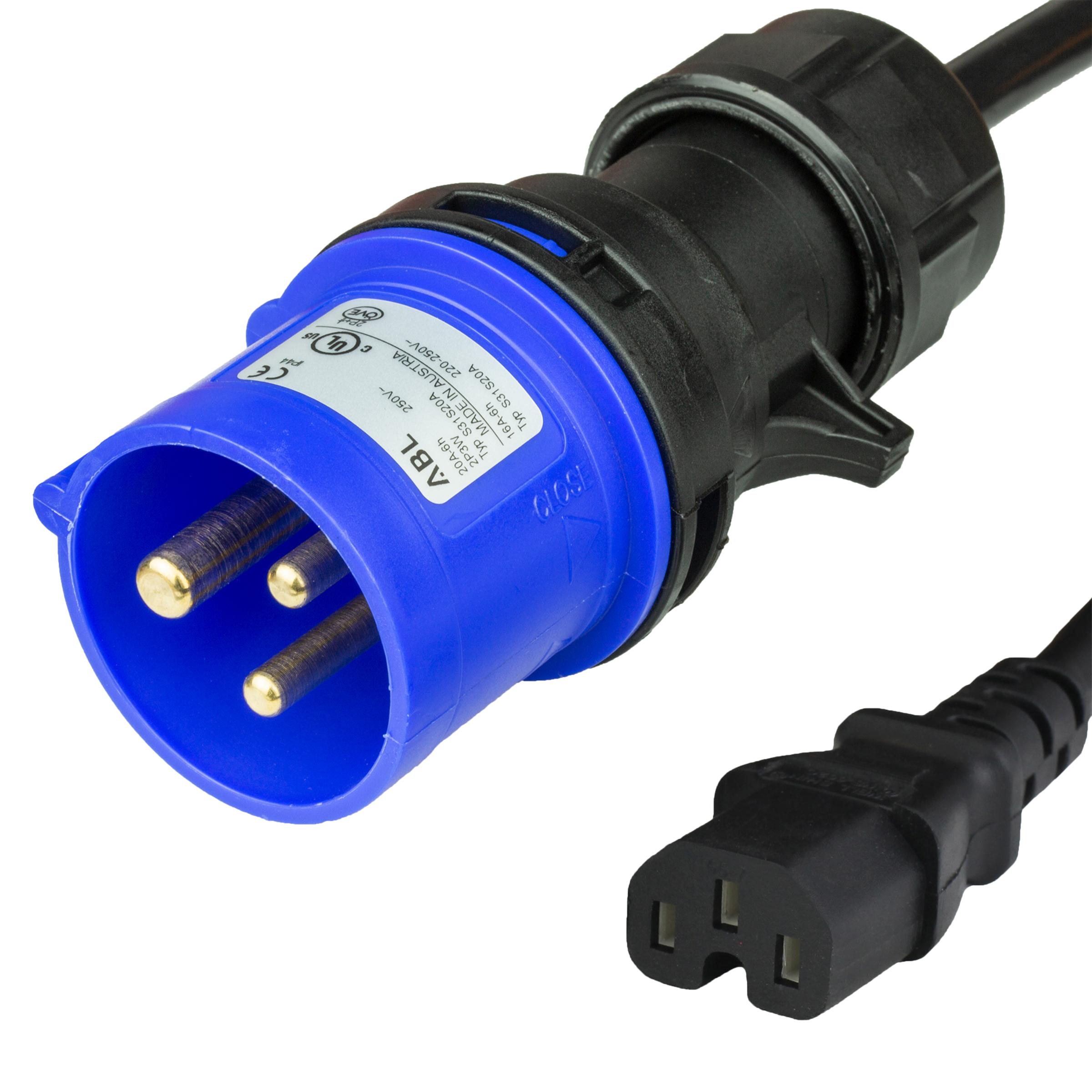

Black IEC 60309 2P+E Splashproof BLUE 320P6 to C15 cULus North America 15A 250V BLACK cordage Power. Cord.The IEC 60309 standard puts an emphasis on safety through a unique arrangement of pins and earth/ground to ensure that only compatible devices are able to mate. The pin and sleeve design of this standard provides some degree of weatherproofing, indicated by its IP (Ingress Protection) marking. The plugs used in this series are IP44 which provide splash-proof protection. Overall, this standard is common in open-air conditions where high power draw is required and protection from individuals, dust, water and chemicals is desired.

For help finding a product or for product additional product information , call us at (860) 763-2100 or email sales@worldcordsets.com


Part Number
Length
Current (Amps)
Voltage (Volts)
Connector (Female)
Plug (Male)
Availability
1+
10+
100+
  • 3 Feet
  • 15 Amps
  • 250 volts
  • IEC 60320 C15 Photo of IEC 60320 C15
  • IEC 60309 320P6 (20/16A 250/230VAC)
3 Feet
15 Amps
250 volts
IEC 60320 C15
IEC 60309 320P6 (20/16A 250/230VAC)

1+ :

10+ :

100+ :

  • 4 Feet
  • 15 Amps
  • 250 volts
  • IEC 60320 C15 Photo of IEC 60320 C15
  • IEC 60309 320P6 (20/16A 250/230VAC)
4 Feet
15 Amps
250 volts
IEC 60320 C15
IEC 60309 320P6 (20/16A 250/230VAC)

1+ :

10+ :

100+ :

  • 5 Feet
  • 15 Amps
  • 250 volts
  • IEC 60320 C15 Photo of IEC 60320 C15
  • IEC 60309 320P6 (20/16A 250/230VAC)
5 Feet
15 Amps
250 volts
IEC 60320 C15
IEC 60309 320P6 (20/16A 250/230VAC)

1+ :

10+ :

100+ :

  • 6 Feet
  • 15 Amps
  • 250 volts
  • IEC 60320 C15 Photo of IEC 60320 C15
  • IEC 60309 320P6 (20/16A 250/230VAC)
6 Feet
15 Amps
250 volts
IEC 60320 C15
IEC 60309 320P6 (20/16A 250/230VAC)

1+ :

10+ :

100+ :

  • 7 Feet
  • 15 Amps
  • 250 volts
  • IEC 60320 C15 Photo of IEC 60320 C15
  • IEC 60309 320P6 (20/16A 250/230VAC)
7 Feet
15 Amps
250 volts
IEC 60320 C15
IEC 60309 320P6 (20/16A 250/230VAC)

1+ :

10+ :

100+ :

  • 8 Feet
  • 15 Amps
  • 250 volts
  • IEC 60320 C15 Photo of IEC 60320 C15
  • IEC 60309 320P6 (20/16A 250/230VAC)
8 Feet
15 Amps
250 volts
IEC 60320 C15
IEC 60309 320P6 (20/16A 250/230VAC)

1+ :

10+ :

100+ :

  • 10 Feet
  • 15 Amps
  • 250 volts
  • IEC 60320 C15 Photo of IEC 60320 C15
  • IEC 60309 320P6 (20/16A 250/230VAC)
10 Feet
15 Amps
250 volts
IEC 60320 C15
IEC 60309 320P6 (20/16A 250/230VAC)

1+ :

10+ :

100+ :

  • 12 Feet
  • 15 Amps
  • 250 volts
  • IEC 60320 C15 Photo of IEC 60320 C15
  • IEC 60309 320P6 (20/16A 250/230VAC)
12 Feet
15 Amps
250 volts
IEC 60320 C15
IEC 60309 320P6 (20/16A 250/230VAC)

1+ :

10+ :

100+ :

  • 15 Feet
  • 15 Amps
  • 250 volts
  • IEC 60320 C15 Photo of IEC 60320 C15
  • IEC 60309 320P6 (20/16A 250/230VAC)
15 Feet
15 Amps
250 volts
IEC 60320 C15
IEC 60309 320P6 (20/16A 250/230VAC)

1+ :

10+ :

100+ :



IEC 60309 320P6 IP44 Splashproof Plug

IEC 60309 320P6 IP44 Splashproof Plug

General Information:

IEC 60309 includes “plugs, socket-outlets and couplers for industrial purposes”. The IEC 60309 standard puts an emphasis on safety through a unique arrangement of pins and earth/ground to ensure that only compatible devices are able to mate. The pin and sleeve design of this standard provides some degree of weatherproofing, indicated by its IP (Ingress Protection) marking.

IP44 is known as the "Splashproof" Rating, which breaks down to sealing against solids no smaller than 1.0mm and spraying water at the connection from any angle. Overall, this standard is common in open-air conditions where high power draw is required and protection from individuals, dust, water and chemicals is desired. The IP code, as defined by standard IEC 60529, classifies the degrees of protection provided against the intrusion of solids and liquids.

What does the IEC 60309 320P6 IP44 Plug into?




IEC 60309 320C6 IP44 ConnectorThe IEC 60309 320P6 IP44 Splashproof plug is designed to plug into its matching IEC 60309 320C6 IP44 Blue Connector. This can be found on power cords, power drops, and temporary power supply boxes in industrial, commercial and construction settings.

14awg-3c North American Color Coded Conductors with SJT Outer Jacket

14awg-3c North American Color Coded Conductors with SJT Outer Jacket

14awg-3c conductors are UL rated to carry 15A @ 250V. North American Color Coding for 3 wire cable designates (1) Black Conductor (1) Green Conductor (1) Neutral Conductor.


Conductor Designations in 125V Circuits

  • Black Conductor - "Hot" or "Leg", the conductor that carries current to the equipment.

  • Green Conductor - Ground conductor
  • White Conductor - "Neutral", the conductor that carries current back to the source.


Conductor Designations in 250V Circuits

  • Black Conductor - "Hot" or "Leg", the conductor that carries current to the equipment.

  • Green Conductor - Ground conductor
  • White Conductor - "Hot" or "Leg", the conductor that carries current to the equipment.

IEC 60320 C15 CONNECTOR (FEMALE)

IEC 60320 C15 CONNECTOR (FEMALE)

General Information:

The IEC 60320 C15 is a grounded 3 Wire connector rated up to 250V & 10 Amps Internationally and 125V/250V & 15 Amps in North America. The C15 mates with a C16 inlet and can also be down graded to a C14 Inlet. C14 Inlet and is commonly used in IT Installations providing power from a PDU to a server, router, switch or other computing device. The C15 is a HIGH TEMPERATURE connector rated up to 120°C, unlike the 70°C rating of the C13. The C15 is commonly used in in electric kettles and other household appliances that involve higher temperatures than a normal C13 is made to withstand. There is a dimple located below the ground pin to ensure that the standard C13 connector cannot be plugged into the C16 Inlet which is used on high temperature applications. This design is utilized to allow this C15 connector to be used on both high temperature applications and standard applications, as to not limit the user. The C15 connector is commonly used with 18awg SJT(OW), 16awg SJT(OW), and 14awg SJT(OW).

What does the IEC 60320 C15 Connect to?





IEC 60320 C14 Inlet
IEC 60320 C16 High Temperature InletThe IEC 60320 type C15 connector is designed to plug into the high temperature rated IEC 320 C16 Inlet. This inlet is commonly found on high performance IT Equipment that reaches heats that exceed the rating of the standard IEC C13 connector. This inlet is designed to reach temperatures up to 120*C. The C15 can also be plugged into a standard non-high temp application C14 Inlet, which is located on a wide variety of IT Equipment like computer monitors and switches.
