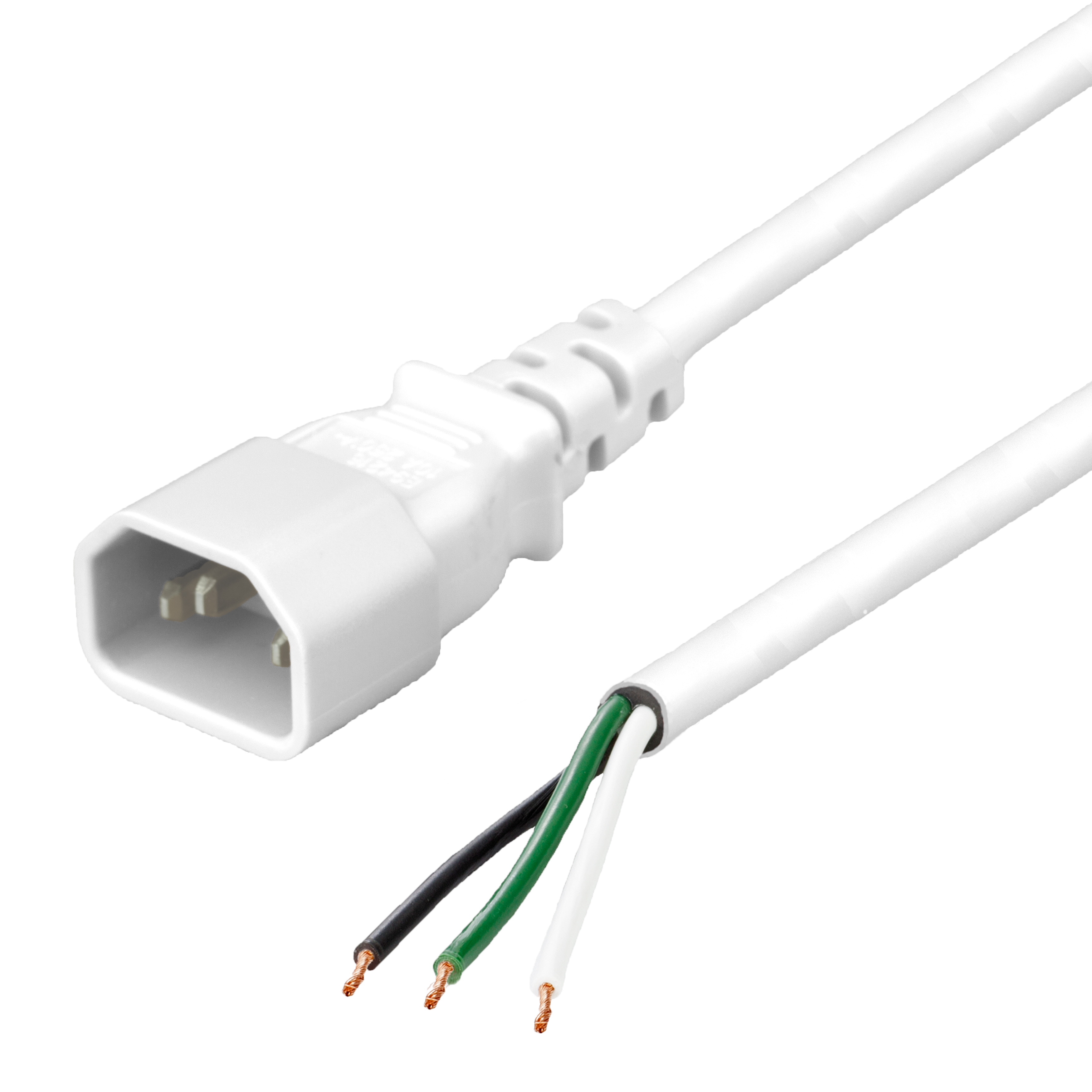

White 15A IEC 60320 C14 to OPEN (ROJ and STRIP) 14awg SJT 105c  Power Cords

White 15A IEC 60320 C14 to OPEN (ROJ and STRIP) 14awg SJT 105c Power Cords

White 15A IEC 60320 C14 to OPEN (ROJ and STRIP) 14awg SJT 105c  Power Cords

For help finding a product or for product additional product information , call us at (860) 763-2100 or email sales@worldcordsets.com


Part Number
Availability
1+
10+
100+

1+ :

10+ :

100+ :

1+ :

10+ :

100+ :

1+ :

10+ :

100+ :

1+ :

10+ :

100+ :

1+ :

10+ :

100+ :

1+ :

10+ :

100+ :

1+ :

10+ :

100+ :

1+ :

10+ :

100+ :

1+ :

10+ :

100+ :

1+ :

10+ :

100+ :

1+ :

10+ :

100+ :

1+ :

10+ :

100+ :

1+ :

10+ :

100+ :

1+ :

10+ :

100+ :



Specifications of Power Supply Cords | Hard Wired ROJ Cords

Current (Amps)
Voltage (Volts)
Connector (Female)
Plug (Male)
Cordage
Approvals
,
Certifications
Country of Origin
Color

IEC 60320 C14 PLUG (MALE)

IEC 60320 C14 PLUG (MALE)

General Information:

The IEC 60320 C14 is a grounded 3 Wire Plug rated up to 250V and 15 Amps. The C14 plug is one of the most commonly used plugs in the data center industry, especially the Inlet version, which is found on the vast majority of Information Technology devices that are produced today. The IEC 60320 C14 is typically used with either 18awg SVT, 18awg SJT(OW), 16awg SJT(OW) or 14awg SJT(OW). The types of cordages used will change the rating of the overall cord set. This plug is very common in consumer, commercial and industrial applications which can create many different names for this plug across different industries like the computer plug, IEC plug, and more generalized names. Some also refer to this as the iec C13 plug, or the c13 power plug because of the C13 connector that it mates with.

What does the IEC 60320 C14 plug into?




IEC 60320 C13 Connector
IEC 60320 C13 Outlet
The IEC 60320 C14 plug is designed to connect to the IEC 320 C13 connector and the outlet. The connector is found on a variety of 10-15A power cords, while the outlet is located on a variety of power supplies. The outlet is most commonly found on Power Distribution Units found in office, commercial, or data center settings as well as Power Adapter bricks.

Open Ended (Whips, Pigtails, ROJ Strip)

Open Ended (Whips, Pigtails, ROJ Strip)

General Information:

The open end of a power supply cord is hard wired to another device, providing power either to our from that device. Unless otherwise noted, our power supply cords come standard with a 2" ROJ (Remove Outer Jacket) and a 1/4" Strip. The ROJ length determines the length of the individual conductors, and the Strip length determines the amount of copper exposed on the end of each conductor. If you require a custom ROJ or Strip length, please don't hesitate to reach out to us.




Open Ended North American Color Code
NACC

Open Ended International Color Code
ICC


International Color Code(ICC) vs. North American Color Code(NACC)


For the majority of our customers, the color code used for the cordage is negligible. However, for OEM customers, or customers dealing with government installations or projects that have highly specified cords the color code used will be important to establish. Our standard color code for our Cut/ Remove of Outer Jacket/ Strip Conductor Job is North American Color Code (NACC).



Ground ColorNeutral ColorLine/ Hot Color

International Color Code (ICC)
Green & Yellow
Blue
Brown


North American Color Code (NACC)GreenWhite
Black


Documents & Drawings
