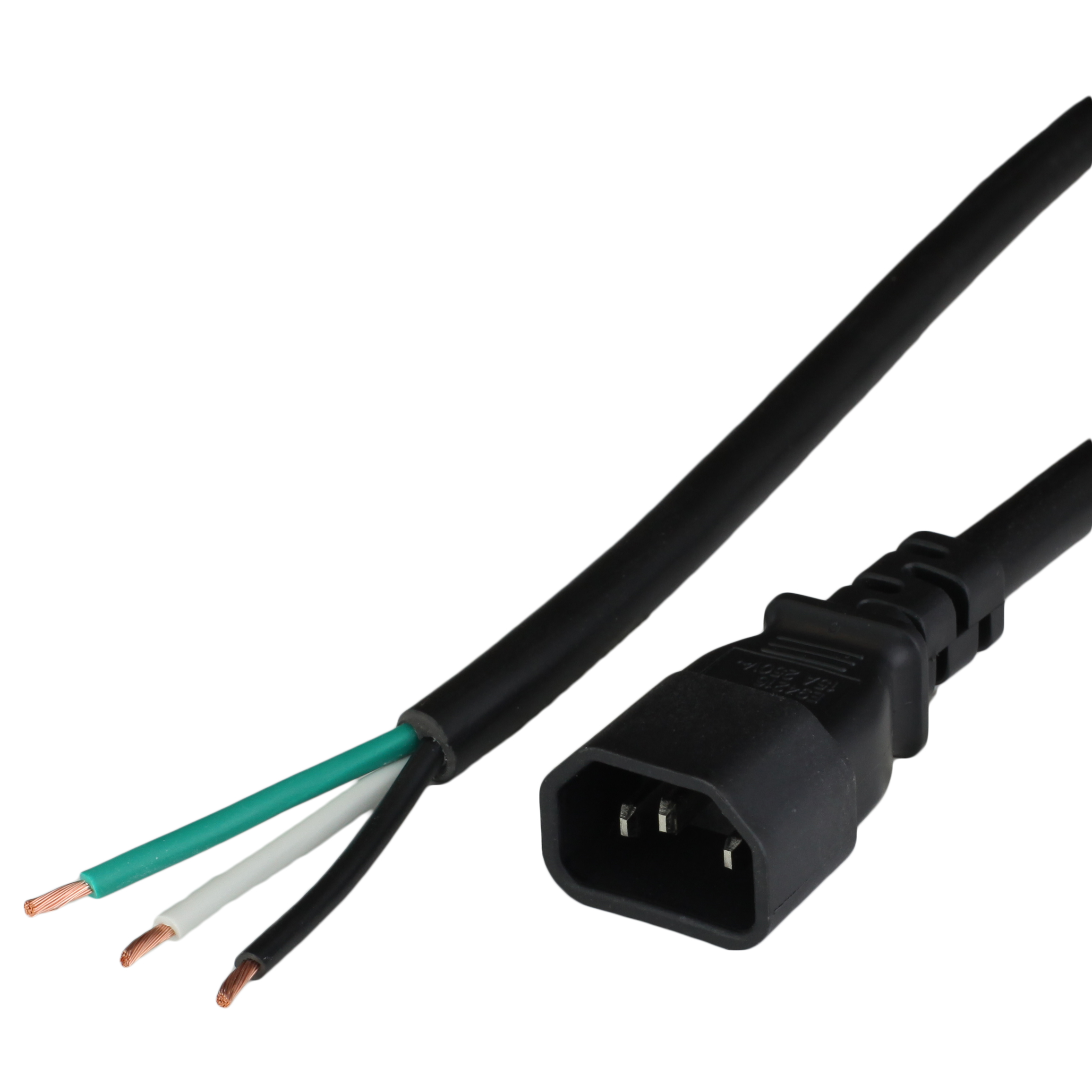

15A IEC 60320 C14 to OPEN Power Cords - BLACK

15A IEC 60320 C14 to OPEN Power Cords - BLACK

15A IEC 60320 C14 to OPEN Power Cords - BLACK

For help finding a product or for product additional product information , call us at (860) 763-2100 or email sales@worldcordsets.com


Part Number
Length
Current (Amps)
Voltage (Volts)
Connector (Female)
Plug (Male)
Availability
1+
10+
100+
3 Feet

1+ :

10+ :

100+ :

4 Feet

1+ :

10+ :

100+ :

  • 4.5 Feet
  • 15 Amps
  • 250 volts
  • Open Ended (Whips, Pigtails) Photo of Open Ended (Whips, Pigtails)
  • IEC 60320 C14 Photo of IEC 60320 C14
4.5 Feet
15 Amps
250 volts
Open Ended (Whips, Pigtails)
IEC 60320 C14

1+ :

10+ :

100+ :

  • 5 Feet
  • 15 Amps
  • 250 volts
  • Open Ended (Whips, Pigtails) Photo of Open Ended (Whips, Pigtails)
  • IEC 60320 C14 Photo of IEC 60320 C14
5 Feet
15 Amps
250 volts
Open Ended (Whips, Pigtails)
IEC 60320 C14

1+ :

10+ :

100+ :

  • 6 Feet
  • 15 Amps
  • 250 volts
  • Open Ended (Whips, Pigtails) Photo of Open Ended (Whips, Pigtails)
  • IEC 60320 C14 Photo of IEC 60320 C14
6 Feet
15 Amps
250 volts
Open Ended (Whips, Pigtails)
IEC 60320 C14

1+ :

10+ :

100+ :

  • 2.0 meters
  • 15 Amps
  • 250 volts
  • Open Ended (Whips, Pigtails) Photo of Open Ended (Whips, Pigtails)
  • IEC 60320 C14 Photo of IEC 60320 C14
2.0 meters
15 Amps
250 volts
Open Ended (Whips, Pigtails)
IEC 60320 C14

1+ :

10+ :

100+ :

9 Feet

1+ :

10+ :

100+ :

  • 25 Feet
25 Feet

1+ :

10+ :

100+ :



Specifications of C14 to OPEN (WHIPS PIGTAILS)

Current (Amps)
Voltage (Volts)
Connector (Female)
Plug (Male)
Cordage
Approvals
Certifications
Color

More information about 15A 14/3 SJT C14 to Open Ended Power Supply Cords

C14 to Open Ended (Also known as Hard Wired ROJ Device Cords) are used to connect a C13 outlet to a device with hard wire terminals. These are commonly found in industrial equipment, or, used by OEM's when assembling products. Our C14 to Open Ended power supply cords come standard with a 2" ROJ (Remove Outer Jacket, also known as Outer Strip Length) and a 1/4" Strip on the conductors (also known as the "Inners"). If you require a different ROJ or Strip length please reach out to us for a quote.


Our 15A C14 to Open power supply cords utilize 14/3 SJT(O)(OW)(OOW) cordage. If you require a specific cordage, please contact us for a custom quote. We offer same day turn around on most custom requests, and typically a maximum of a 2-3 week lead time for non-standard requests.

Lifetime Warranty

Lifetime Warranty

Why do we offer a lifetime warranty?

We offer a lifetime warranty because we know that it won't have to be used. Our products are manufactured using only the highest quality components, and, undergo rigorous quality assurance inspections and testing to ensure all of our products meet our exacting standards. Our lifetime warranty gives you peace of mind that your purchase is 100% guaranteed to work.


What does the warranty cover?

All cords, cables, patch panels, and adapters sold on this website in original unmodified condition are covered under this warranty. Warranty does not cover damage caused by misuse.


How does the warranty work?

To use the lifetime warranty, simply request an RMA and send your defective material back to us and we will either repair or replace the goods and return them back to you in working condition.

UL Listed : E503526

UL Listed : E503526

World Cord Sets strives to deliver the best quality products for the lowest cost, to show our commitment to quality and our understanding of customers expectation for consistence of quality we obtained the UL certification. All of our North American use Power Cord Sets are UL listed under E503529. This means that you can be sure that all of our power cord sets are of the highest quality and are certified for use in the United States.

Manufactured Under ISO: 9001

Manufactured Under ISO: 9001

Our power cord sets are manufactured under an ISO 9001 quality management system to ensure that you get the same outstanding quality with on every order you place.
All of our NorthAmerican use Power Cord Sets are UL listed under E503529. This means that you can be sure that all of our power cord sets are of the highest quality and are certified for use in the United States.

White Label Shipping

White Label Shipping

Are you a reseller looking for Blind or White Label Drop Shipping? We offer both! During checkout simply select "Blind Shipping", then either upload your own packing slip, or, upload your logo and part numbers into ours. You will receive automated tracking emails as soon as your order has been packed so you can keep your customer up to date in realtime. Blind drop shipping has never been easier. Contact us today!

Open Ended (Whips, Pigtails, ROJ Strip)

Open Ended (Whips, Pigtails, ROJ Strip)

General Information:

The open end of a power supply cord is hard wired to another device, providing power either to our from that device. Unless otherwise noted, our power supply cords come standard with a 2" ROJ (Remove Outer Jacket) and a 1/4" Strip. The ROJ length determines the length of the individual conductors, and the Strip length determines the amount of copper exposed on the end of each conductor. If you require a custom ROJ or Strip length, please don't hesitate to reach out to us.




Open Ended North American Color Code
NACC

Open Ended International Color Code
ICC


International Color Code(ICC) vs. North American Color Code(NACC)


For the majority of our customers, the color code used for the cordage is negligible. However, for OEM customers, or customers dealing with government installations or projects that have highly specified cords the color code used will be important to establish. Our standard color code for our Cut/ Remove of Outer Jacket/ Strip Conductor Job is North American Color Code (NACC).



Ground ColorNeutral ColorLine/ Hot Color

International Color Code (ICC)
Green & Yellow
Blue
Brown


North American Color Code (NACC)GreenWhite
Black


IEC 60320 C14 PLUG (MALE)

IEC 60320 C14 PLUG (MALE)

General Information:

The IEC 60320 C14 is a grounded 3 Wire Plug rated up to 250V and 15 Amps. The C14 plug is one of the most commonly used plugs in the data center industry, especially the Inlet version, which is found on the vast majority of Information Technology devices that are produced today. The IEC 60320 C14 is typically used with either 18awg SVT, 18awg SJT(OW), 16awg SJT(OW) or 14awg SJT(OW). The types of cordages used will change the rating of the overall cord set. This plug is very common in consumer, commercial and industrial applications which can create many different names for this plug across different industries like the computer plug, IEC plug, and more generalized names. Some also refer to this as the iec C13 plug, or the c13 power plug because of the C13 connector that it mates with.

What does the IEC 60320 C14 plug into?




IEC 60320 C13 Connector
IEC 60320 C13 Outlet
The IEC 60320 C14 plug is designed to connect to the IEC 320 C13 connector and the outlet. The connector is found on a variety of 10-15A power cords, while the outlet is located on a variety of power supplies. The outlet is most commonly found on Power Distribution Units found in office, commercial, or data center settings as well as Power Adapter bricks.

14awg-3c North American Color Coded Conductors with SJT Outer Jacket

14awg-3c North American Color Coded Conductors with SJT Outer Jacket

14awg-3c conductors are UL rated to carry 15A @ 250V. North American Color Coding for 3 wire cable designates (1) Black Conductor (1) Green Conductor (1) Neutral Conductor.


Conductor Designations in 125V Circuits

  • Black Conductor - "Hot" or "Leg", the conductor that carries current to the equipment.

  • Green Conductor - Ground conductor
  • White Conductor - "Neutral", the conductor that carries current back to the source.


Conductor Designations in 250V Circuits

  • Black Conductor - "Hot" or "Leg", the conductor that carries current to the equipment.

  • Green Conductor - Ground conductor
  • White Conductor - "Hot" or "Leg", the conductor that carries current to the equipment.
