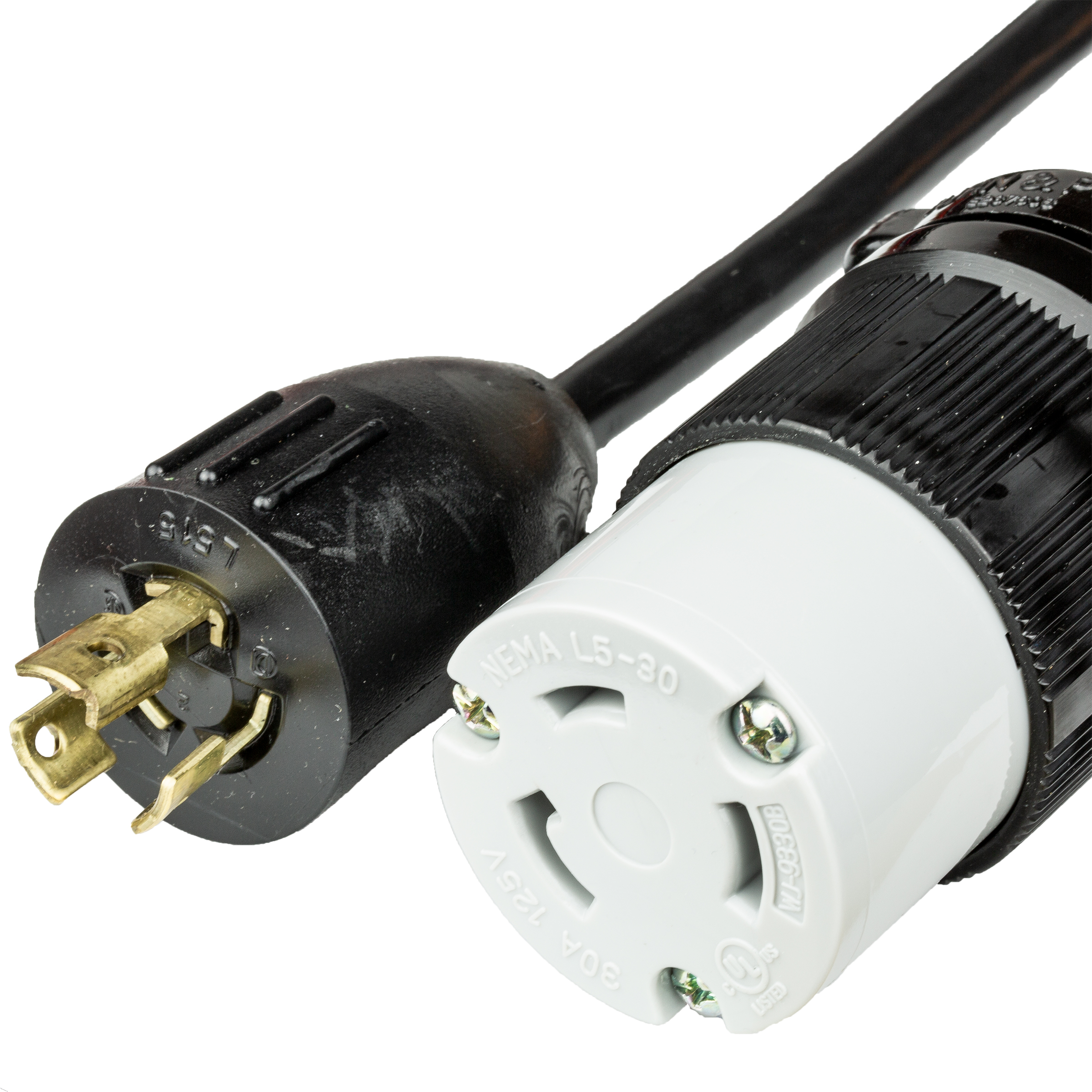

Black NEMA L5-15P to User Attached NEMA L5-30R Power Cords

Black NEMA L5-15P to User Attached NEMA L5-30R Power Cords

Black NEMA L5-15P to User Attached NEMA L5-30R Power Cords is designed to adapt a 15A Locking Outlet or Connector to a 30A one.

For help finding a product or for product additional product information , call us at (860) 763-2100 or email sales@worldcordsets.com


Part Number
Length
Current (Amps)
Voltage (Volts)
Connector (Female)
Plug (Male)
Availability
1+
10+
100+
  • 1 Foot
  • 15 Amps
  • 125 volts
  • NEMA L5-30R Photo of NEMA L5-30R
  • NEMA L5-15P Photo of NEMA L5-15P
1 Foot
15 Amps
125 volts
NEMA L5-30R
NEMA L5-15P

1+ :

10+ :

100+ :



NEMA L5-15P

NEMA L5-15P


General Information:

The NEMA L5-15P is a 3 Wire grounded plug with a hot, neutral and ground pin rated up to 125V and 15A. The plug can be locked into place on the matching receptacle which prevents nuisance disconnection. This feature makes this plug popular in commercial and industrial settings where high traffic or moving of equipment is common. This plug can be distinguished against other NEMA Locking plugs by its small blade circumference on the plug head and inward turned tabs on the neutral blade.

What does the NEMA L5-15P Plug into?





NEMA L5-15R Connector
NEMA L5-15R OutletThe NEMA L5-15P connects to both the NEMA L5-15R Connector which is commonly found on extension cords and power drops, and the outlet which is commonly found in industrial and commercial settings where a locking feature is required to prevent nuisance unplugging of the device.

NEMA L5-30R Twist-Lock

NEMA L5-30R Twist-Lock

General Information:

NEMA L5-30R is rated up to 125VAC and 30A. This connector couples with the L5-30P and locks into place preventing nuisance disconnection. This feature makes it popular in commercial and industrial settings where there is high traffic. This connector is common in the L5-30 Extension Cord Series where it is used to extend power from a L5-30R wall receptacle or connector to a certain location for convenience.

What does the NEMA L5-30R connect to?




NEMA L5-30P Locking PlugThe NEMA L530R Locking Connector is designed to be twisted into a locking position with the NEMA L5-30P Locking Plug. This plug is commonly found on higher powered devices that are used in buildings where standard 125V power supply is present, in a location where there is high traffic.
