Black NEMA L5-15P to User Attached NEMA L5-20R Power Cords

Black NEMA L5-15P to User Attached NEMA L5-20R Power Cords

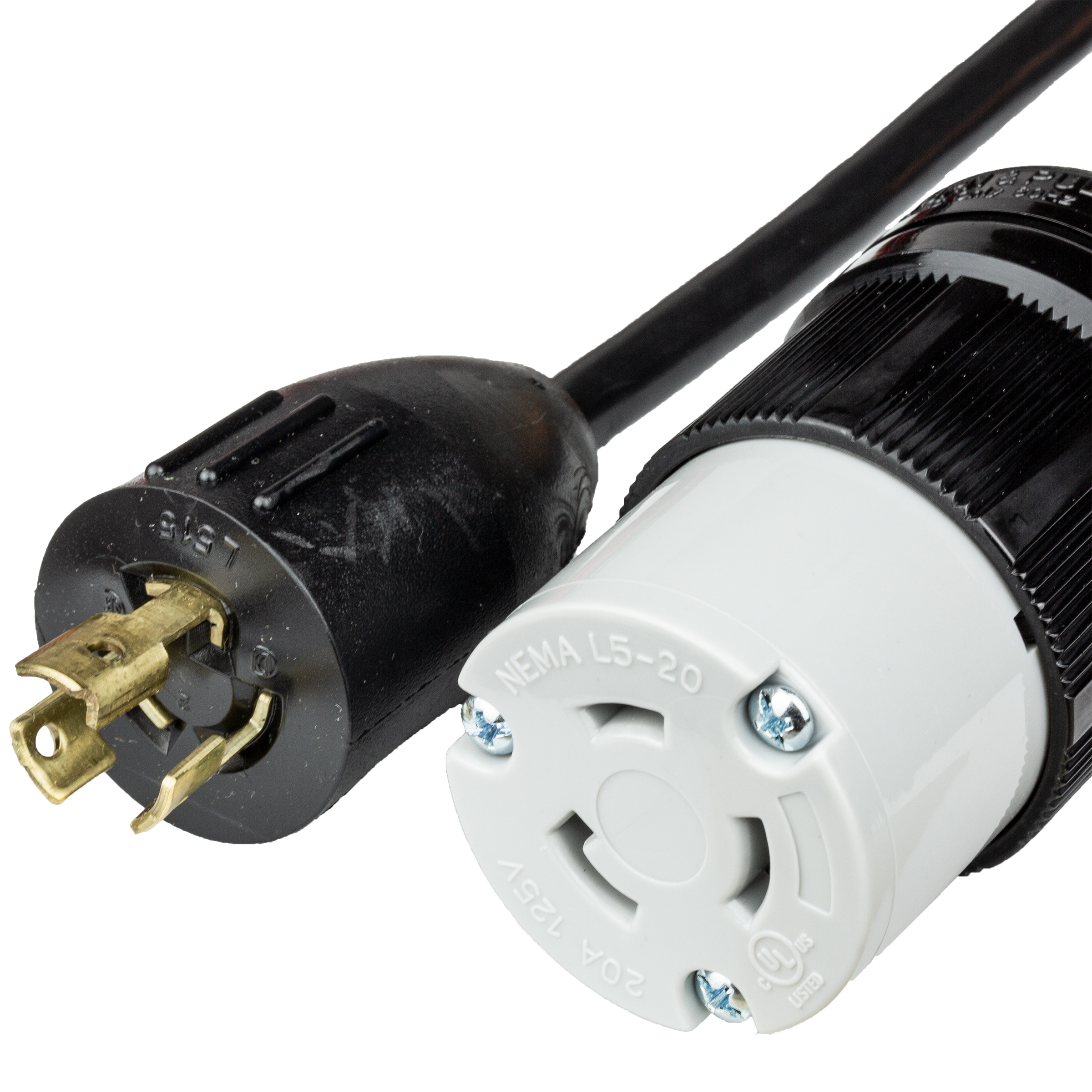

Black NEMA L5-15P to User Attached NEMA L5-20R Power Cords is designed to adapt a 15A Locking Outlet or Connector to a 20A

For help finding a product or for product additional product information , call us at (860) 763-2100 or email sales@worldcordsets.com


Part Number
Current (Amps)
Length
Voltage (Volts)
Connector (Female)
Plug (Male)
Availability
1+
10+
100+
  • 15 Amps
  • 1 Foot
  • 125 volts
  • NEMA L5-20R Photo of NEMA L5-20R
  • NEMA L5-15P Photo of NEMA L5-15P
15 Amps
1 Foot
125 volts
NEMA L5-20R
NEMA L5-15P

1+ :

10+ :

100+ :

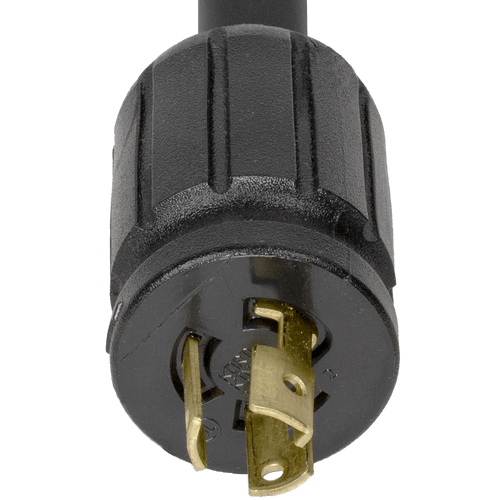

NEMA L5-15P

NEMA L5-15P


General Information:

The NEMA L5-15P is a 3 Wire grounded plug with a hot, neutral and ground pin rated up to 125V and 15A. The plug can be locked into place on the matching receptacle which prevents nuisance disconnection. This feature makes this plug popular in commercial and industrial settings where high traffic or moving of equipment is common. This plug can be distinguished against other NEMA Locking plugs by its small blade circumference on the plug head and inward turned tabs on the neutral blade.

What does the NEMA L5-15P Plug into?





NEMA L5-15R Connector
NEMA L5-15R OutletThe NEMA L5-15P connects to both the NEMA L5-15R Connector which is commonly found on extension cords and power drops, and the outlet which is commonly found in industrial and commercial settings where a locking feature is required to prevent nuisance unplugging of the device.

NEMA L5-20R Twist-Lock

NEMA L5-20R Twist-Lock

General Information:

The NEMA L5-20R Twist-Lock Connector is rated up to 125VAC and 20A. This couples with the L5-20P and locks into place, eliminating nuisance disconnection. This makes this connector common in commercial and industrial settings where there is high traffic. This connector is found on our L5-20 Extension Cord Series, which is used to extend power from an existing L5-20R wall receptacle or connector to a certain location for convenience.

What does the NEMA L5-20R Connect to?




NEMA L5-20P Locking PlugThe NEMA L5-20R Locking Connector is designed to be twisted into a locking position with the NEMA L5-20P Locking Plug. These are commonly used with smaller devices using a standard 125V Power supply, used in locations with high traffic.

Documents & Drawings
