Black NEMA L5-15P to User Attached NEMA 5-15R Power Cords

Black NEMA L5-15P to User Attached NEMA 5-15R Power Cords

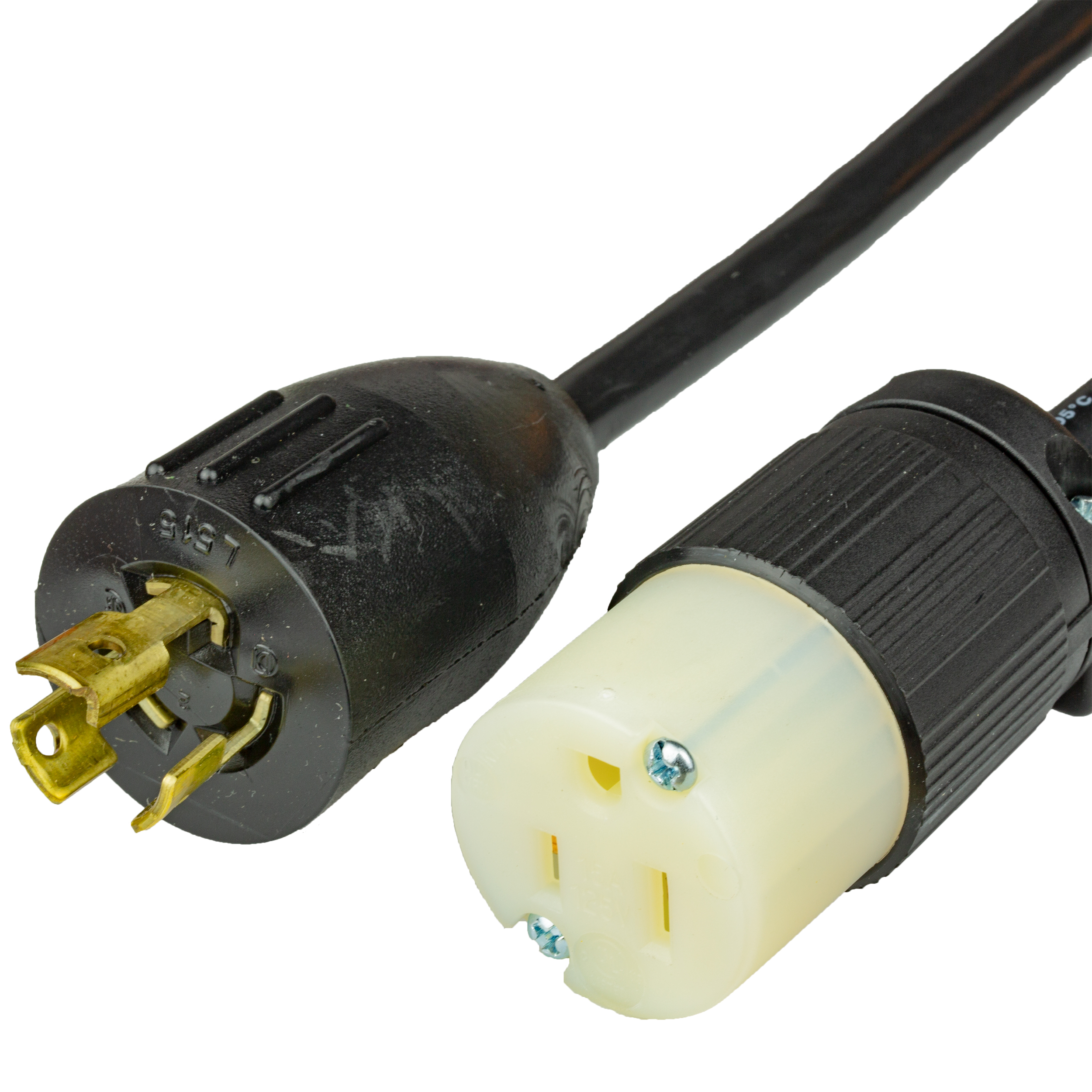

Black NEMA L5-15P to User Attached NEMA 5-15R Power Cords is designed to adapt a Locking Outlet or Connector to a straight blade NEMA connector.

For help finding a product or for product additional product information , call us at (860) 763-2100 or email sales@worldcordsets.com


Part Number
Length
Current (Amps)
Voltage (Volts)
Connector (Female)
Plug (Male)
Availability
1+
10+
100+


NEMA L5-15P

NEMA L5-15P


General Information:

The NEMA L5-15P is a 3 Wire grounded plug with a hot, neutral and ground pin rated up to 125V and 15A. The plug can be locked into place on the matching receptacle which prevents nuisance disconnection. This feature makes this plug popular in commercial and industrial settings where high traffic or moving of equipment is common. This plug can be distinguished against other NEMA Locking plugs by its small blade circumference on the plug head and inward turned tabs on the neutral blade.

What does the NEMA L5-15P Plug into?





NEMA L5-15R Connector
NEMA L5-15R OutletThe NEMA L5-15P connects to both the NEMA L5-15R Connector which is commonly found on extension cords and power drops, and the outlet which is commonly found in industrial and commercial settings where a locking feature is required to prevent nuisance unplugging of the device.

NEMA 5-15R

NEMA 5-15R

The NEMA 5-15R is a 3 Wire grounded connector with forced polarity rated up to 125VAC and 15A. The connector can pair with either the 1-15P or the NEMA 5-15P. 5-15P is your standard household plug used for to connect small appliances such as TV's, Microwaves, hairdryers, etc to a wall outlet. The NEMA 5-15P is compatible with a Nema 5-20R T-Slot outlet, which is commonly found in new home installations. This is commonly found on our NEMA 5-15 Extension cords, which are commonly used to extend a 125V 15A power source to a location off of a standard 5-15R wall receptacle.

Documents & Drawings
