Black NEMA L5-15P to IEC 60320 C15 High Temp Power Cords

Black NEMA L5-15P to IEC 60320 C15 High Temp Power Cords

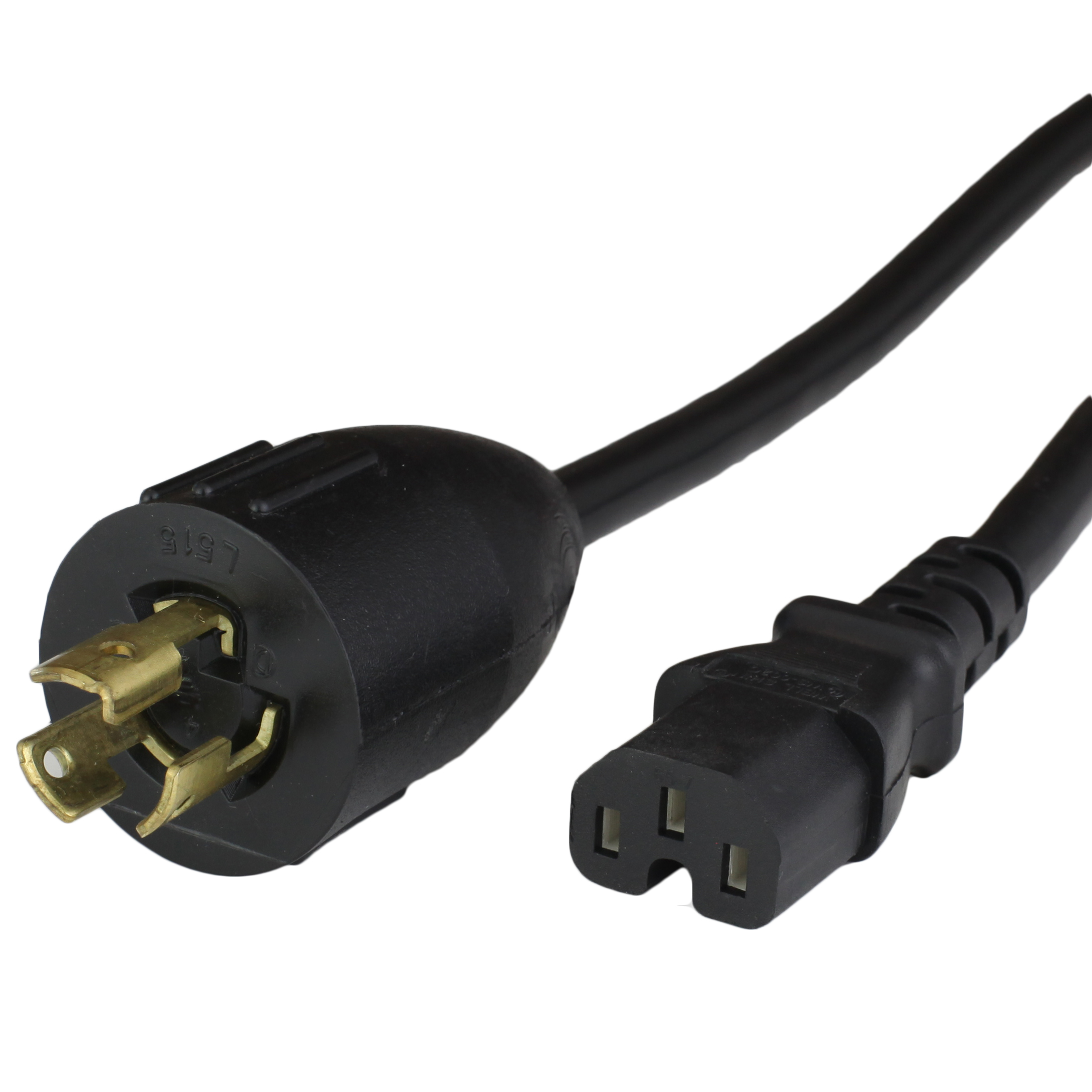

NEMA L5-15P to C15 15A 125V Power Supply Cords. The plug is a twist lock and mates with a NEMA L5-15R power supply outlet. The C15 (C-15) according to IEC 60320 (IEC320) mates with a C16 (C-16) or C14 (C-14) inlet on the equipment end. To be used with PDUs, servers, and other computer related equipment The C-15 is a HIGH-TEMPERATURE connector.

For help finding a product or for product additional product information , call us at (860) 763-2100 or email sales@worldcordsets.com


Part Number
Length
Current (Amps)
Voltage (Volts)
Connector (Female)
Plug (Male)
Availability
1+
10+
100+
  • 3 Feet
  • 15 Amps
  • 125 volts
  • IEC 60320 C15 Photo of IEC 60320 C15
  • NEMA L5-15P Photo of NEMA L5-15P
3 Feet
15 Amps
125 volts
IEC 60320 C15
NEMA L5-15P

1+ :

10+ :

100+ :



Specifications of NEMA L5-15P to IEC60320 C15 Power Cords

Current (Amps)
Voltage (Volts)
Connector (Female)
Plug (Male)
Cordage
Approvals
Certifications
Country of Origin

NEMA L5-15P

NEMA L5-15P


General Information:

The NEMA L5-15P is a 3 Wire grounded plug with a hot, neutral and ground pin rated up to 125V and 15A. The plug can be locked into place on the matching receptacle which prevents nuisance disconnection. This feature makes this plug popular in commercial and industrial settings where high traffic or moving of equipment is common. This plug can be distinguished against other NEMA Locking plugs by its small blade circumference on the plug head and inward turned tabs on the neutral blade.

What does the NEMA L5-15P Plug into?





NEMA L5-15R Connector
NEMA L5-15R OutletThe NEMA L5-15P connects to both the NEMA L5-15R Connector which is commonly found on extension cords and power drops, and the outlet which is commonly found in industrial and commercial settings where a locking feature is required to prevent nuisance unplugging of the device.

IEC 60320 C15 CONNECTOR (FEMALE)

IEC 60320 C15 CONNECTOR (FEMALE)

General Information:

The IEC 60320 C15 is a grounded 3 Wire connector rated up to 250V & 10 Amps Internationally and 125V/250V & 15 Amps in North America. The C15 mates with a C16 inlet and can also be down graded to a C14 Inlet. C14 Inlet and is commonly used in IT Installations providing power from a PDU to a server, router, switch or other computing device. The C15 is a HIGH TEMPERATURE connector rated up to 120°C, unlike the 70°C rating of the C13. The C15 is commonly used in in electric kettles and other household appliances that involve higher temperatures than a normal C13 is made to withstand. There is a dimple located below the ground pin to ensure that the standard C13 connector cannot be plugged into the C16 Inlet which is used on high temperature applications. This design is utilized to allow this C15 connector to be used on both high temperature applications and standard applications, as to not limit the user. The C15 connector is commonly used with 18awg SJT(OW), 16awg SJT(OW), and 14awg SJT(OW).

What does the IEC 60320 C15 Connect to?





IEC 60320 C14 Inlet
IEC 60320 C16 High Temperature InletThe IEC 60320 type C15 connector is designed to plug into the high temperature rated IEC 320 C16 Inlet. This inlet is commonly found on high performance IT Equipment that reaches heats that exceed the rating of the standard IEC C13 connector. This inlet is designed to reach temperatures up to 120*C. The C15 can also be plugged into a standard non-high temp application C14 Inlet, which is located on a wide variety of IT Equipment like computer monitors and switches.


White Label Shipping

White Label Shipping

Are you a reseller looking for Blind or White Label Drop Shipping? We offer both! During checkout simply select "Blind Shipping", then either upload your own packing slip, or, upload your logo and part numbers into ours. You will receive automated tracking emails as soon as your order has been packed so you can keep your customer up to date in realtime. Blind drop shipping has never been easier. Contact us today!

Manufactured Under ISO: 9001

Manufactured Under ISO: 9001

Our power cord sets are manufactured under an ISO 9001 quality management system to ensure that you get the same outstanding quality with on every order you place.
All of our NorthAmerican use Power Cord Sets are UL listed under E503529. This means that you can be sure that all of our power cord sets are of the highest quality and are certified for use in the United States.

UL Listed : E503526

UL Listed : E503526

World Cord Sets strives to deliver the best quality products for the lowest cost, to show our commitment to quality and our understanding of customers expectation for consistence of quality we obtained the UL certification. All of our North American use Power Cord Sets are UL listed under E503529. This means that you can be sure that all of our power cord sets are of the highest quality and are certified for use in the United States.

Lifetime Warranty

Lifetime Warranty

Why do we offer a lifetime warranty?

We offer a lifetime warranty because we know that it won't have to be used. Our products are manufactured using only the highest quality components, and, undergo rigorous quality assurance inspections and testing to ensure all of our products meet our exacting standards. Our lifetime warranty gives you peace of mind that your purchase is 100% guaranteed to work.


What does the warranty cover?

All cords, cables, patch panels, and adapters sold on this website in original unmodified condition are covered under this warranty. Warranty does not cover damage caused by misuse.


How does the warranty work?

To use the lifetime warranty, simply request an RMA and send your defective material back to us and we will either repair or replace the goods and return them back to you in working condition.

Documents & Drawings
