Black 15A C14 C21 Power Cords

Black 15A C14 C21 Power Cords

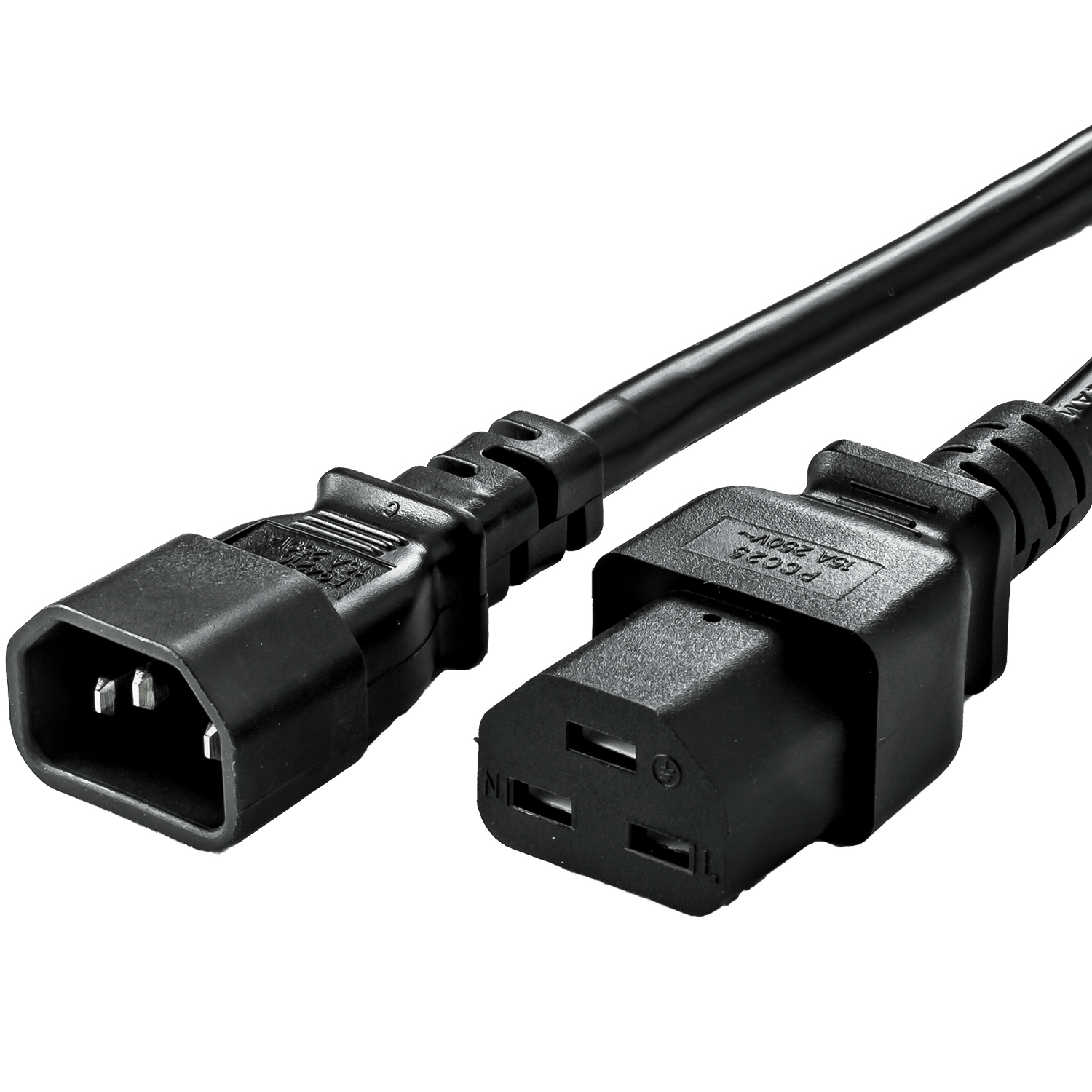

Our Black IEC 60320 Standard C14 to C21 power cords are rated for use up to 15A and 250V. IEC 320 power cords are typically used in data centers to connect a PDU to a computer or server.

For help finding a product or for product additional product information , call us at (860) 763-2100 or email sales@worldcordsets.com


Part Number
Length
Availability
1+
10+
100+
  • 3 Feet
3 Feet

1+ :

10+ :

100+ :

  • 6 Feet
6 Feet

1+ :

10+ :

100+ :

  • 10 Feet
10 Feet

1+ :

10+ :

100+ :

  • 15 Feet
15 Feet

1+ :

10+ :

100+ :



Specifications of IEC 60320 C14 C21 Power Cords

Current (Amps)
Voltage (Volts)
Connector (Female)
Plug (Male)
Cordage
Approvals
Certifications
Country of Origin
Color

General Information about C14 to C21 Power Cords

C14 to C21 power cords utilize 14awg conductors with an SJT outer jacket. C14 to C21 cord sets are used to connect a C13 outlet on a PDU to a C22 inlet on IT equipment. These are most commonly found in data centers and enterprise networking rooms. Other jacket types are available upon request, including SJTO, SJTOW, SJTOOW.

IEC 60320 C14 PLUG (MALE)

IEC 60320 C14 PLUG (MALE)

General Information:

The IEC 60320 C14 is a grounded 3 Wire Plug rated up to 250V and 15 Amps. The C14 plug is one of the most commonly used plugs in the data center industry, especially the Inlet version, which is found on the vast majority of Information Technology devices that are produced today. The IEC 60320 C14 is typically used with either 18awg SVT, 18awg SJT(OW), 16awg SJT(OW) or 14awg SJT(OW). The types of cordages used will change the rating of the overall cord set. This plug is very common in consumer, commercial and industrial applications which can create many different names for this plug across different industries like the computer plug, IEC plug, and more generalized names. Some also refer to this as the iec C13 plug, or the c13 power plug because of the C13 connector that it mates with.

What does the IEC 60320 C14 plug into?




IEC 60320 C13 Connector
IEC 60320 C13 Outlet
The IEC 60320 C14 plug is designed to connect to the IEC 320 C13 connector and the outlet. The connector is found on a variety of 10-15A power cords, while the outlet is located on a variety of power supplies. The outlet is most commonly found on Power Distribution Units found in office, commercial, or data center settings as well as Power Adapter bricks.

IEC 60320 C21 CONNECTOR (FEMALE)

IEC 60320 C21 CONNECTOR (FEMALE)

General Information:

The IEC 60320 C21 is a grounded 3 Wire connector rated up to 250V and 20 Amps. The C21 mates with a C22 or C20 inlet, and is commonly used in a jumper cable scenario in IT Installations providing power from a PDU to a server, router, switch or other computing device. The C21 is a HIGH TEMPERATURE version of the C19 connector, with a maximum pin temperature of 155°C instead of the standard 65°C of a C19, and is typically used in high powered blade servers, large network routers, and other IT equipment that draws more power than a standard C13 can accommodate. The corners are beveled so that a standard C19 cannot be plugged into the C22 Inlet since it is not high temperature rated and could be a fire hazard.




What does the IEC 60320 C21 Connect to?




IEC 60320 C22 InletThe IEC 60320 C21 connectors is designed to connect to the IEC 60320 C22 Inlet, which is commonly found on high powered IT Equipment that exceeds the standard 65*C Temperature rating of a C20 Inlet. These inlets are found on switches and routers.


14awg-3c North American Color Coded Conductors with SJT Outer Jacket

14awg-3c North American Color Coded Conductors with SJT Outer Jacket

14awg-3c conductors are UL rated to carry 15A @ 250V. North American Color Coding for 3 wire cable designates (1) Black Conductor (1) Green Conductor (1) Neutral Conductor.


Conductor Designations in 125V Circuits

  • Black Conductor - "Hot" or "Leg", the conductor that carries current to the equipment.

  • Green Conductor - Ground conductor
  • White Conductor - "Neutral", the conductor that carries current back to the source.


Conductor Designations in 250V Circuits

  • Black Conductor - "Hot" or "Leg", the conductor that carries current to the equipment.

  • Green Conductor - Ground conductor
  • White Conductor - "Hot" or "Leg", the conductor that carries current to the equipment.

White Label Shipping

White Label Shipping

Are you a reseller looking for Blind or White Label Drop Shipping? We offer both! During checkout simply select "Blind Shipping", then either upload your own packing slip, or, upload your logo and part numbers into ours. You will receive automated tracking emails as soon as your order has been packed so you can keep your customer up to date in realtime. Blind drop shipping has never been easier. Contact us today!

Manufactured Under ISO: 9001

Manufactured Under ISO: 9001

Our power cord sets are manufactured under an ISO 9001 quality management system to ensure that you get the same outstanding quality with on every order you place.
All of our NorthAmerican use Power Cord Sets are UL listed under E503529. This means that you can be sure that all of our power cord sets are of the highest quality and are certified for use in the United States.

UL Listed : E503526

UL Listed : E503526

World Cord Sets strives to deliver the best quality products for the lowest cost, to show our commitment to quality and our understanding of customers expectation for consistence of quality we obtained the UL certification. All of our North American use Power Cord Sets are UL listed under E503529. This means that you can be sure that all of our power cord sets are of the highest quality and are certified for use in the United States.

Lifetime Warranty

Lifetime Warranty

Why do we offer a lifetime warranty?

We offer a lifetime warranty because we know that it won't have to be used. Our products are manufactured using only the highest quality components, and, undergo rigorous quality assurance inspections and testing to ensure all of our products meet our exacting standards. Our lifetime warranty gives you peace of mind that your purchase is 100% guaranteed to work.


What does the warranty cover?

All cords, cables, patch panels, and adapters sold on this website in original unmodified condition are covered under this warranty. Warranty does not cover damage caused by misuse.


How does the warranty work?

To use the lifetime warranty, simply request an RMA and send your defective material back to us and we will either repair or replace the goods and return them back to you in working condition.
