International Plug Type J Power Cords | Swiss Power Cables

Identifying the different Italy power plug J types.

There are two types of IEC Type J plugs found in Italy. The 10 Amp version of the CEI 23-16 has 3 pins horizontally spaced that are 19mm long and 4mm wide, and span 19mm. The 16 Amp version of the CEI 23-16 looks identical to the 10 Amp version at first glance, however the pins are spaced differently. They are 21mm long and 5mm wide and span 30.5mm. This prevents electrical hazard from connecting the 16 amp plug into the 10 amp outlet. There are dual rated outlets and connectors available that have odd shaped exterior connection holes to allow mating with both variations.

Commonly found plug types in Italy.

In Italy, they use several types of power cables for different household appliances. The three primary types of plugs are Type C, F and J. Type C is an ungrounded plug, commonly referred to as the Europlug and is used to power smaller electronics like televisions and electric razors. Type F is used for larger appliances like microwaves, hairdryers, and refrigerators. Type J, which this product line is focused on is for standard electronics that require a grounding conductor. This includes computers, monitors, lights, kitchen appliances and other general use electrical appliances.

  • Color : Black Plug (Male) : Brazil NBR14136 10A 250V (3 Pin 3.7mm Grounded) Plug (Male) : Brazil NBR14136 16A 3x 4.5mm Pin Grounded Plug (Male) : Brazil NBR14136 20A 250V (3 Prong 4.5mm Pin Grounded)
  • Color : Black Plug (Male) : Brazil NBR14136 10A 250V (3 Pin 3.7mm Grounded) Plug (Male) : Brazil NBR14136 16A 3x 4.5mm Pin Grounded Plug (Male) : Brazil NBR14136 20A 250V (3 Prong 4.5mm Pin Grounded)

Black Type J Switzerland SEV1011 to IEC320 C5 2.5A 250V

Specifications

6 Feet
2.5 Amps
250 volts
IEC 60320 C5
Switzerland SEV 1011 3-Pin 10A (M) Type J
0.75mm2 -3c HO5VV-F
ESTI
RoHS
Black

Countries of Certification The below list may not be a complete list of the applicable countries for this product. Contact us if you are inquiring about a specific country.

Select Length

6 FT
Loading product data...
Money-Back Gaurantee Same Day Shipping

Add To Cart

Need assistance? Give us a call, 860-763-2100




Black Type J Switzerland SEV1011 to IEC320 C13 10A 250V

Specifications

6 Feet
10 Amps
250 volts
IEC 60320 C13
Switzerland SEV 1011 3-Pin 10A (M) Type J
0.75mm2 -3c HO5VV-F
DEMKO
ESTI
VDE
RoHS
Black

Countries of Certification The below list may not be a complete list of the applicable countries for this product. Contact us if you are inquiring about a specific country.

Germany

Select Length

6 FT
8.2 FT
9.8 FT
Loading product data...
Money-Back Gaurantee Same Day Shipping

Add To Cart

Need assistance? Give us a call, 860-763-2100




  • Color : Black Plug (Male) : Brazil NBR14136 10A 250V (3 Pin 3.7mm Grounded) Plug (Male) : Brazil NBR14136 16A 3x 4.5mm Pin Grounded Plug (Male) : Brazil NBR14136 20A 250V (3 Prong 4.5mm Pin Grounded)
  • Color : Black Plug (Male) : Brazil NBR14136 10A 250V (3 Pin 3.7mm Grounded) Plug (Male) : Brazil NBR14136 16A 3x 4.5mm Pin Grounded Plug (Male) : Brazil NBR14136 20A 250V (3 Prong 4.5mm Pin Grounded)

Black Type J Switzerland SEV1011 to IEC320 C13 Left Angle 10A 250V

Specifications

2.5 meters
10 Amps
250 volts
IEC 60320 C13 Left Angle
Switzerland SEV 1011 3-Pin 10A (M) Type J
1.0mm2 -3c H05VV-F
SEV
RoHS
Black

Countries of Certification The below list may not be a complete list of the applicable countries for this product. Contact us if you are inquiring about a specific country.

Select Length

8.2 FT
Loading product data...
Money-Back Gaurantee Same Day Shipping

Add To Cart

Need assistance? Give us a call, 860-763-2100




  • Color : Black Plug (Male) : Brazil NBR14136 10A 250V (3 Pin 3.7mm Grounded) Plug (Male) : Brazil NBR14136 16A 3x 4.5mm Pin Grounded Plug (Male) : Brazil NBR14136 20A 250V (3 Prong 4.5mm Pin Grounded)
  • Color : Black Plug (Male) : Brazil NBR14136 10A 250V (3 Pin 3.7mm Grounded) Plug (Male) : Brazil NBR14136 16A 3x 4.5mm Pin Grounded Plug (Male) : Brazil NBR14136 20A 250V (3 Prong 4.5mm Pin Grounded)

Black Type J Switzerland SEV1011 to IEC320 C13 Right Angle 10A 250V

Specifications

2.5 meters
10 Amps
250 volts
IEC 60320 C13 Right Angle
Switzerland SEV 1011 3-Pin 10A (M) Type J
1.0mm2 -3c H05VV-F
SEV
RoHS
Black

Countries of Certification The below list may not be a complete list of the applicable countries for this product. Contact us if you are inquiring about a specific country.

Select Length

8.2 FT
Loading product data...
Money-Back Gaurantee Same Day Shipping

Add To Cart

Need assistance? Give us a call, 860-763-2100




  • Color : Black Plug (Male) : Brazil NBR14136 10A 250V (3 Pin 3.7mm Grounded) Plug (Male) : Brazil NBR14136 16A 3x 4.5mm Pin Grounded Plug (Male) : Brazil NBR14136 20A 250V (3 Prong 4.5mm Pin Grounded)
  • Color : Black Connector (Female) : IEC 60320 C15
  • Color : Black Plug (Male) : Brazil NBR14136 10A 250V (3 Pin 3.7mm Grounded) Plug (Male) : Brazil NBR14136 16A 3x 4.5mm Pin Grounded Plug (Male) : Brazil NBR14136 20A 250V (3 Prong 4.5mm Pin Grounded)
  • Color : Black Connector (Female) : IEC 60320 C15

Black Type J Switzerland SEV1011 to IEC320 C15 10A 250V

Specifications

2.5 meters
10 Amps
250 volts
IEC 60320 C15
Switzerland SEV 1011 3-Pin 10A (M) Type J
1.0mm2 -3c H05VV-F
Argentina IRAM
RoHS
Black

Countries of Certification The below list may not be a complete list of the applicable countries for this product. Contact us if you are inquiring about a specific country.

Select Length

8.2 FT
Loading product data...
Money-Back Gaurantee Same Day Shipping

Add To Cart

Need assistance? Give us a call, 860-763-2100

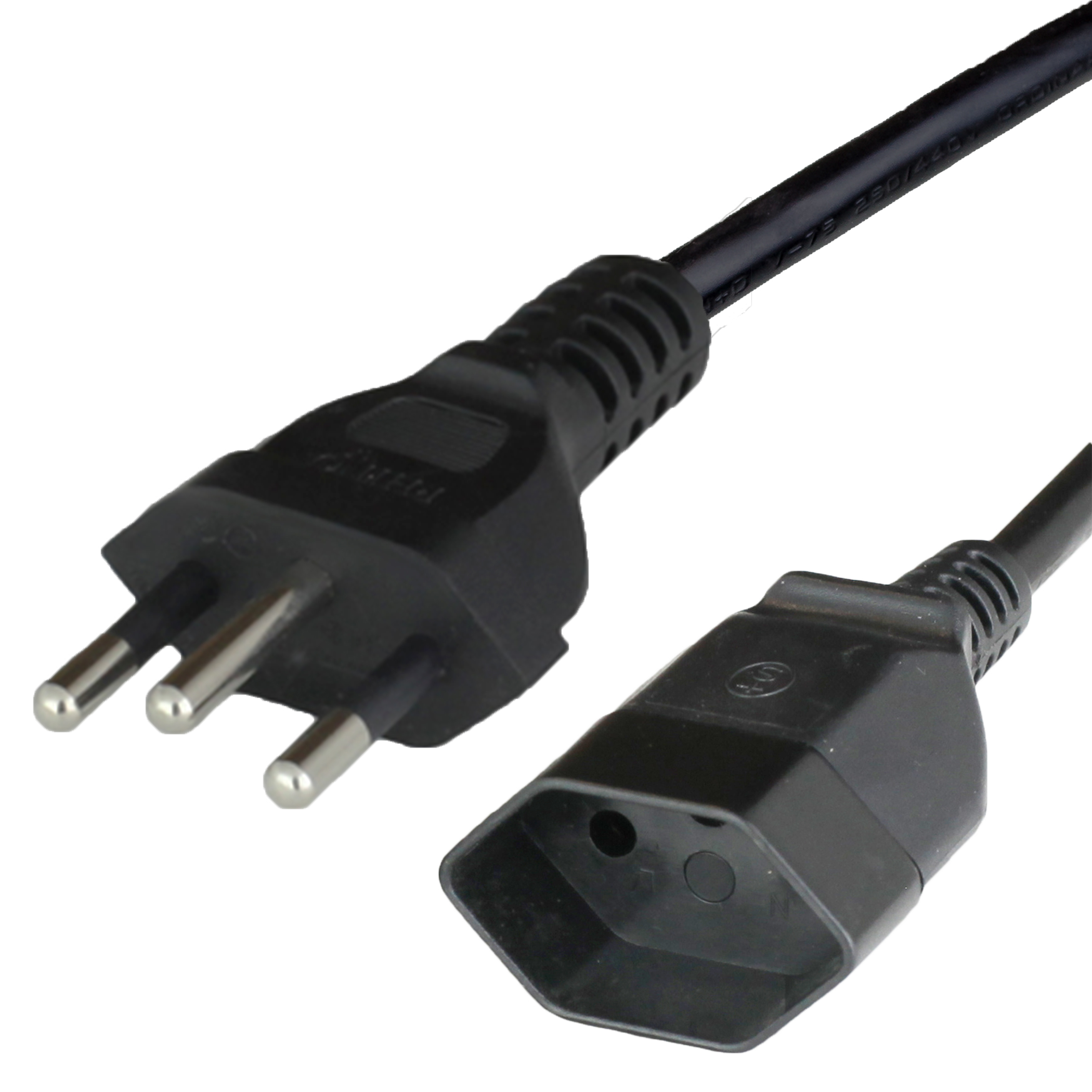

Black Switzerland Extension Cable SEV1011 to SEV1011 10A 250V

Specifications

25 Feet
10 Amps
250 volts
Switzerland SEV 1011 3-Pin 10A (F) Type J
Switzerland SEV 1011 3-Pin 10A (M) Type J
1.0mm2 -3c H05VV-F
ESTI
RoHS
Black

Countries of Certification The below list may not be a complete list of the applicable countries for this product. Contact us if you are inquiring about a specific country.

Select Length

25 FT
Loading product data...
Money-Back Gaurantee Same Day Shipping

Add To Cart

Need assistance? Give us a call, 860-763-2100




  • Color : Black Plug (Male) : Brazil NBR14136 10A 250V (3 Pin 3.7mm Grounded) Plug (Male) : Brazil NBR14136 16A 3x 4.5mm Pin Grounded Plug (Male) : Brazil NBR14136 20A 250V (3 Prong 4.5mm Pin Grounded)
  • Color : Black Connector (Female) : IEC 60320 C19
  • Color : Black Plug (Male) : Brazil NBR14136 10A 250V (3 Pin 3.7mm Grounded) Plug (Male) : Brazil NBR14136 16A 3x 4.5mm Pin Grounded Plug (Male) : Brazil NBR14136 20A 250V (3 Prong 4.5mm Pin Grounded)
  • Color : Black Connector (Female) : IEC 60320 C19

Black Type J Switzerland SEV1011 to IEC320 C19 16A 250V

Specifications

2.5 meters
16 Amps
250 volts
IEC 60320 C19
Switzerland SEV 1011 3-Pin 16A (M) Type J
1.5mm2 -3c HO5VV-F
SEV
RoHS
Black

Countries of Certification The below list may not be a complete list of the applicable countries for this product. Contact us if you are inquiring about a specific country.

Select Length

8.2 FT
9.8 FT
Loading product data...
Money-Back Gaurantee Same Day Shipping

Add To Cart

Need assistance? Give us a call, 860-763-2100





Image Part/Description Specifications Availability Pricing Qty

SKU Description Specifications Spec Sheet
JA05-07072 6FT Switzerland SEV1011 Plug to IEC60320 C5 2.5A 250V H05VV-F3G0.75 Power Cord - BLACK 6 Feet, 2.5 Amps, 250 volts, IEC 60320 C5, Switzerland SEV 1011 3-Pin 10A (M) Type J, 0.75mm2 -3c HO5VV-F, ESTI, RoHS, China, Black Spec Sheet
JA13-00072 6FT Switzerland SEV1011 Plug to IEC60320 C13 10A 250V H05VV-F3G0.75 Power Cord - BLACK 6 Feet, 10 Amps, 250 volts, IEC 60320 C13, Switzerland SEV 1011 3-Pin 10A (M) Type J, 0.75mm2 -3c HO5VV-F, DEMKO, ESTI, VDE, RoHS, China, Black Spec Sheet
JA13-01098 2.5m Switzerland SEV1011 Plug to IEC60320 C13 10A 250V H05VV-F3G1.0 Power Cord - BLACK ESTI, RoHS, China, Black, 2.5 meters, 10 Amps, 250 volts, IEC 60320 C13, Switzerland SEV 1011 3-Pin 10A (M) Type J, 1.0mm2 -3c H05VV-F Spec Sheet
JA13-01120 3m Switzerland SEV1011 Plug to IEC60320 C13 10A 250V H05VV-F3G1.0 Power Cord - BLACK 3.0 meters, 10 Amps, 250 volts, IEC 60320 C13, Switzerland SEV 1011 3-Pin 10A (M) Type J, 1.0mm2 -3c H05VV-F, SEV, RoHS, China, Black Spec Sheet
JA13L-01098 2.5m Switzerland SEV1011 Plug to IEC60320 C13 LEFT ANGLE 10A 250V H05VV-F3G1.0 Power Cord - BLACK 2.5 meters, 10 Amps, 250 volts, IEC 60320 C13 Left Angle, Switzerland SEV 1011 3-Pin 10A (M) Type J, 1.0mm2 -3c H05VV-F, SEV, RoHS, China, Black Spec Sheet
JA13R-01098 2.5m Switzerland SEV1011 Plug to IEC60320 C13 RIGHT ANGLE 10A 250V H05VV-F3G1.0 Power Cord - BLACK China, Black, 2.5 meters, 10 Amps, 250 volts, IEC 60320 C13 Right Angle, Switzerland SEV 1011 3-Pin 10A (M) Type J, 1.0mm2 -3c H05VV-F, SEV, RoHS Spec Sheet
JA15-01098 2.5m Switzerland SEV1011 Plug to IEC60320 C15 10A 250V H05VV-F3G1.0 Power Cord - BLACK 2.5 meters, 10 Amps, 250 volts, IEC 60320 C15, Switzerland SEV 1011 3-Pin 10A (M) Type J, 1.0mm2 -3c H05VV-F, Argentina IRAM, RoHS, China, Black Spec Sheet
JAJC-01300 25FT Switzerland SEV1011 10A 250V H05VV-F3G1.0 Extension Cord - BLACK 25 Feet, 10 Amps, 250 volts, Switzerland SEV 1011 3-Pin 10A (F) Type J, Switzerland SEV 1011 3-Pin 10A (M) Type J, 1.0mm2 -3c H05VV-F, ESTI, RoHS, China, Black Spec Sheet
JB19-02098 2.5m 8FT SWITZERLAND PLUG to C19 16A 250V BLACK H05VV-F3G1.5 Power Cord - BLACK 2.5 meters, 16 Amps, 250 volts, IEC 60320 C19, Switzerland SEV 1011 3-Pin 16A (M) Type J, 1.5mm2 -3c HO5VV-F, SEV, RoHS, China, Black Spec Sheet
JB19-02120 3m Switzerland SEV1011 Plug to IEC60320 C19 16A 250V H05VV-F3G1.5 Power Cord - BLACK 3.0 meters, 16 Amps, 250 volts, IEC 60320 C19, Switzerland SEV 1011 3-Pin 16A (M) Type J, 1.5mm2 -3c HO5VV-F, DEMKO, ESTI, VDE, RoHS, China, Black Spec Sheet
