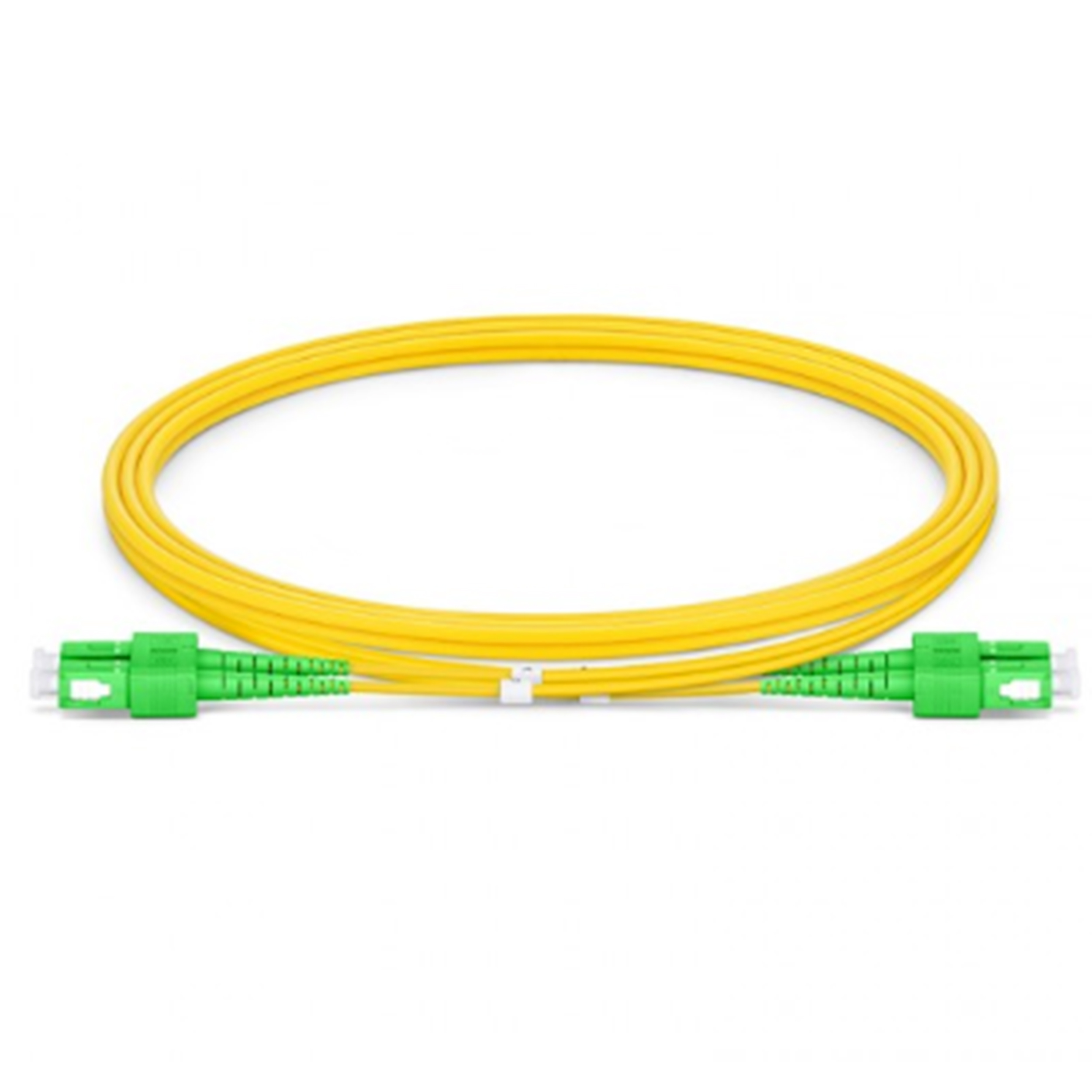

OS2 SC-SC Duplex Singlemode Fiber Optic Patch Cables - Yellow

OS2 SC-SC Duplex Singlemode Fiber Optic Patch Cables - Yellow

The Singlemode OS2 Duplex SC to SC | UPC Fiber patch cable is a cost effective solution for your data center connections. The Fiber Mode is OS2 9/125μm and supports 1310 to 1550nm wavelengths with an insertion loss of <0.3dB and return loss of >50dB. The fiber grade is G.657.A1 with A(Tx) to B(Rx) polarity. The jacket is PVC with a minmum bend radius of 10mm and an overall diameter of 2.0mm. The temperature rating for operation is -20 to 80*C and storage of -40 to 80*C.

Powered by Froala Editor

For help finding a product or for product additional product information , call us at (860) 763-2100 or email sales@worldcordsets.com


Part Number
Length
Availability
1+
10+
100+
3 Feet

1+ :

10+ :

100+ :

7 Feet

1+ :

10+ :

100+ :

10 Feet

1+ :

10+ :

100+ :



Specifications of Single Mode Fiber Patch Cables

Cable End 1
Cable End 2
Fiber Type
Polish
Insertion Loss
Return Loss
Minimum Bend Radius
Jacket Outer Diameter
Fiber Count
Jacket Color
Jacket Material
Attenuation at 1310 nm
Attenuation at 1550 nm
Polarity

Angled Physical Contact Connector (APC)

Angled Physical Contact Connector (APC)

The Angled Physical Contact (APC) Connector is a connection tip design for the Ferrule of the Connector. The tip narrows similar to the UPC, however the connection point is angled. This was in response to the field studies of the UPC "back reflection" increasing after repeat mating and un-mating of the connector. The APC has a slight 8* angle to the end-face which creates a tighter connection and smaller end-face radii. Due to the APC's superior performance in return losses, it is most commonly used in analogue applications where the equipment is much more sensitive to changes in signal. These include Radio FrequencyEquipment and Highly Sensitive Test Equipment.

OS 2 Single Mode Fiber

OS 2 Single Mode Fiber

The second designation for single mode fiber, which is only compliant with ITU-T G.652C/D. OS2 is constructed with loose tube design, commonly usd in street, underground burial, outdoor applications, etc. The maximum attenuation is 0.4db/km and maximum speed is 10Gb. Due to the fact OM2 can transmit farther than OM1(10, it is generally more expensive than OM1.
