Europe Schuko CEE7/7 to Right Angle IEC 60320 C13 Power Cords

Europe Schuko CEE7/7 to Right Angle IEC 60320 C13 Power Cords

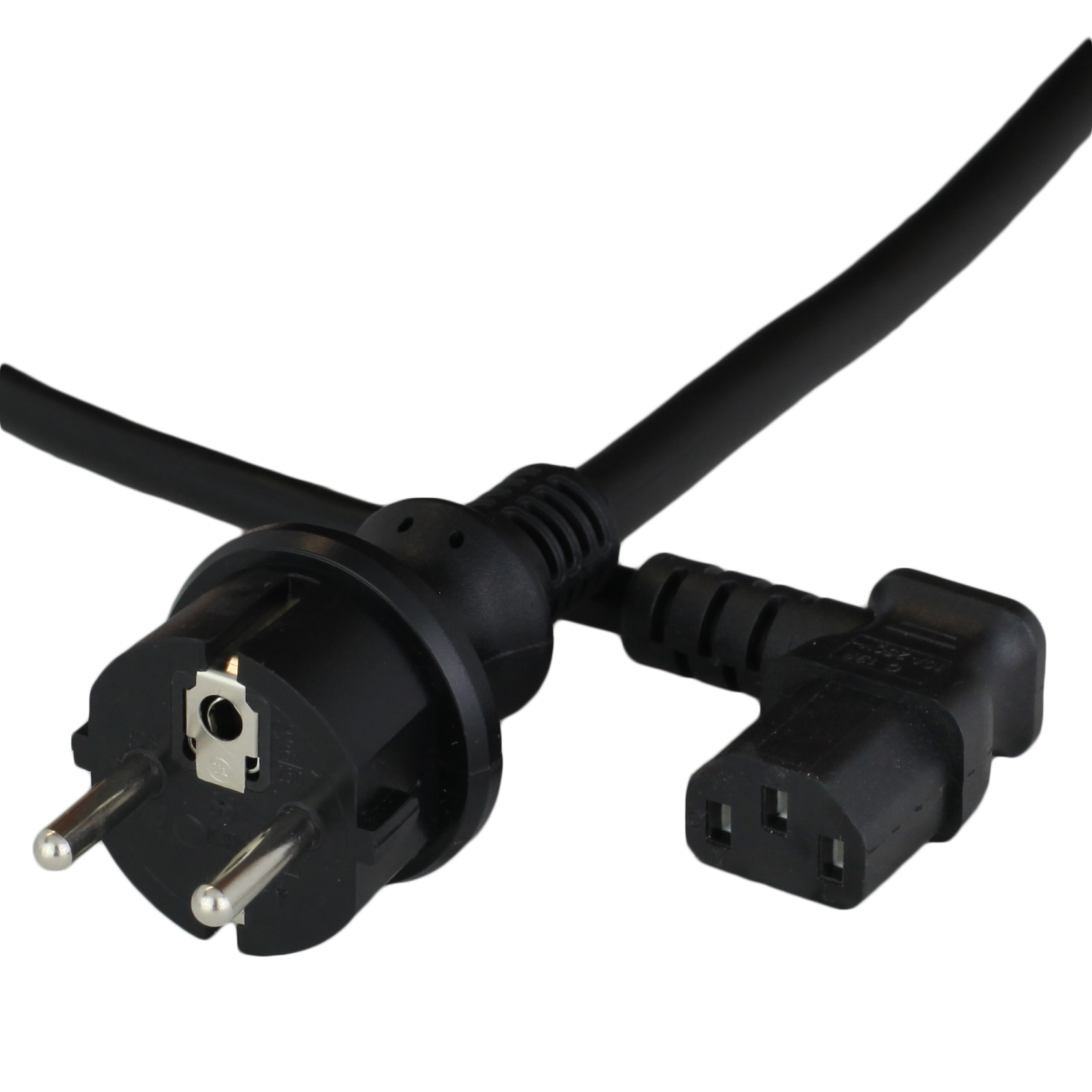

Europe Schuko CEE7/7 to Right Angle IEC 60320 C13 Power Cords are designed to connect a standard European Outlet to a variety of IT Equipment.

For help finding a product or for product additional product information , call us at (860) 763-2100 or email sales@worldcordsets.com


Part Number
Length
Current (Amps)
Voltage (Volts)
Connector (Female)
Plug (Male)
Availability
1+
10+
100+
  • 2.5 meters
  • 10 Amps
  • 250 volts
  • IEC 60320 C13 Right Angle Photo of IEC 60320 C13 Right Angle
  • European Schuko CEE7/7 - Straight Photo of European Schuko CEE7/7 - Straight
2.5 meters
10 Amps
250 volts
IEC 60320 C13 Right Angle
European Schuko CEE7/7 - Straight

1+ :

10+ :

100+ :



IEC 60320 C13 Right Angle

IEC 60320 C13 Right Angle
  • The IEC 60320 C13 is a grounded 3 Wire connector rated up to 250V and 15 Amps. The C13 mates with a C14 inlet, and is commonly used in a jumper cable scenario in IT Installations providing power from a PDU to a server, router, switch or other computing device. Most people know the C13 as 'the thing that plugs into my computer' because it is the standard connector used to power most desktop computers. In a desktop computer application, the most common cable is the NEMA 5-15P to C13, which connects your standard North American wall outlet to a desktop computer. The right angle connector style is for installing in tight spaces where the power supply or opening is towards the right

European Schuko CEE7/7 - Straight

European Schuko CEE7/7 - Straight

The European Schuko CEE7/7 - Straight plug is a 2 pole, grounded plug. The plug has two round pins (line and neutral) each 4.8 mm diameter, 19 mm long and spaced 19 mm apart. The plug also has two flat areas (top and bottom sides) and a female contact for the ground. The CEE7/7 Schuko is a hybrid plug designed to fit into both type C and F Schuko receptacle. Schuko is an acronym of the german word "Schutzkontakt" meaning safety contact which is visible on the top and bottom of the plug end.
