Europe Schuko CEE7/7 to IEC 60320 C5 Power Cords

Europe Schuko CEE7/7 to IEC 60320 C5 Power Cords

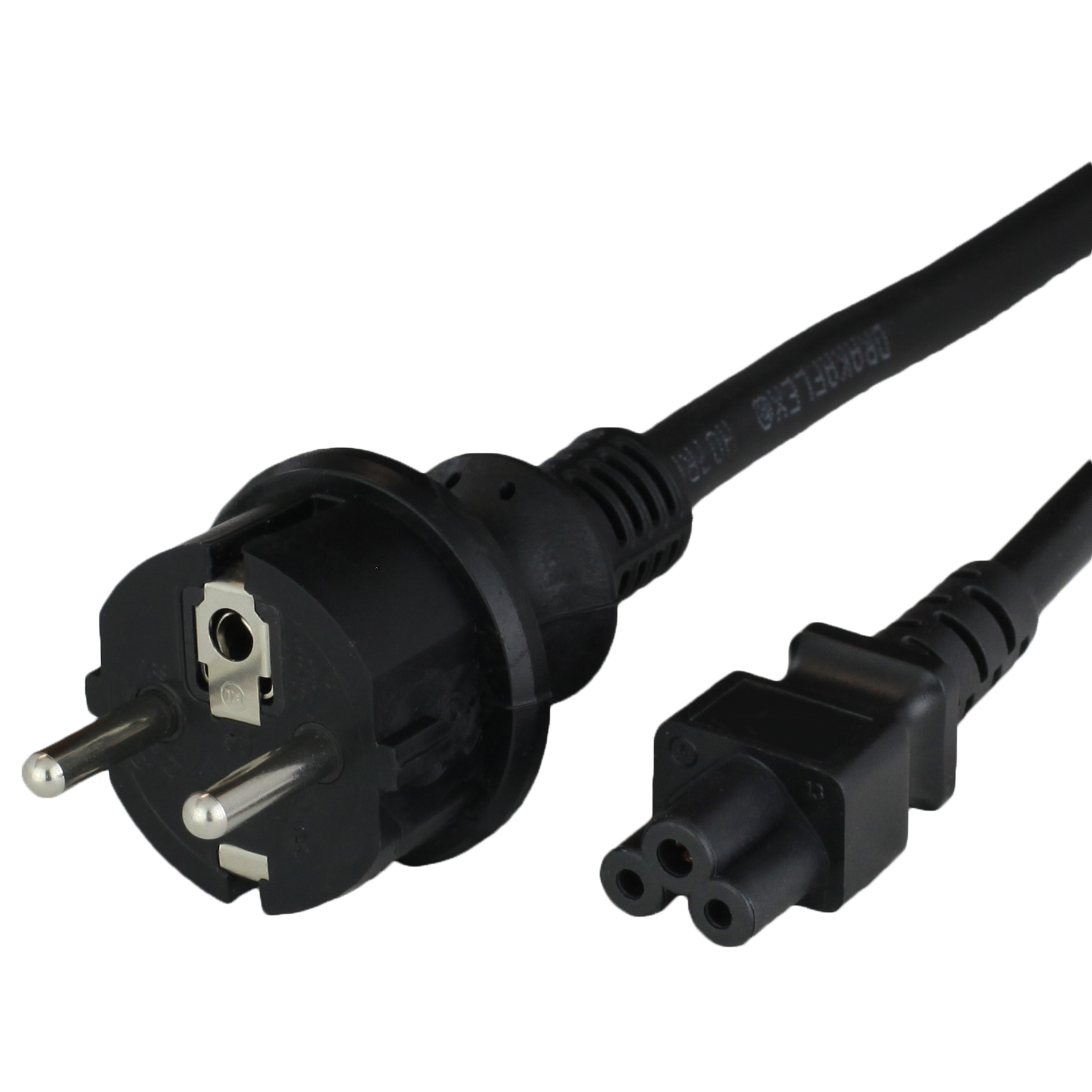

Schuko (CEE 7/7) to C5 (IEC 60320) 2.5A 250V Power Cords. The plug (MALE) is a Type F Schuko CEE7/7. It fits both E (France) and F (European / Germany) type outlets (sockets). Available in straight or down/up angle orientation. The plug has two round pins (line and neutral) each 4.8 mm diameter, 19 mm long and spaced 19 mm apart. The plug also has two flat areas (top and bottom sides) and a female contact for the ground. The IEC60320 C5 (FEMALE) is a grounded 3 Wire connector rated up to 250V and 2.5 Amps Internationally or 125V and 10 Amps in North America. The C5 mates with a C6 inlet, and is commonly used for laptop power supplies, projectors, and some televisions. Being slightly smaller in size than the C13, the C5 can be a good choice for smaller appliances. This connector is sometimes referred to as a "Mickey Mouse" connector due to the shape of the connector looking similar to the kids television show character.

For help finding a product or for product additional product information , call us at (860) 763-2100 or email sales@worldcordsets.com


Click to Enlarge
Part Number
Length
Current (Amps)
Voltage (Volts)
Connector (Female)
Plug (Male)
Availability
1+
100+
250+
  • 2.0 meters
  • 2.5 Amps
  • 250 volts
  • IEC 60320 C5 Photo of IEC 60320 C5
  • European Schuko CEE7/7 - Straight Photo of European Schuko CEE7/7 - Straight
2.0 meters
2.5 Amps
250 volts
IEC 60320 C5
European Schuko CEE7/7 - Straight
Contact Us

1+ :

100+ :

250+ :

Contact Us


Specifications of Europe / Schuko

Current (Amps)
Voltage (Volts)
Connector (Female)
Plug (Male)
Cordage
Approvals
Certifications
Country of Origin
Color

European Schuko CEE7/7 - Straight

European Schuko CEE7/7 - Straight

The European Schuko CEE7/7 - Straight plug is a 2 pole, grounded plug. The plug has two round pins (line and neutral) each 4.8 mm diameter, 19 mm long and spaced 19 mm apart. The plug also has two flat areas (top and bottom sides) and a female contact for the ground. The CEE7/7 Schuko is a hybrid plug designed to fit into both type C and F Schuko receptacle. Schuko is an acronym of the german word "Schutzkontakt" meaning safety contact which is visible on the top and bottom of the plug end.

IEC 60320 C5 CONNECTOR (FEMALE)

IEC 60320 C5 CONNECTOR (FEMALE)

General Information:

The IEC 60320 C5 is a grounded 3 Wire connector rated up to 250V and 2.5 Amps Internationally or 125V and 10 Amps in North America. The C5 mates with a C6 inlet, and is commonly used for laptop power supplies, projectors, and some televisions. Being slightly smaller in size than the C13, the C5 can be a good choice for smaller appliances. This connector is sometimes referred to as a "Mickey Mouse" connector due to the shape of the connector looking similar to the kids television show character.


What does the IEC 60320 C5 Connect to?



IEC 60320 C6 InletThe IEC 60320 C5 connector is designed to connect to the IEC 60320 C6 Inlet. This inlet is commonly found on low power drawing equipment like computer monitors. It is also found on small power adapter blocks for devices requiring under 2.5 Amps.
