Down Angled Europe Schuko CEE7/7 to IEC 60320 C13 Power Cords

Down Angled Europe Schuko CEE7/7 to IEC 60320 C13 Power Cords

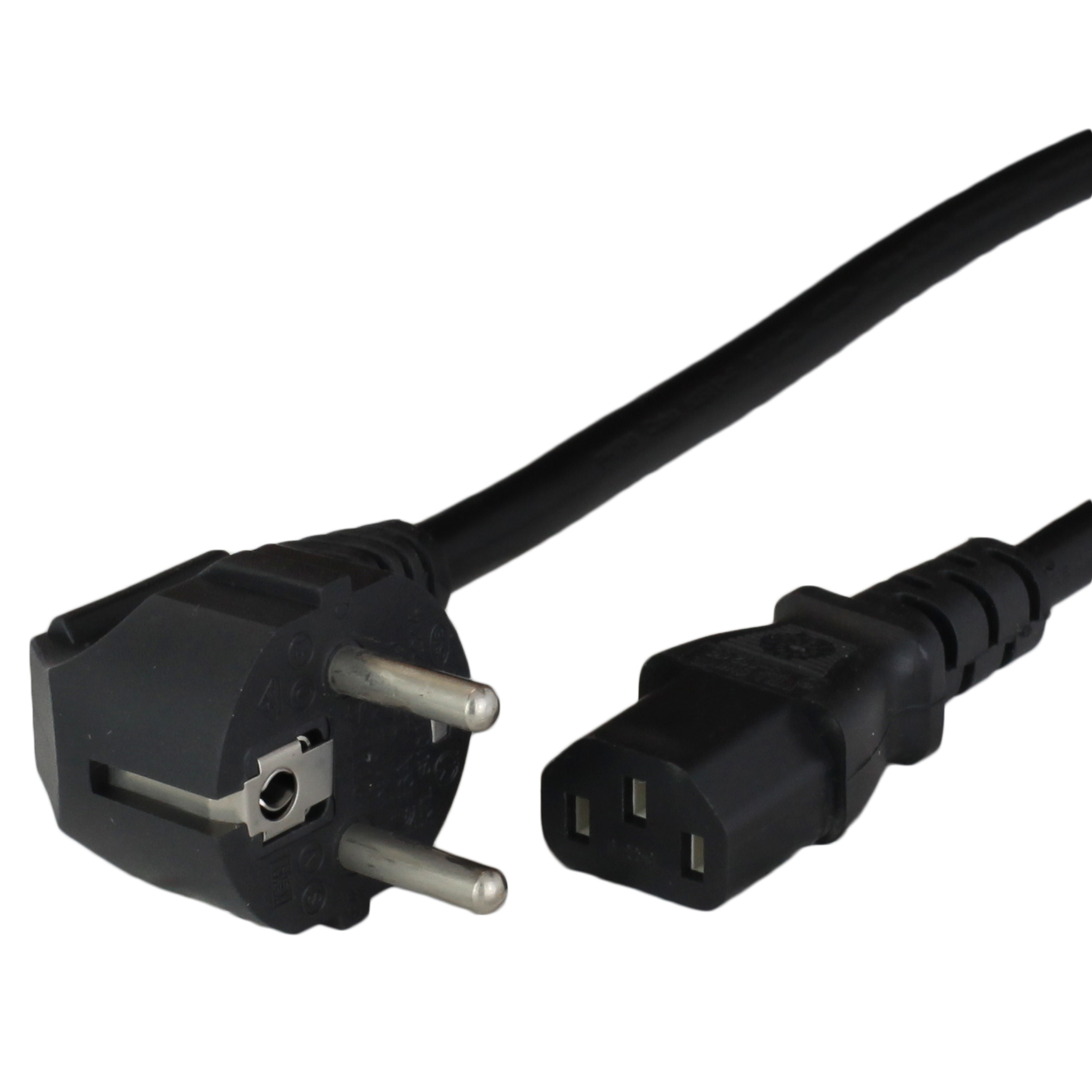

Down Angled Europe Schuko CEE7/7 to IEC 60320 C13 Power Cords are designed to connect a standard Schuko Wall Outlet to a variety of IT Equipment.

For help finding a product or for product additional product information , call us at (860) 763-2100 or email sales@worldcordsets.com


Part Number
Length
Current (Amps)
Voltage (Volts)
Connector (Female)
Plug (Male)
Availability
1+
10+
100+
  • 6 Feet
  • 10 Amps
  • 250 volts
  • IEC 60320 C13 Photo of IEC 60320 C13
  • European Schuko CEE7/7 - Down Angle Photo of European Schuko CEE7/7 - Down Angle
6 Feet
10 Amps
250 volts
IEC 60320 C13
European Schuko CEE7/7 - Down Angle

1+ :

10+ :

100+ :



European Schuko CEE7/7 - Down Angle

European Schuko CEE7/7 - Down Angle

The European Schuko CEE7/7 - Down Angle plug is a 2 pole, grounded plug. The plug has two round pins (line and neutral) each 4.8 mm diameter, 19 mm long and spaced 19 mm apart. The plug also has two flat areas (top and bottom sides) and a female contact for the ground. The CEE7/7 Schuko is a hybrid plug designed to fit into both type C and F Schuko receptacle. Schuko is an acronym of the german word "Schutzkontakt" meaning safety contact which is visible on the top and bottom of the plug head. The down angled plug is designed for tight installations in which a straight connector.

IEC 60320 C13 CONNECTOR (FEMALE)

IEC 60320 C13 CONNECTOR (FEMALE)

General Information:

The IEC 60320 C13 is a grounded 3 Wire connector rated up to 250V and 15 Amps. The C13 mates with a C14 inlet, and is commonly used in a jumper cable scenario in IT Installations providing power from a PDU to a server, router, switch or other computing device. Most people know the C13 as 'the thing that plugs into my computer' because it is the standard connector used to power most desktop computers. In a desktop computer application, the most common cable is the NEMA 5-15P to C13, which connects your standard North American wall outlet to a desktop computer. The iec 320 c13 c14 plug and connector are synonymous with Information Technology equipment primarily, but the C13 can be found powering equipment like medical devices and gaming consoles.

What does the IEC 60320 C13 Connect to?





IEC 60320 C14 Plug'

IEC 60320 C14 Inlet
The IEC 320 type C13 connector is designed to connect to the IEC 320 C14 plug and inlet. The C14 Plug is commonly found on power cords located in office, commercial or data center settings since the C13 inlet is usually only found in those environments. The C14 Inlet is commonly found on a variety of IT Equipment like monitors, switches, printers, power adapters, and more.
