European Schuko CEE7/7 to IEC 60320 C19 Power Cords are designed to provide power to a larger IT device/equipment from a standard European Schuko wall outlet. The various angled and locking options we offer, are solutions designed to improve installation and solve common day to day problems with connection.

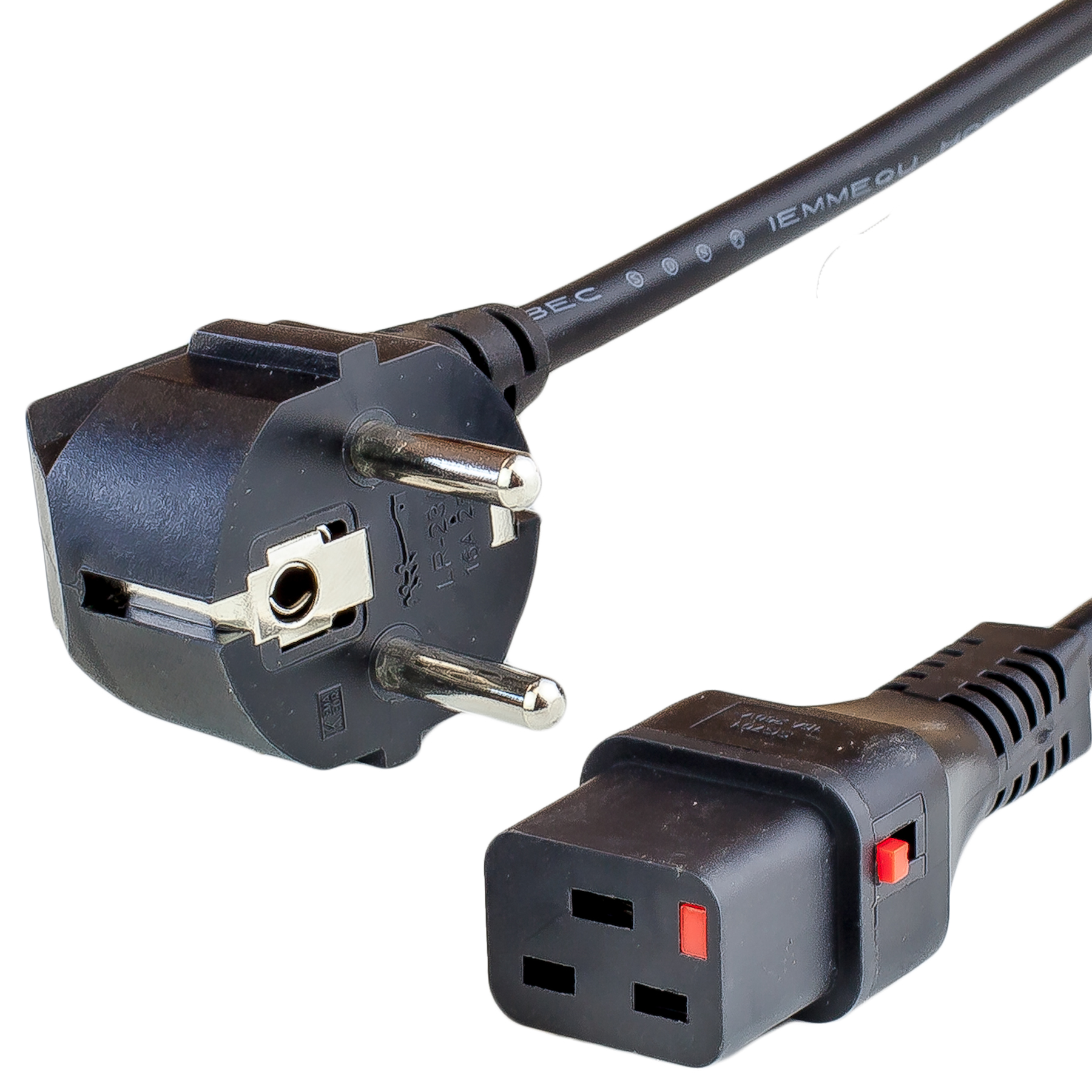

European Schuko CEE7/7 - Down Angle
The European Schuko CEE7/7 - Down Angle plug is a 2 pole, grounded plug. The plug has two round pins (line and neutral) each 4.8 mm diameter, 19 mm long and spaced 19 mm apart. The plug also has two flat areas (top and bottom sides) and a female contact for the ground. The CEE7/7 Schuko is a hybrid plug designed to fit into both type C and F Schuko receptacle. Schuko is an acronym of the german word "Schutzkontakt" meaning safety contact which is visible on the top and bottom of the plug head. The down angled plug is designed for tight installations in which a straight connector.
IEC 60320 C19 CONNECTOR (FEMALE)
General Information:
The IEC 60320 C19 is a grounded 3 Wire connector rated up to 250V and 20 Amps. The C19 can be found on a variety of power cords, including NEMA to 320 Adapter cords, and International Plug types to IEC 320 connectors, but the most common application is the IEC 320 C20 to C19 power cord which is a a standard extension cord used to power high powered IT Equipment. The C19 is typically used in high powered blade server chassis, large network routers, and other IT equipment that draws more power than a standard C13 can accommodate.
What does the IEC 60320 C19 Connect to?
 |  | The IEC 60320 type C19 connector is designed to connect to the IEC 320 C20 plug and Inlet. THE C20 Plug is commonly found on power cords used in the data center industry. The C20 Inlet can be found on a variety of high powered IT Equipment ranging from switches to Un-Interrupted Power Supply systems. |
