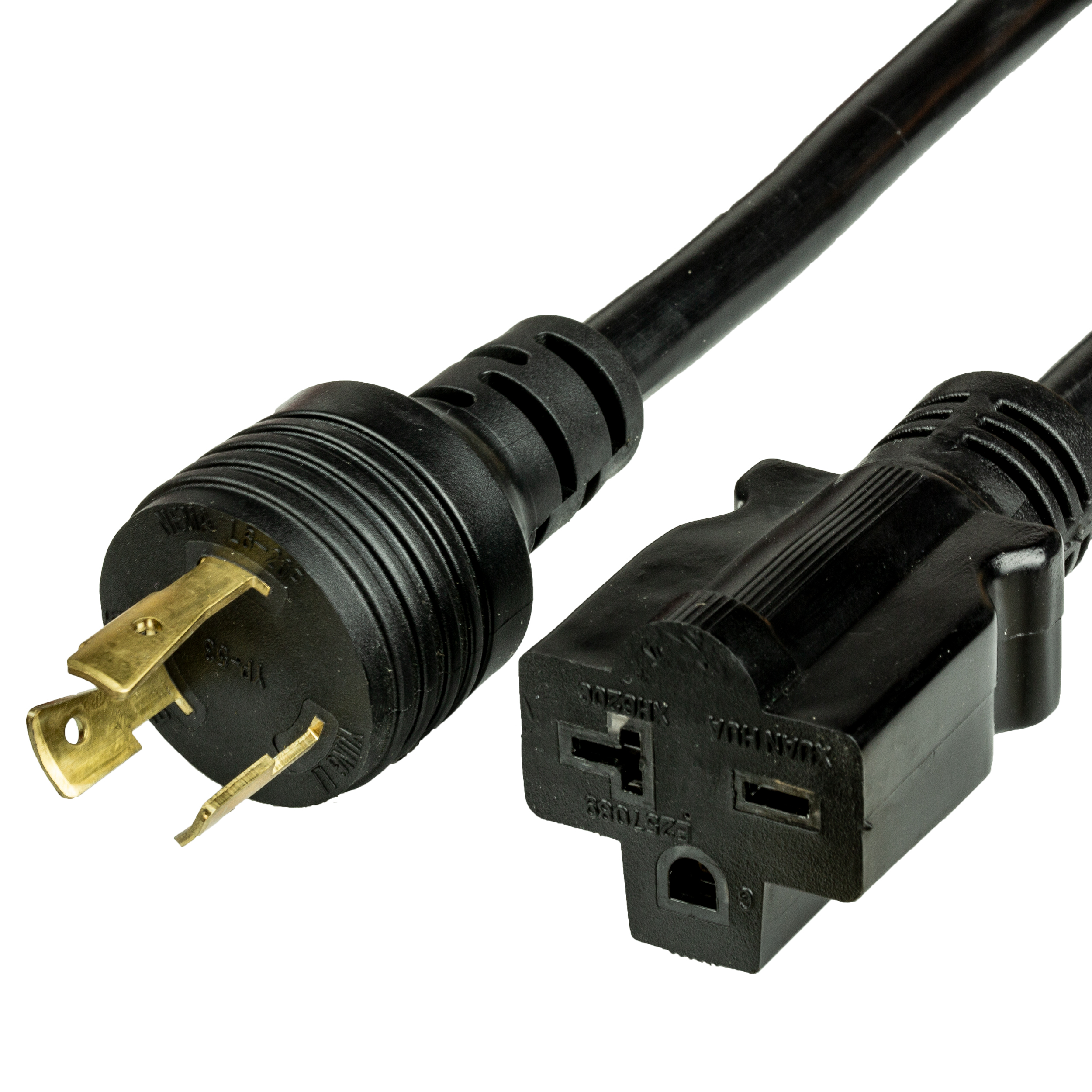

Black NEMA L6-20P to NEMA 6-20R Straight to Locking Adapter Cords

Black NEMA L6-20P to NEMA 6-20R Straight to Locking Adapter Cords

Black NEMA L6-20P to NEMA 6-20R Straight to Locking Adapter Cords converts a locking 250V 20A outlet to a non locking version.

For help finding a product or for product additional product information , call us at (860) 763-2100 or email sales@worldcordsets.com


Part Number
Length
Current (Amps)
Voltage (Volts)
Connector (Female)
Plug (Male)
Availability
1+
10+
100+
  • 1 Foot
  • 20 Amps
  • 250 volts
  • NEMA 6-15/20R (T-Slot) Photo of NEMA 6-15/20R (T-Slot)
  • NEMA L6-20P Photo of NEMA L6-20P
1 Foot
20 Amps
250 volts
NEMA 6-15/20R (T-Slot)
NEMA L6-20P

1+ :

10+ :

100+ :



NEMA L6-20P

NEMA L6-20P

General Information:

The NEMA L6-20P is a 3 wire grounded plug with a hot, hot and ground pin rated up to 250V and 20A. This plug can be locked into place on the matching receptacle which prevents nuisance disconnection. This plug is commonly found on in-rack power distribution units (PDU) where standard electrical service exceeds 125V, also in industrial settings to supply power to equipment or power tools.

What does the NEMA L6-20P Plug into?




L6-20R Connector
NEMA L6-20R Outlet
The NEMA L6-20P connects to both the NEMA L6-20R Connector which is commonly found on extension cords and power drops, and the outlet which is commonly found in industrial settings where 208/240V Power supply is used.

NEMA 6-20R (T-Slot) Connector

NEMA 6-20R (T-Slot) Connector

General Information:

The NEMA 6-20R (T-Slot) is a 3 Wire grounded connector rated up to 250VAC and 20A. The 6-20P has a horizontal and vertical blade to prevent attachment to lower ampere rated receptacles. However, the 6-20R (receptacle) offers a "T" slot allowing connection of both a 6-20P and a 6-15P. Common applications are commercial ovens and large air condition units. This connector is found in our NEMA 6-20 Extension cord Series which are commonly used in industrial and commercial settings.

What does the NEMA 6-20R Connect to?




NEMA 6-20P Plug
NEMA 6-20P Inlet
The NEMA 6-20R Connector is designed to connect to the NEMA 6-20P Plug and Inlet.The plug is used on a variety of power cords, and the Inlet can be found on different industrial and commercial equipment.
