15A 125V NEMA L6-15P Twist-Lock Power Cords
Identifying a NEMA L6-15P plug compared to other 250v twist lock plugs.
The twist lock plugs are much harder to identify just by inspecting them, since they all have similar circular locking pins and only vary fractionally to prevent cross-plugging. To help the user with this, it is common for manufacturers to list the plug type on the face of the plug. Just for reference, here are the three most common NEMA L6 Plug types in comparison.
Extending an L6-15R receptacle with NEMA L6-15 extension cords.
In the event your equipment power supply cord cannot reach the L6 15r twist lock outlet, you will need to extend the power to the machine with a 250V 15A NEMA Twist Lock extension cable. We stock many lengths to help provide accessibility to power for our customers. Since you are not adapting the connector type, and the cable is the same rating as the power supply, this will have no functional drawbacks. Just make sure to route your cable in a location where it is safe from heavy foot traffic or sharp/heavy objects that could damage the cable.
Nema L6 15 plug to IEC 60320 connector 250v adapters.
The NEMA L6-15P is rated for 250 Volts and 15 Amps by itself, but the rating of the cord set will depend on the composition of the cable. Since the plug will be the connection to the power source, the power cable will be rated for 250 Volt, and the amperage will depend on the wire gauge since all of the IEC320 connectors utilized in this product line are at least 15 Amperes rated. If the cable utilizes at least 14awg wire, the cable will be rated for 15 Amps.
Black Standard NEMA L6-15P to IEC320 C13 15A 250V
Specifications
Countries of Certification The below list may not be a complete list of the applicable countries for this product. Contact us if you are inquiring about a specific country.
Select Length
Need assistance? Give us a call, 860-763-2100

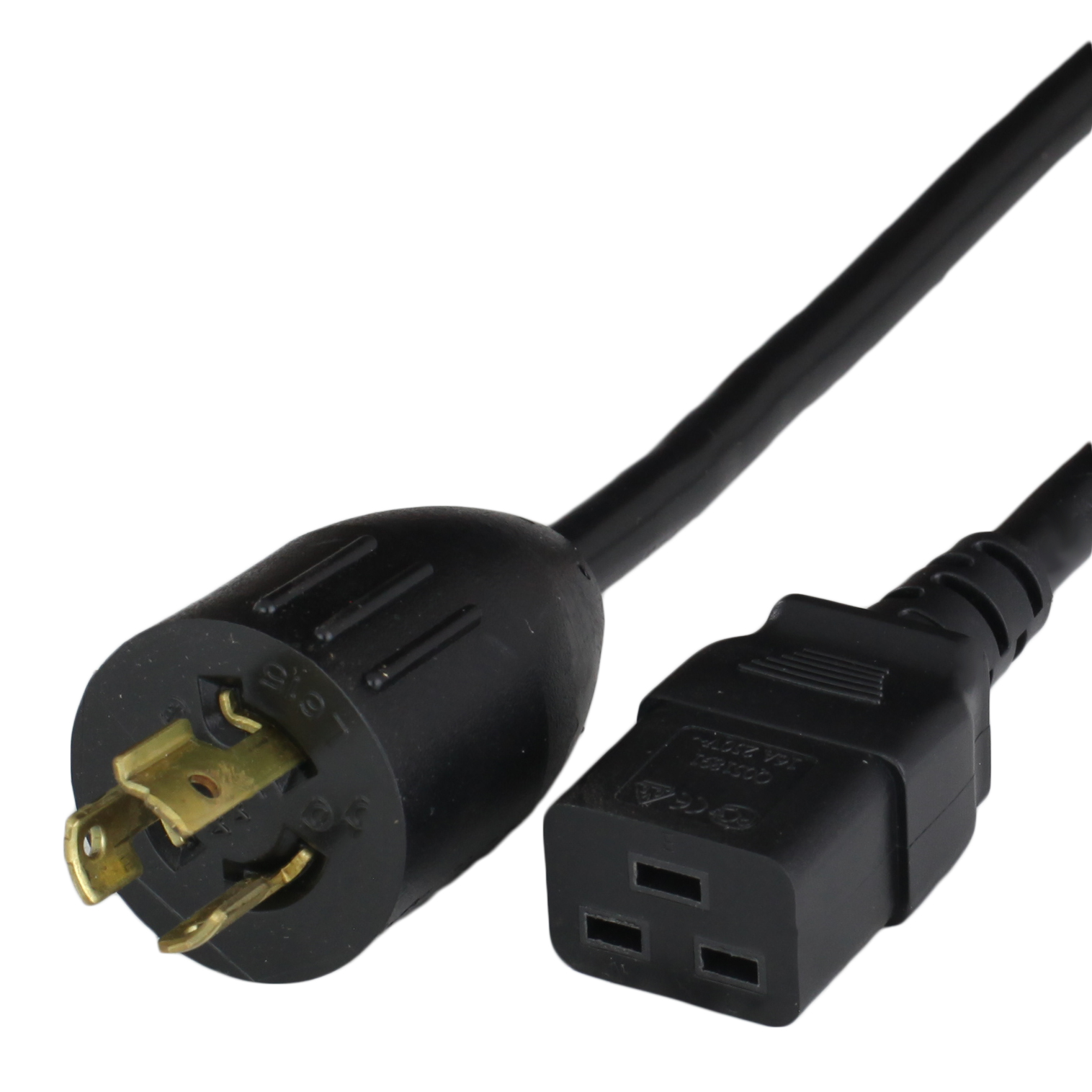

Black Standard NEMA L6-15P to IEC320 C19 15A 250V
Specifications
Countries of Certification The below list may not be a complete list of the applicable countries for this product. Contact us if you are inquiring about a specific country.
Select Length
Need assistance? Give us a call, 860-763-2100
Black Extension Cable NEMA L6-15P to NEMA L6-15R 15A 250V
Specifications
Countries of Certification The below list may not be a complete list of the applicable countries for this product. Contact us if you are inquiring about a specific country.
Select Length
Need assistance? Give us a call, 860-763-2100
Filters
| Image | Part/Description | Specifications | Availability | Pricing | Qty | |
|---|---|---|---|---|---|---|
|
L61513-H-012
1FT Black Standard NEMA L6-15P to IEC320 C13 15A 250V |
Plug (Male)
NEMA L6-15P
Connector (Female)
IEC 60320 C13
Length
1 Foot
Color
Black
Current (Amps)
15 Amps
Voltage (Volts)
250 volts
Approvals
UL, cUL
Cordage
14awg-3c SJT
Certifications
RoHS
|
|
|||
|
|
L61513-H-098
8FT Black Standard NEMA L6-15P to IEC320 C13 15A 250V |
Plug (Male)
NEMA L6-15P
Connector (Female)
IEC 60320 C13
Length
8 Feet
Color
Black
Current (Amps)
15 Amps
Voltage (Volts)
250 volts
Approvals
UL, cUL
Cordage
14awg-3c SJT
Certifications
RoHS
|
|
|||
|
L615L615-H-180
15FT Black Extension Cable NEMA L6-15P to NEMA L6-15R 15A 250V |
Country of Certification
United States
Mexico
Plug (Male)
NEMA L6-15P
Connector (Female)
NEMA L6-15R
Length
15 Feet
Color
Black
Current (Amps)
15 Amps
Voltage (Volts)
250 volts
Approvals
UL
Cordage
14awg-3c SJT
Certifications
RoHS
|
|
| SKU | Description | Specifications | Spec Sheet |
|---|---|---|---|
| L61513-H-012 | 1FT L6-15P C13 15A 250V BLACK Power Cord | 1 Foot, 15 Amps, 250 volts, IEC 60320 C13, NEMA L6-15P, 14awg-3c SJT, UL, cUL, RoHS, Black | Spec Sheet |
| L61513-H-036 | 3FT L6-15P C13 15A 250V BLACK Power Cord | 3 Feet, 15 Amps, 250 volts, IEC 60320 C13, NEMA L6-15P, 14awg-3c SJT, UL, cUL, RoHS, Black | Spec Sheet |
| L61513-H-072 | 6FT L6-15P C13 15A 250V BLACK Power Cord | 6 Feet, 15 Amps, 250 volts, IEC 60320 C13, NEMA L6-15P, 14awg-3c SJT, UL, cUL, RoHS, Black | Spec Sheet |
| L61513-H-098 | 8FT L6-15P C13 15A 250V BLACK Power Cord | 15 Amps, 250 volts, IEC 60320 C13, NEMA L6-15P, 14awg-3c SJT, UL, cUL, RoHS, Black, 2.5 meters, 8 Feet | Spec Sheet |
| L61513-H-144 | 12FT L6-15P C13 15A 250V BLACK Power Cord | 12 Feet, 15 Amps, 250 volts, IEC 60320 C13, NEMA L6-15P, 14awg-3c SJT, UL, cUL, RoHS, USA, Black, UL, cUL | Spec Sheet |
| L61519-H-120 | 10FT NEMA L6-15P to C19 15A 250V 14awg Power Cord - BLACK | 10 Feet, 15 Amps, 250 volts, IEC 60320 C19, NEMA L6-15P, 14awg-3c SJT, UL, cUL, RoHS, Black | Spec Sheet |
| L61519-H-096 | 8FT NEMA L6-15P to C19 15A 250V 14awg Power Cord - BLACK | 8 Feet, 15 Amps, 250 volts, IEC 60320 C19, NEMA L6-15P, 14awg-3c SJT, UL, cUL, RoHS, Black | Spec Sheet |
| L615L615-H-300 | 25FT NEMA L6-15 15A 250V 14awg Extension Cord - BLACK | 14awg-3c SJTOW, UL, RoHS, China, Black, 14awg-3c SJT, 25 Feet, 15 Amps, 250 volts, NEMA L6-15R, NEMA L6-15P | Spec Sheet |
| L615L615-H-072 | 6FT NEMA L6-15 15A 250V 14awg Extension Cord - BLACK | RoHS, China, Black, 14awg-3c SJT, 6 Feet, 15 Amps, 250 volts, NEMA L6-15R, NEMA L6-15P, 14awg-3c SJTOW, UL | Spec Sheet |
| L615L615-H-120 | 10FT NEMA L6-15 15A 250V 14awg Extension Cord - BLACK | 10 Feet, 15 Amps, 250 volts, NEMA L6-15R, NEMA L6-15P, 14awg-3c SJTOW, UL, RoHS, China, Black, 14awg-3c SJT | Spec Sheet |
| L615L615-H-180 | 15FT NEMA L6-15 15A 250V 14awg SJTOW Extension Cord - BLACK | 15 Feet, 15 Amps, 250 volts, NEMA L6-15R, NEMA L6-15P, 14awg-3c SJTOW, UL, RoHS, China, Black, 14awg-3c SJT | Spec Sheet |
