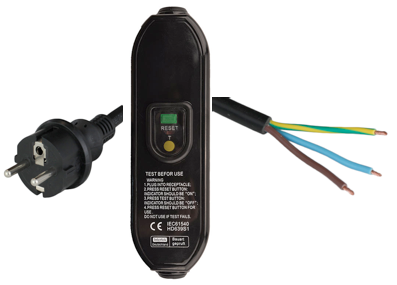

2.5m European Schuko CEE7/7 Plug to In-Line RCD to OPEN 10A 250V 10mA Trip Level Power Cord - BLACK



<p>2.5m European Schuko CEE7/7 Plug to In-Line RCD to OPEN 10A 250V 10mA Trip Level Power Cord - BLACK</p><p>RCD (Residual Current Device). In Line style configuration. Built-in TEST and RESET buttons. Pulse current sensitive. Robust construction, double pole breaking. Manual reset upon power loss. Rated 16A, 250 VAC, 50 Hz (Depending upon Cordage). 10 and 30 mA Residual Current Trip Levels available, 30 mA is standard. Basic Dimensions: 47x54x160 mm. Trips in no more than 30 mS. PG11 waterproof connector and a clamping ring seal bushing. IP65 protection (rated for outdoor use; dustproof and low pressure hosedowns). Temperature range -25C to +40C. Lighted power on indication. Available in black, white, or gray colors (black is standard). Tested according to DIN VDE 0661 and EN61540 standards. Design conformance: BS7071. CE certified and RoHS compliant. </p>
<p>2.5m European Schuko CEE7/7 Plug to In-Line RCD to OPEN 10A 250V 10mA Trip Level Power Cord - BLACK</p><p>RCD (Residual Current Device). In Line style configuration. Built-in TEST and RESET buttons. Pulse current sensitive. Robust construction, double pole breaking. Manual reset upon power loss. Rated 16A, 250 VAC, 50 Hz (Depending upon Cordage). 10 and 30 mA Residual Current Trip Levels available, 30 mA is standard. Basic Dimensions: 47x54x160 mm. Trips in no more than 30 mS. PG11 waterproof connector and a clamping ring seal bushing. IP65 protection (rated for outdoor use; dustproof and low pressure hosedowns). Temperature range -25C to +40C. Lighted power on indication. Available in black, white, or gray colors (black is standard). Tested according to DIN VDE 0661 and EN61540 standards. Design conformance: BS7071. CE certified and RoHS compliant. </p>
<p>2.5m European Schuko CEE7/7 Plug to In-Line RCD to OPEN 10A 250V 10mA Trip Level Power Cord - BLACK</p><p>RCD (Residual Current Device). In Line style configuration. Built-in TEST and RESET buttons. Pulse current sensitive. Robust construction, double pole breaking. Manual reset upon power loss. Rated 16A, 250 VAC, 50 Hz (Depending upon Cordage). 10 and 30 mA Residual Current Trip Levels available, 30 mA is standard. Basic Dimensions: 47x54x160 mm. Trips in no more than 30 mS. PG11 waterproof connector and a clamping ring seal bushing. IP65 protection (rated for outdoor use; dustproof and low pressure hosedowns). Temperature range -25C to +40C. Lighted power on indication. Available in black, white, or gray colors (black is standard). Tested according to DIN VDE 0661 and EN61540 standards. Design conformance: BS7071. CE certified and RoHS compliant. </p>

2.5m European Schuko CEE7/7 Plug to In-Line RCD to OPEN 10A 250V 10mA Trip Level Power Cord - BLACK


2.5m European Schuko CEE7/7 Plug to In-Line RCD to OPEN 10A 250V 10mA Trip Level Power Cord - BLACK

RCD (Residual Current Device). In Line style configuration. Built-in TEST and RESET buttons. Pulse current sensitive. Robust construction, double pole breaking. Manual reset upon power loss. Rated 16A, 250 VAC, 50 Hz (Depending upon Cordage). 10 and 30 mA Residual Current Trip Levels available, 30 mA is standard. Basic Dimensions: 47x54x160 mm. Trips in no more than 30 mS. PG11 waterproof connector and a clamping ring seal bushing. IP65 protection (rated for outdoor use; dustproof and low pressure hosedowns). Temperature range -25C to +40C. Lighted power on indication. Available in black, white, or gray colors (black is standard). Tested according to DIN VDE 0661 and EN61540 standards. Design conformance: BS7071. CE certified and RoHS compliant.



  • Product Information
  • Submit a Request

Product Documents


Product Weight
~1.95 lbs.
Product Volume
~123 in3
Length
Current (Amps)
Voltage (Volts)
Plug (Male)
Cordage
Approvals
Certifications
Country of Origin
Color
Trip Level (mA)
Connector (Female)
Conductor Color Coding
