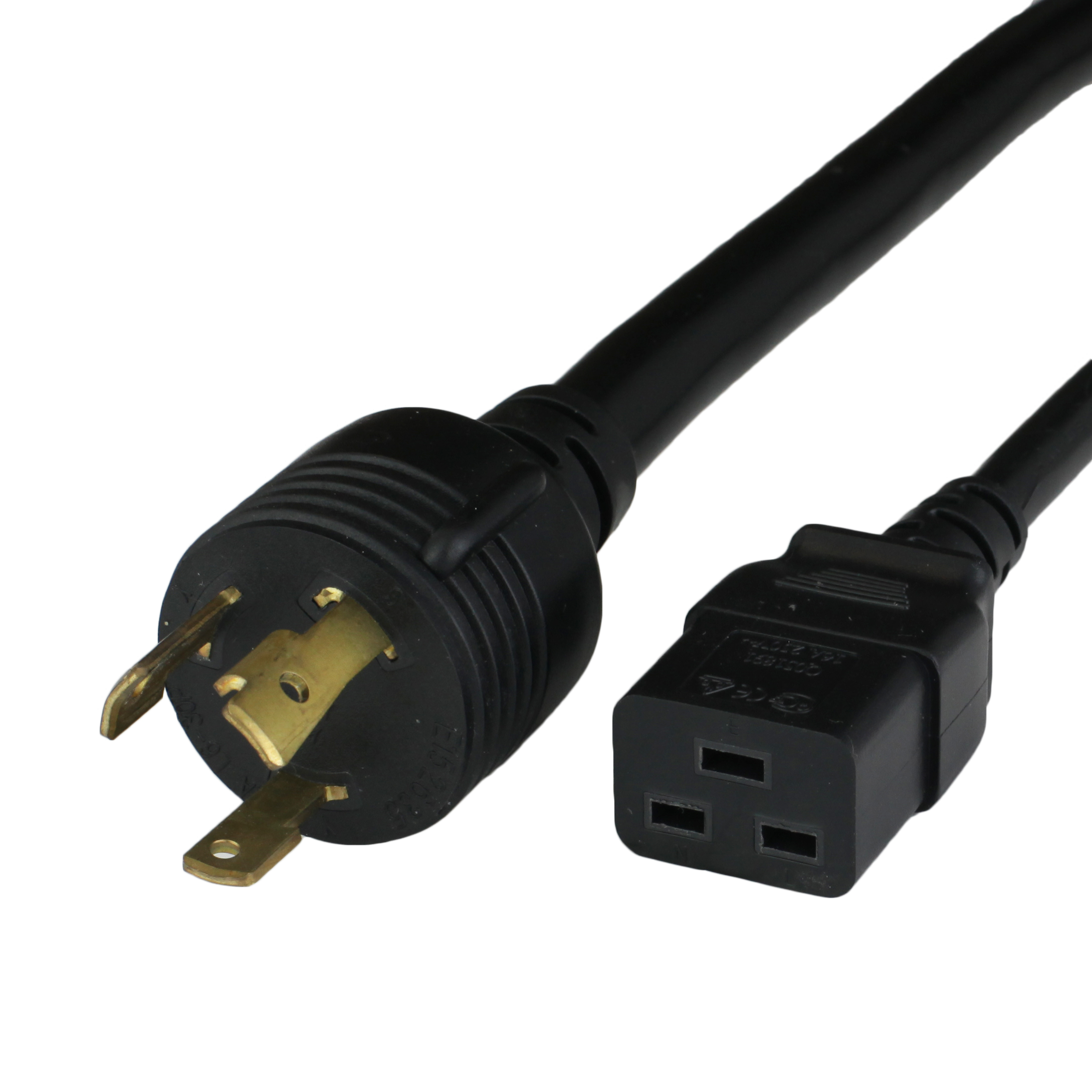

10FT 3m JAPAN JIS8303 L6-30P to IEC60320 C19 20A 250V 3.5mm2 VCTF Power Cord - BLACK

10FT 3m JAPAN JIS8303 L6-30P to IEC60320 C19 20A 250V 3.5mm2 VCTF Power Cord - BLACK

10FT 3m JAPAN JIS8303 L6-30P to IEC60320 C19 20A 250V 3.5mm2 VCTF Power Cord - BLACK

The 6-30P is a (hot-hot-ground) grounded plug that is rated up to 250V and 30A. This plug will supply either 208V or 240V based upon your electrical service, and will provide no neutral connection. This is commonly found on in-rack power distribution units where the electrical service is greater than 120V. The locking safety feature prevents this plug from disconnecting without intent



Add to Cart

View All Lengths

  • Product Information
  • Submit a Request

Product Documents

Product Weight
~1.7 lbs.
Product Volume
~102 in3
Current (Amps)
Voltage (Volts)
Connector (Female)
Plug (Male)
Country of Origin

Need help? Ask the experts!

With over 30 years of experience in the power and data industry, we have the expertise to help you find exactly what you are looking for. We're more than just an online store, we have experts in the power and data industry that can help you online, over the phone, or via email.

  • Have a request from a customer and not sure what you need? Let us quote it for you!

  • Looking for a specific product and can't find it? Let us find it for you!

  • Need a question answered quickly? Live Chat with us!

860.763.2100 or Ask us a Question

Product Warranty

At WoCo, we are committed to providing you with quality products, and that is backed up by our 1 Year product warranty. If there are any defects due to workmanship, World Cord Sets will accept liability for the purchase price of the goods and associated freight charges to provide a full refund to the customer.

Committment to Quality

Providing high quality, affordable products and solutions is a cornerstone of what we do at World Cord Sets. All products we sell have passed our internal quality assurance standards. Most products sold (unless otherwise noted) pass industry standard certifications such such as RoHS, REACH, CE, UL, cUL, and many other international standards. You can find the list of standards and approvals for a product in the specifications section.

RoHS Compliant UL Listed

Japan JIS C 8303 (L6-30P) Twist-Lock Power Cords, Class I standard, 3-blade grounded, Type B. Rated 250VAC. The plug looks the same as the North America L6-30P. The dimensional tolerances are more strict for the Japan plug. A North American plug may not fit into an outlet for Japan because of the tolerance differences. Manufactured with PSE approvals. Typical cordage uses VCTF jacket material. VCTF has a round shape and is rated to 60C. Available with IEC60320 C19 and open-ended variations.
