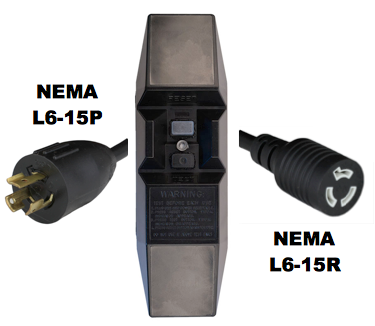

MANUAL RESET - INLINE STYLE - NEMA L6-15P/R GFCI EXTENSION CORD

MANUAL RESET - INLINE STYLE - NEMA L6-15P/R GFCI EXTENSION CORD
MANUAL RESET - INLINE STYLE - NEMA L6-15P/R GFCI EXTENSION CORD
MANUAL RESET - INLINE STYLE - NEMA L6-15P/R GFCI EXTENSION CORD
MANUAL RESET - INLINE STYLE - NEMA L6-15P/R GFCI EXTENSION CORD

MANUAL RESET - INLINE STYLE - NEMA L6-15P/R GFCI EXTENSION CORD


MANUAL RESET - INLINE STYLE - NEMA L6-15P/R GFCI EXTENSION CORD

CUSTOM LENGTHS AVAILABLE - SEND US A REQUEST

https://shop.worldcordsets.com/shop/contact-us


The NEMA L6-15P PLUG (MALE)

This is a TWIST-LOCK plug. It mates with a L6-15R (connector or receptacle). THE NEMA L6 standard specifies three wire (hot-hot-ground), three blade grounded wiring devices rated up to 250V. Standard nominal supply voltages are 240V or 208V depending on the phase configuration. The L6 Standard does not provide a neutral wire. These plugs are commonplace in Rack PDUS, Industrial Equipment, and large power tools such as welders. The '-15' in L6-15P is the designation for the amperage.

Our 120V/240V GFCI allows the GFCI to correctly function in both 120V and 240V circuits. Manual Reset Inline GFCIs, also knows as GFIs, are typically used for outdoor electrical equipment and job site applications. As the name implies, manual reset GFCI's (Ground Fault Circuit Interrupters)  must be manually reset when they are tripped. This means that when power is lost, the device will not regain power until the GFCI has been reset by the operator. This is critical when operating power tools to ensure that when power is regained to the device, it does not automatically power back on, potentially cause injury or death to the operator. Trip level is between 4-6 mA. Inline User attachable GFCI's can be used to convert an existing cord into a GFCI cord by cutting the cord to the equipment, ROJing and Stripping the ends, and wiring the GFCI onto the cord. Contact Us for custom GFCI Cord Sets made to your specifications. Typical applications include Tools, Power washers, Paint Sprayers, Extension Cords, Lawn & Garden Equipment and Outdoor Tools.

The NEMA L6-15R CONNECTOR (FEMALE)

This is a TWIST-LOCK connector. It mates with a L6-15P (plug). THE NEMA L6 standard specifies three wire (hot-hot-ground), three blade grounded wiring devices rated up to 250V. Standard nominal supply voltages are 240V or 208V depending on the phase configuration. The L6 Standard does not provide a neutral wire. These plugs are commonplace in Rack PDUS, Industrial Equipment, and large power tools such as welders. The '-15' in L6-15P is the designation for the amperage.



Order online by clicking a product below, or, call us at (860) 763-2100 or email sales@worldcordsets.com


Part Number
Reset Type
Housing Style - GFCI
Length
Current (Amps)
Voltage (Volts)
Connector (Female)
Plug (Male)
Availability
1-4
  • Manual
  • In-Line
  • 6 Feet
  • 15 Amps
  • 240V
  • NEMA L6-15R
  • NEMA L6-15P
Manual
In-Line
6 Feet
15 Amps
240V
NEMA L6-15R
NEMA L6-15P
  • Manual
  • In-Line
  • 10 Feet
  • 15 Amps
  • 240V
  • NEMA L6-15R
  • NEMA L6-15P
Manual
In-Line
10 Feet
15 Amps
240V
NEMA L6-15R
NEMA L6-15P
  • Manual
  • In-Line
  • 15 Feet
  • 15 Amps
  • 240V
  • NEMA L6-15R
  • NEMA L6-15P
Manual
In-Line
15 Feet
15 Amps
240V
NEMA L6-15R
NEMA L6-15P


  • Product Information
  • Documents & Downloads
  • Submit a Request
  • Q & A
Current (Amps)
Voltage (Volts)
Connector (Female)
Plug (Male)
Cordage
Approvals
Certifications
Country of Origin
Color
Hz
Indoor/Outdoor
Trip Level (mA)
Reset Type
Housing Style - GFCI
