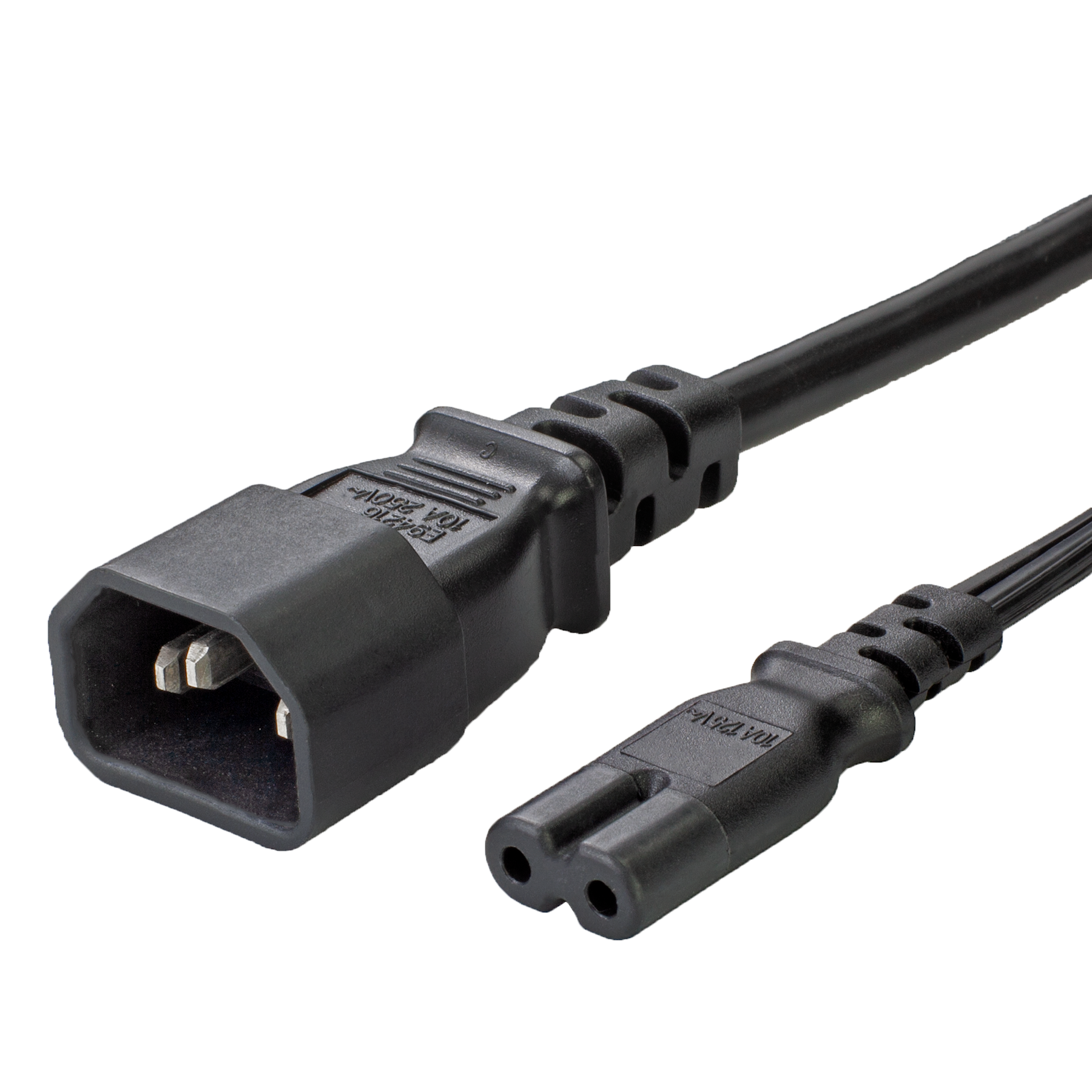

Black IEC60320 C14 to C7 Adapter Power Cords

Black IEC60320 C14 to C7 Adapter Power Cords

The IEC 60320 C14 to C7 "shotgun connector" does not have a ground pin on the connector, and is commonly used to connect a Data Rack Power Distribution Unit to a double insulated power supply transformer for a given device's power supply. We stock 6' and 12' lenghts, but other lengths are available upon request. Standard color is black, and standard wire gauge is 18AWG.

For help finding a product or for product additional product information , call us at (860) 763-2100 or email sales@worldcordsets.com


Part Number
Length
Current (Amps)
Voltage (Volts)
Connector (Female)
Plug (Male)
Availability
1+
10+
100+
  • 1 Foot
  • 2.5 Amps
  • 250 volts
  • IEC 60320 C7 Photo of IEC 60320 C7
  • IEC 60320 C14 Photo of IEC 60320 C14
1 Foot
2.5 Amps
250 volts
IEC 60320 C7
IEC 60320 C14

1+ :

10+ :

100+ :

  • 2 Feet
  • 2.5 Amps
  • 250 volts
  • IEC 60320 C7 Photo of IEC 60320 C7
  • IEC 60320 C14 Photo of IEC 60320 C14
2 Feet
2.5 Amps
250 volts
IEC 60320 C7
IEC 60320 C14

1+ :

10+ :

100+ :

  • 3 Feet
  • 2.5 Amps
  • 250 volts
  • IEC 60320 C7 Photo of IEC 60320 C7
  • IEC 60320 C14 Photo of IEC 60320 C14
3 Feet
2.5 Amps
250 volts
IEC 60320 C7
IEC 60320 C14

1+ :

10+ :

100+ :

  • 4 Feet
  • 2.5 Amps
  • 250 volts
  • IEC 60320 C7 Photo of IEC 60320 C7
  • IEC 60320 C14 Photo of IEC 60320 C14
4 Feet
2.5 Amps
250 volts
IEC 60320 C7
IEC 60320 C14

1+ :

10+ :

100+ :

  • 5 Feet
  • 2.5 Amps
  • 250 volts
  • IEC 60320 C7 Photo of IEC 60320 C7
  • IEC 60320 C14 Photo of IEC 60320 C14
5 Feet
2.5 Amps
250 volts
IEC 60320 C7
IEC 60320 C14

1+ :

10+ :

100+ :

  • 6 Feet
  • 2.5 Amps
  • 250 volts
  • IEC 60320 C7 Photo of IEC 60320 C7
  • IEC 60320 C14 Photo of IEC 60320 C14
6 Feet
2.5 Amps
250 volts
IEC 60320 C7
IEC 60320 C14

1+ :

10+ :

100+ :

  • 10 Feet
  • 2.5 Amps
  • 250 volts
  • IEC 60320 C7 Photo of IEC 60320 C7
  • IEC 60320 C14 Photo of IEC 60320 C14
10 Feet
2.5 Amps
250 volts
IEC 60320 C7
IEC 60320 C14

1+ :

10+ :

100+ :

  • 12 Feet
  • 10 Amps
  • 250 volts
  • IEC 60320 C7 Photo of IEC 60320 C7
  • IEC 60320 C14 Photo of IEC 60320 C14
12 Feet
10 Amps
250 volts
IEC 60320 C7
IEC 60320 C14

1+ :

10+ :

100+ :



Specifications of IEC 60320 C14 C7 Power Cords

Current (Amps)
Voltage (Volts)
Connector (Female)
Plug (Male)
Cordage
Certifications
Color

IEC 60320 C14 PLUG (MALE)

IEC 60320 C14 PLUG (MALE)

General Information:

The IEC 60320 C14 is a grounded 3 Wire Plug rated up to 250V and 15 Amps. The C14 plug is one of the most commonly used plugs in the data center industry, especially the Inlet version, which is found on the vast majority of Information Technology devices that are produced today. The IEC 60320 C14 is typically used with either 18awg SVT, 18awg SJT(OW), 16awg SJT(OW) or 14awg SJT(OW). The types of cordages used will change the rating of the overall cord set. This plug is very common in consumer, commercial and industrial applications which can create many different names for this plug across different industries like the computer plug, IEC plug, and more generalized names. Some also refer to this as the iec C13 plug, or the c13 power plug because of the C13 connector that it mates with.

What does the IEC 60320 C14 plug into?




IEC 60320 C13 Connector
IEC 60320 C13 Outlet
The IEC 60320 C14 plug is designed to connect to the IEC 320 C13 connector and the outlet. The connector is found on a variety of 10-15A power cords, while the outlet is located on a variety of power supplies. The outlet is most commonly found on Power Distribution Units found in office, commercial, or data center settings as well as Power Adapter bricks.

IEC 60320 C7 CONNECTOR (FEMALE)

IEC 60320 C7 CONNECTOR (FEMALE)

General Information:

The IEC 60320 C7 is an ungrounded 2 Wire connector rated up to 250V and 2.5 Amps Internationally or 125V and 10 Amps in North America. This connector is commonly used to connect power to a device that does not require a ground because of double insulating material which prevents the user of the device from being electrocuted. The C7 mates with a C8 inlet, and is commonly used for laptop power supplies, video game consoles, televisions, and other double-insulated small appliances. This connector is sometimes referred to as a "Figure-8" or "Shotgun" connector due to it's shape. A variation of the C7 exists, sometimes referred to as a C7P or C7 Polarized, although it is not documented in the IEC 60320 standard. The C7P has one square side and one circular side so the connector only mates with the inlet using the correct pin configuration.

How to tell the difference between Polarized vs. Unpolarized? What does the C7 Connect to?




IEC 60320 C7 Connector Polarized

IEC 60320 C8 Polarized Inlet
Polarized

The Polarized C7 Connector/ Polarized C8 Inlet will have a squared off side that will force polarity. In other words, if a device is not internally engineered to accept the line/ load in either orientation, the device will be wired with the polarized C8.




IEC 60320 C7 Non Polarized Connector

IEC 60320 C8 Inlet Non Polarized
Non-Polarized


The Non Polarized C7 & Non Polarized C8 Inlet can be identified by a "shotgun" look, with symmetrical sides that allow the user to plug in the connector in either orientation because of superior internal wiring.
