Black NEMA L6-30P to L6-20R Locking Adapter Cords

Black NEMA L6-30P to L6-20R Locking Adapter Cords

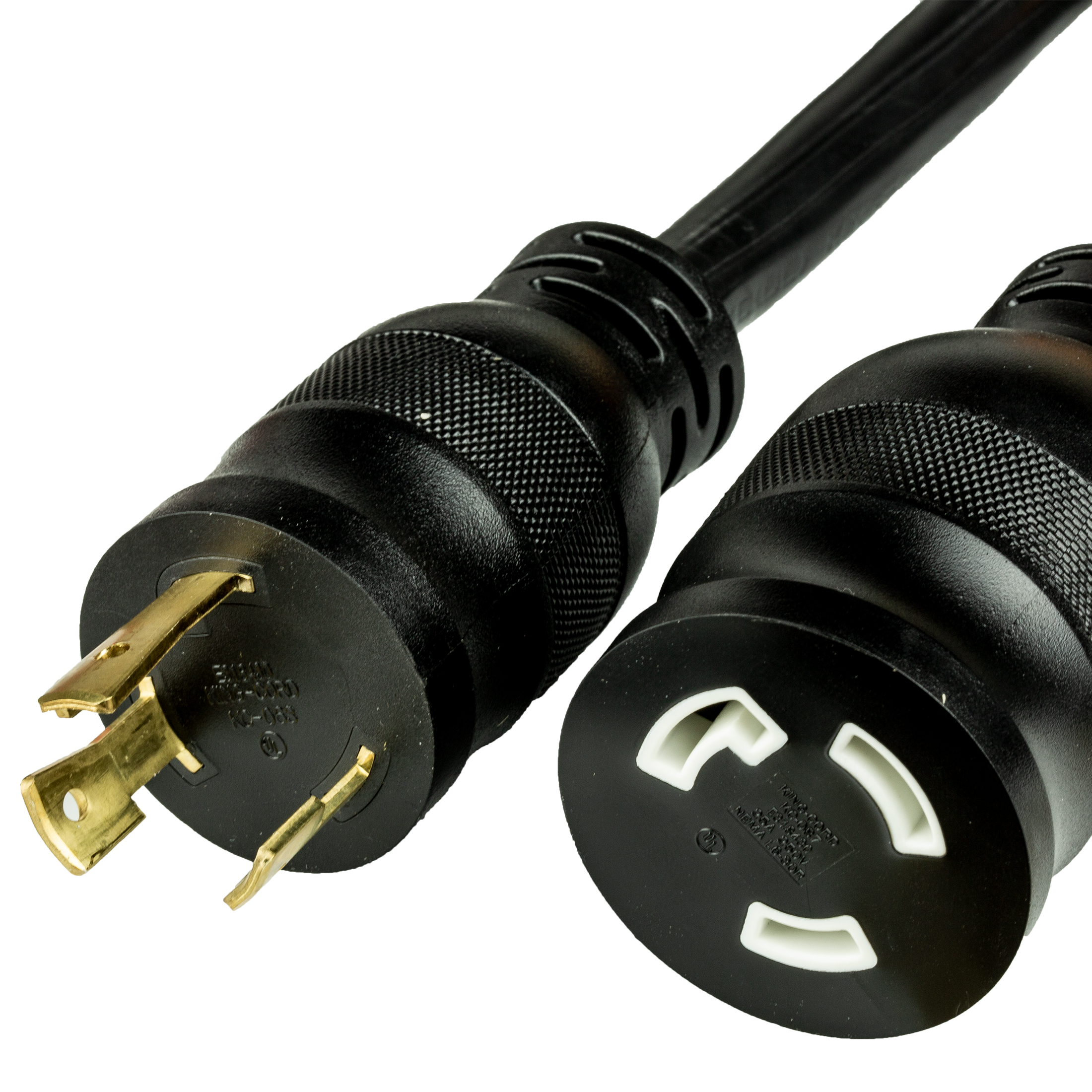

Black NEMA L6-30P to L6-20R Locking Adapter Cords are used to convert a 30A power supply to a 20A connector to be used on a plug that requires less power than the supply source.

For help finding a product or for product additional product information , call us at (860) 763-2100 or email sales@worldcordsets.com


Part Number
Length
Current (Amps)
Voltage (Volts)
Connector (Female)
Plug (Male)
Availability
1+
10+
100+
  • 1 Foot
  • 20 Amps
  • 250 volts
  • NEMA L6-20R Photo of NEMA L6-20R
  • NEMA L6-30P Photo of NEMA L6-30P
1 Foot
20 Amps
250 volts
NEMA L6-20R
NEMA L6-30P

1+ :

10+ :

100+ :



NEMA 6-30P

NEMA 6-30P

General Information:

The NEMA 6-30P is a (hot-hot-ground) grounded plug that is rated up to 250V and 30A. This plug will supply either 208V or 240V based upon your electrical service, and will provide no neutral connection. This is commonly found on in-rack power distribution units where the electrical service is greater than 120V. The locking safety feature prevents this plug from disconnecting without intent.


What does the NEMA L6-30P Plug into?





NEMA L6-30R Connector
NEMA L6-30R OutletThe NEMA L6-30P connects to both the NEMA L6-30R Connector which is commonly found on extension cords and power drops, and the outlet which is commonly found in industrial settings where 208/240V Power supply is used.

NEMA L6-20R Twist Lock

NEMA L6-20R Twist Lock

General Information:

The NEMA L6-20R Twist-Lock Connector is rated up to 250VAC and 20A. This couples with the L6-20P and locks into place, eliminating nuisance disconnection. This makes this connector common in commercial and industrial settings where there is high traffic. This connector is found on our L6-20 Extension Cord Series, which is used to extend power from an existing L6-20R wall receptacle or connector to a certain location for convenience.

What does the NEMA L6-20R Connect to?





NEMA L6-20P Plug

NEMA L6-20P Inlet
The NEMA L6-20R Locking Connector is designed to be twisted into place, mating with a NEMA L6-20P Plug or Inlet. The plug can be found on a variety of power cords used in industrial and commercial settings, and the Inlet can be found on a range of industrial equipment.
