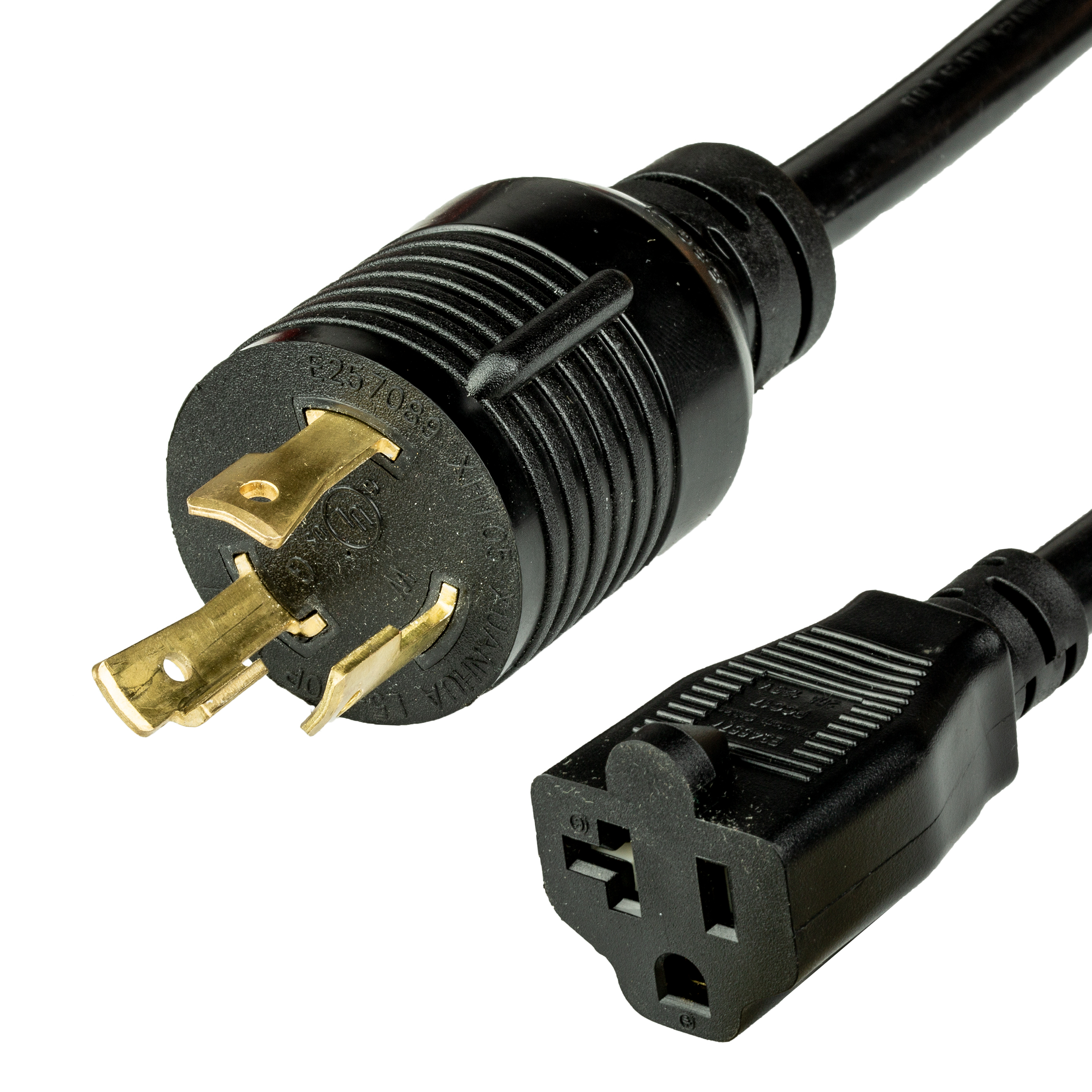

Black NEMA L5-30P to NEMA 5-20R T-Slot Power Cords

Black NEMA L5-30P to NEMA 5-20R T-Slot Power Cords

Black NEMA L5-30P to NEMA 5-20R T-Slot Power Cords are designed to convert a 30A locking outlet to a 20A non locking connector.

For help finding a product or for product additional product information , call us at (860) 763-2100 or email sales@worldcordsets.com


Part Number
Length
Current (Amps)
Voltage (Volts)
Connector (Female)
Plug (Male)
Availability
1+
10+
100+
  • 1 Foot
  • 20 Amps
  • 125 volts
  • NEMA 5-15/20R (T-Slot) Photo of NEMA 5-15/20R (T-Slot)
  • NEMA L5-30P Photo of NEMA L5-30P
1 Foot
20 Amps
125 volts
NEMA 5-15/20R (T-Slot)
NEMA L5-30P

1+ :

10+ :

100+ :



NEMA L5-30P

NEMA L5-30P

General Information:

The NEMA L5-30P is a 3 Wire grounded plug with a hot, neutral and ground pin rated up to 125V and 30A. This plug can be locked into place on the matching receptacle which prevents nuisance disconnection. This plug looks nearly identical to L5-20P but is slightly larger in pin thickness and alignment circumference. Refer to either plug,  receptacle or faceplate to find out your amp requirements.




What does the NEMA L5-30P Plug into?





NEMA L5-30R Connector
NEMA L5-30R OutletThe NEMA L5-30P Plugs into both the L5-30R Connector which is commonly found on extension cords and power drops, and the NEMA L5-30R Wall Outlet which is commonly found in Industrial and Commercial settings.

NEMA 5-20R (T-Slot)

NEMA 5-20R (T-Slot)

General Information:

The NEMA 5-20R (T-Slot) is a 3 wire grounded connector rated up to 125VAC and 20A. The 5-20R T-Slot receptacles are often used when 20A circuits are installed due to flexibility of being downward compatible with the 5-15P. The Receptacles are the defacto power supply for all of North America. This connector is found on our 5-20 Extension cord Series, used commonly for extending power from a standard NEMA 5-20R wall receptacle to a given location for convenience. It is commonly used with 12awg or 15awg depending on the application and the required amperage.

What does the NEMA 5-20R Connect to?





NEMA 5-15P Plug
NEMA 5-20P PlugThe NEMA 5-20R Connector is designed to connect to both the NEMA 5-15P and the NEMA 5-20P. The T-Slot allows both variations to be plugged in, making this connector more versatile and therefore more widely used across all industries.
