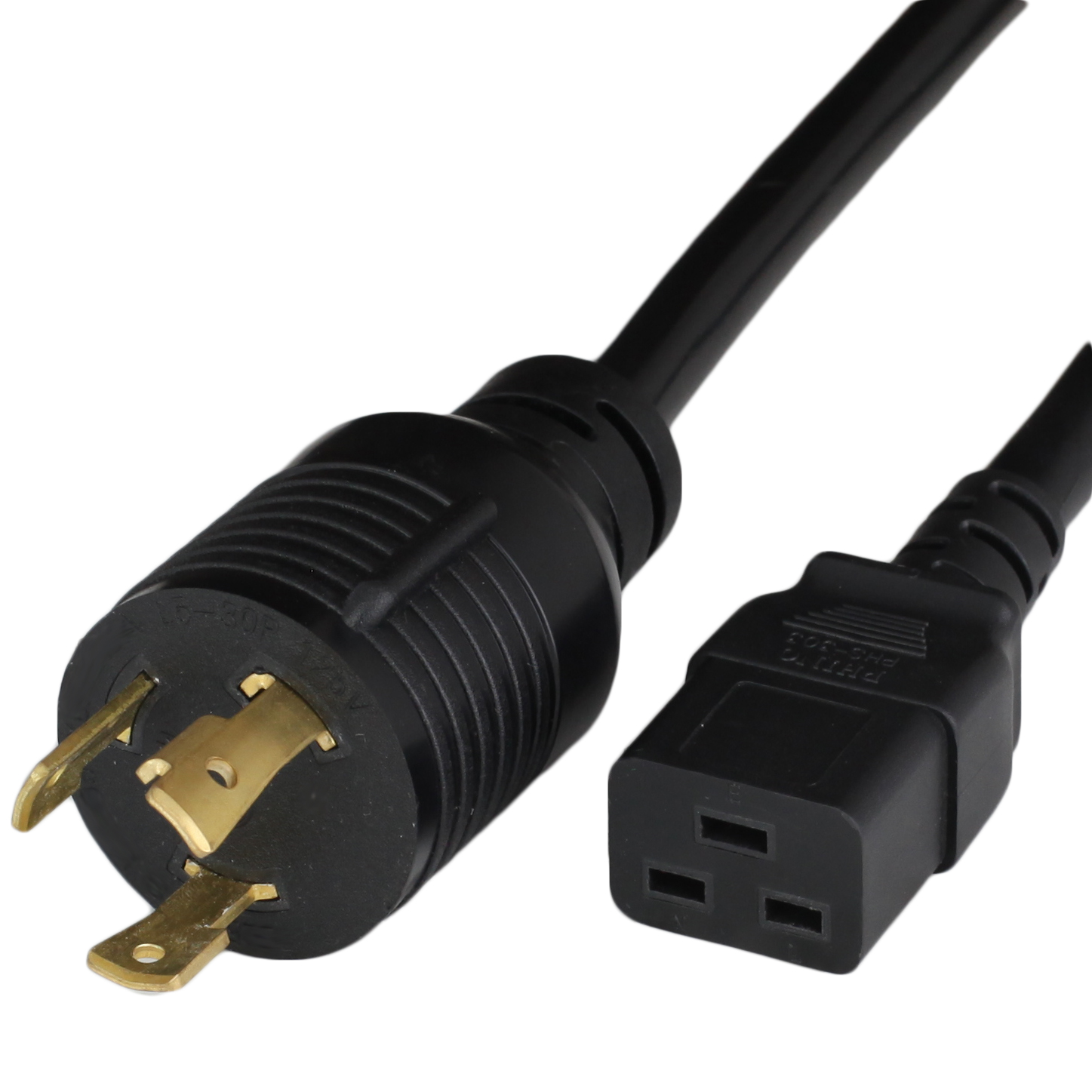

NEMA L5-30P to IEC 60320 C19 Adapter Power Cords - BLACK

NEMA L5-30P to IEC 60320 C19 Adapter Power Cords - BLACK

NEMA L5-30P to IEC60320 C19 Power Cords - BLACK

The NEMA L5-30P is a 3 Wire 3 Blade grounded plug featuring three blades arranged in a circular pattern, rated up to 125V AC and 30 Amps. The NEMA L5-30P's blades are further separated than the NEMA L5-15P and L5-20P and is used in applications that require high amperage such as industrial/professional appliances. The locking feature prevents the plug from accidental disconnecting from the outlet, preventing power loss.

The IEC 60320 C19 connector is a grounded 3-Wire connector rated up to 250V and 20 Amps. The C19 mates with a C20 inlet, and is commonly used in a jumper cable scenario in IT Installations providing power from a PDU to a server, router, switch or other computing device. IEC 60320 C19 connectors are typically used in high powered blade server chassis, large network routers, and other IT equipment that draws more power than a standard C13 can accommodate.





For help finding a product or for product additional product information , call us at (860) 763-2100 or email sales@worldcordsets.com


Part Number
Length
Current (Amps)
Voltage (Volts)
Connector (Female)
Plug (Male)
Availability
1+
10+
100+
  • 8 Feet
  • 20 Amps
  • 125 volts
  • IEC 60320 C19 Photo of IEC 60320 C19
  • NEMA L5-30P Photo of NEMA L5-30P
8 Feet
20 Amps
125 volts
IEC 60320 C19
NEMA L5-30P

1+ :

10+ :

100+ :

  • 15 Feet
  • 20 Amps
  • 125 volts
  • IEC 60320 C19 Photo of IEC 60320 C19
  • NEMA L5-30P Photo of NEMA L5-30P
15 Feet
20 Amps
125 volts
IEC 60320 C19
NEMA L5-30P

1+ :

10+ :

100+ :



Specifications of 30A 125V NEMA L5-30P Twist-Lock Power Cords | World Cord Sets

Current (Amps)
Voltage (Volts)
Connector (Female)
Plug (Male)
Cordage
Approvals
Certifications
Country of Origin
Color

NEMA L5-30P

NEMA L5-30P

General Information:

The NEMA L5-30P is a 3 Wire grounded plug with a hot, neutral and ground pin rated up to 125V and 30A. This plug can be locked into place on the matching receptacle which prevents nuisance disconnection. This plug looks nearly identical to L5-20P but is slightly larger in pin thickness and alignment circumference. Refer to either plug,  receptacle or faceplate to find out your amp requirements.




What does the NEMA L5-30P Plug into?





NEMA L5-30R Connector
NEMA L5-30R OutletThe NEMA L5-30P Plugs into both the L5-30R Connector which is commonly found on extension cords and power drops, and the NEMA L5-30R Wall Outlet which is commonly found in Industrial and Commercial settings.

IEC 60320 C19 CONNECTOR (FEMALE)

IEC 60320 C19 CONNECTOR (FEMALE)

General Information:

The IEC 60320 C19 is a grounded 3 Wire connector rated up to 250V and 20 Amps. The C19 can be found on a variety of power cords, including NEMA to 320 Adapter cords, and International Plug types to IEC 320 connectors, but the most common application is the IEC 320 C20 to C19 power cord which is a a standard extension cord used to power high powered IT Equipment. The C19 is typically used in high powered blade server chassis, large network routers, and other IT equipment that draws more power than a standard C13 can accommodate.

What does the IEC 60320 C19 Connect to?





IEC 60320 C20 Plug
IEC 60320 C20 InletThe IEC 60320 type C19 connector is designed to connect to the IEC 320 C20 plug and Inlet. THE C20 Plug is commonly found on power cords used in the data center industry. The C20 Inlet can be found on a variety of high powered IT Equipment ranging from switches to Un-Interrupted Power Supply systems.

White Label Shipping

White Label Shipping

Are you a reseller looking for Blind or White Label Drop Shipping? We offer both! During checkout simply select "Blind Shipping", then either upload your own packing slip, or, upload your logo and part numbers into ours. You will receive automated tracking emails as soon as your order has been packed so you can keep your customer up to date in realtime. Blind drop shipping has never been easier. Contact us today!

Manufactured Under ISO: 9001

Manufactured Under ISO: 9001

Our power cord sets are manufactured under an ISO 9001 quality management system to ensure that you get the same outstanding quality with on every order you place.
All of our NorthAmerican use Power Cord Sets are UL listed under E503529. This means that you can be sure that all of our power cord sets are of the highest quality and are certified for use in the United States.

UL Listed : E503526

UL Listed : E503526

World Cord Sets strives to deliver the best quality products for the lowest cost, to show our commitment to quality and our understanding of customers expectation for consistence of quality we obtained the UL certification. All of our North American use Power Cord Sets are UL listed under E503529. This means that you can be sure that all of our power cord sets are of the highest quality and are certified for use in the United States.

Lifetime Warranty

Lifetime Warranty

Why do we offer a lifetime warranty?

We offer a lifetime warranty because we know that it won't have to be used. Our products are manufactured using only the highest quality components, and, undergo rigorous quality assurance inspections and testing to ensure all of our products meet our exacting standards. Our lifetime warranty gives you peace of mind that your purchase is 100% guaranteed to work.


What does the warranty cover?

All cords, cables, patch panels, and adapters sold on this website in original unmodified condition are covered under this warranty. Warranty does not cover damage caused by misuse.


How does the warranty work?

To use the lifetime warranty, simply request an RMA and send your defective material back to us and we will either repair or replace the goods and return them back to you in working condition.

Documents & Drawings
