North America/Europe 16/18A 250V IEC60309 316/320P6S to OPEN Power Cords

North America/Europe 16/18A 250V IEC60309 316/320P6S to OPEN Power Cords

North America/Europe 16/A 250V IEC60309 316/320P6S to OPEN Power Cords. IEC 60309 includes “plugs, socket-outlets and couplers for industrial purposes”. The IEC 60309 standard puts an emphasis on safety through a unique arrangement of pins and earth/ground to ensure that only compatible devices are able to mate. The pin and sleeve design of this standard provides some degree of weatherproofing, indicated by its IP (Ingress Protection) marking. The plugs used in this series are IP44 which provide splash-proof protection. Overall, this standard is common in open-air conditions where high power draw is required and protection from individuals, dust, water and chemicals is desired.

For help finding a product or for product additional product information , call us at (860) 763-2100 or email sales@worldcordsets.com


Part Number
Length
Current (Amps)
Voltage (Volts)
Connector (Female)
Plug (Male)
Availability
1+
10+
100+
  • 1.0 meter
  • 16 Amps (Euro) , 18 Amps (North America)
  • 250 volts
  • Open ROJ 2" Strip all 1/4"
  • IEC 60309 320P6 (20/16A 250/230VAC)
1.0 meter
16 Amps (Euro) , 18 Amps (North America)
250 volts
Open ROJ 2" Strip all 1/4"
IEC 60309 320P6 (20/16A 250/230VAC)

1+ :

10+ :

100+ :

  • 1.5 meters
  • 16 Amps (Euro) , 18 Amps (North America)
  • 250 volts
  • Open ROJ 2" Strip all 1/4"
  • IEC 60309 320P6 (20/16A 250/230VAC)
1.5 meters
16 Amps (Euro) , 18 Amps (North America)
250 volts
Open ROJ 2" Strip all 1/4"
IEC 60309 320P6 (20/16A 250/230VAC)

1+ :

10+ :

100+ :

  • 2.0 meters
  • 16 Amps (Euro) , 18 Amps (North America)
  • 250 volts
  • Open ROJ 2" Strip all 1/4"
  • IEC 60309 320P6 (20/16A 250/230VAC)
2.0 meters
16 Amps (Euro) , 18 Amps (North America)
250 volts
Open ROJ 2" Strip all 1/4"
IEC 60309 320P6 (20/16A 250/230VAC)

1+ :

10+ :

100+ :

  • 2.5 meters
  • 16 Amps (Euro) , 18 Amps (North America)
  • 250 volts
  • Open ROJ 2" Strip all 1/4"
  • IEC 60309 320P6 (20/16A 250/230VAC)
2.5 meters
16 Amps (Euro) , 18 Amps (North America)
250 volts
Open ROJ 2" Strip all 1/4"
IEC 60309 320P6 (20/16A 250/230VAC)

1+ :

10+ :

100+ :

  • 4.0 meters
  • 16 Amps (Euro) , 18 Amps (North America)
  • 250 volts
  • Open ROJ 2" Strip all 1/4"
  • IEC 60309 320P6 (20/16A 250/230VAC)
4.0 meters
16 Amps (Euro) , 18 Amps (North America)
250 volts
Open ROJ 2" Strip all 1/4"
IEC 60309 320P6 (20/16A 250/230VAC)

1+ :

10+ :

100+ :

  • 5.0 meters
  • 16 Amps (Euro) , 18 Amps (North America)
  • 250 volts
  • Open ROJ 2" Strip all 1/4"
  • IEC 60309 320P6 (20/16A 250/230VAC)
5.0 meters
16 Amps (Euro) , 18 Amps (North America)
250 volts
Open ROJ 2" Strip all 1/4"
IEC 60309 320P6 (20/16A 250/230VAC)

1+ :

10+ :

100+ :



Specifications of IEC 60309 to OPEN (WHIPS PIGTAILS) Power Cords

Current (Amps)
,
Voltage (Volts)
Connector (Female)
Plug (Male)
Cordage
Approvals
, ,
Certifications
Country of Origin
Color
,

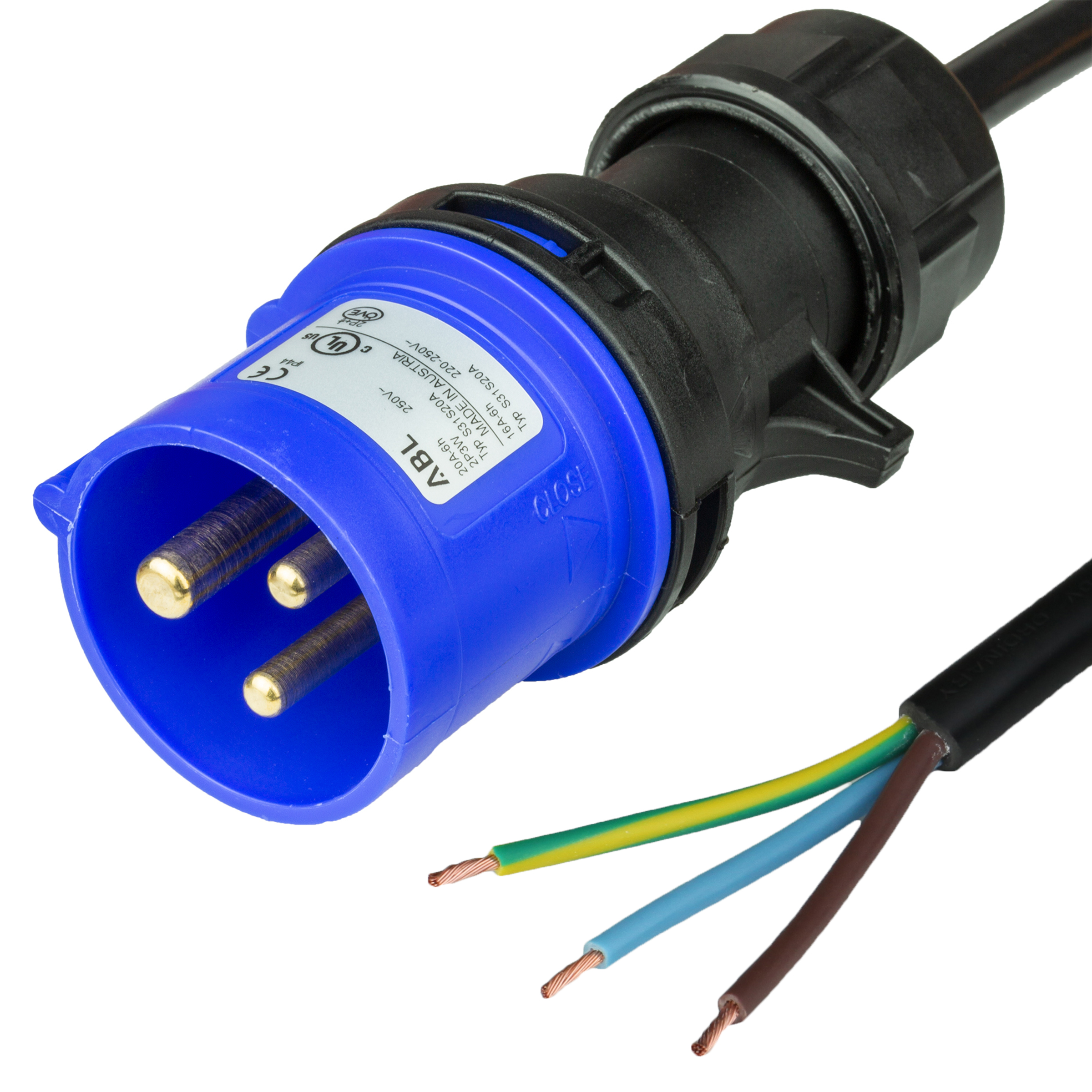

IEC 60309 320P6 IP44 Splashproof Plug

IEC 60309 320P6 IP44 Splashproof Plug

General Information:

IEC 60309 includes “plugs, socket-outlets and couplers for industrial purposes”. The IEC 60309 standard puts an emphasis on safety through a unique arrangement of pins and earth/ground to ensure that only compatible devices are able to mate. The pin and sleeve design of this standard provides some degree of weatherproofing, indicated by its IP (Ingress Protection) marking.

IP44 is known as the "Splashproof" Rating, which breaks down to sealing against solids no smaller than 1.0mm and spraying water at the connection from any angle. Overall, this standard is common in open-air conditions where high power draw is required and protection from individuals, dust, water and chemicals is desired. The IP code, as defined by standard IEC 60529, classifies the degrees of protection provided against the intrusion of solids and liquids.

What does the IEC 60309 320P6 IP44 Plug into?




IEC 60309 320C6 IP44 ConnectorThe IEC 60309 320P6 IP44 Splashproof plug is designed to plug into its matching IEC 60309 320C6 IP44 Blue Connector. This can be found on power cords, power drops, and temporary power supply boxes in industrial, commercial and construction settings.

Open Ended (Whips, Pigtails, ROJ Strip)

Open Ended (Whips, Pigtails, ROJ Strip)

General Information:

The open end of a power supply cord is hard wired to another device, providing power either to our from that device. Unless otherwise noted, our power supply cords come standard with a 2" ROJ (Remove Outer Jacket) and a 1/4" Strip. The ROJ length determines the length of the individual conductors, and the Strip length determines the amount of copper exposed on the end of each conductor. If you require a custom ROJ or Strip length, please don't hesitate to reach out to us.




Open Ended North American Color Code
NACC

Open Ended International Color Code
ICC


International Color Code(ICC) vs. North American Color Code(NACC)


For the majority of our customers, the color code used for the cordage is negligible. However, for OEM customers, or customers dealing with government installations or projects that have highly specified cords the color code used will be important to establish. Our standard color code for our Cut/ Remove of Outer Jacket/ Strip Conductor Job is North American Color Code (NACC).



Ground ColorNeutral ColorLine/ Hot Color

International Color Code (ICC)
Green & Yellow
Blue
Brown


North American Color Code (NACC)GreenWhite
Black


Documents & Drawings
