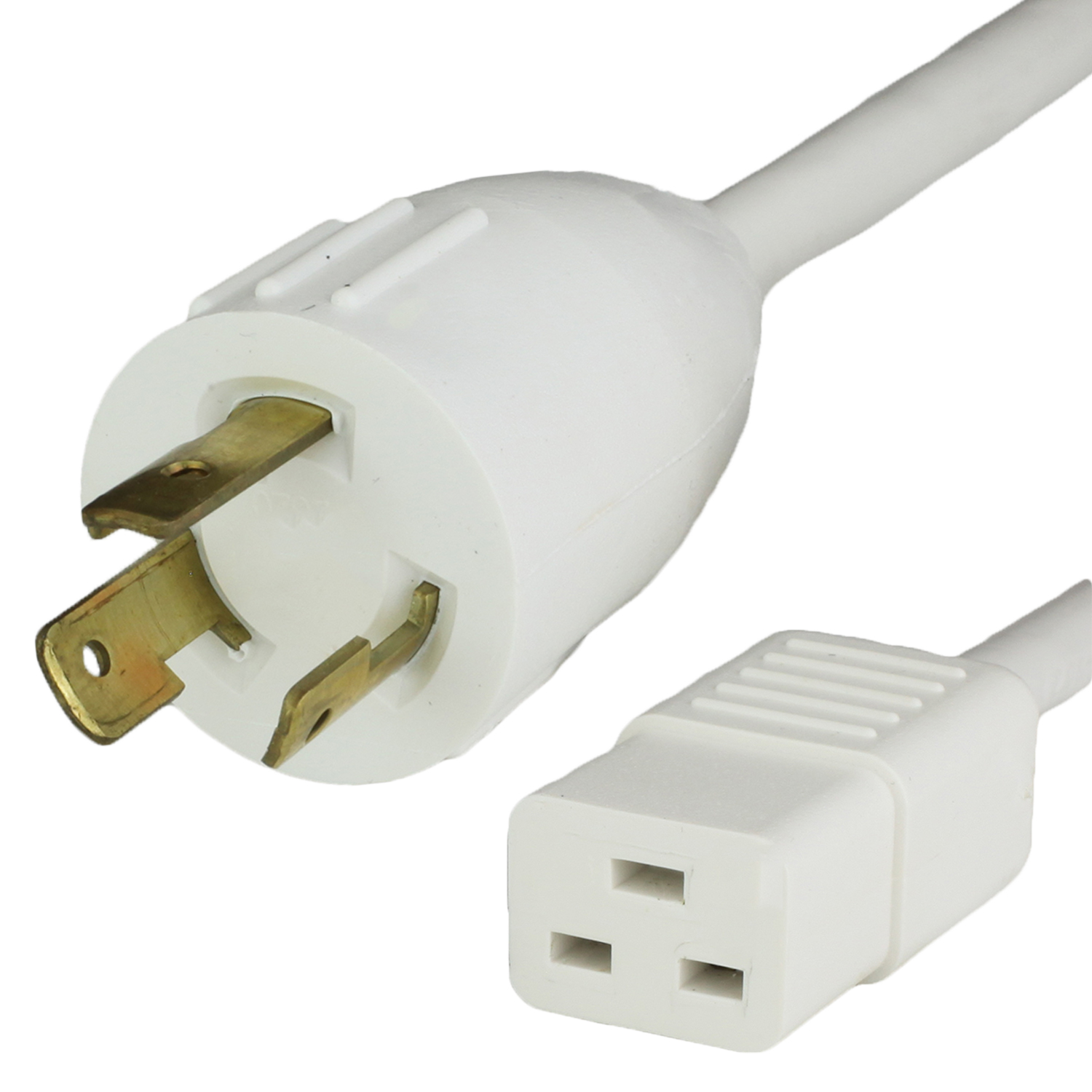

Specifications of 20A NEMA L6-20P to IEC60320 C19 Power Cords
The NEMA L6-20P is a 3 wire grounded plug with a hot, hot and ground pin rated up to 250V and 20A. This plug can be locked into place on the matching receptacle which prevents nuisance disconnection. This plug is commonly found on in-rack power distribution units (PDU) where standard electrical service exceeds 125V, also in industrial settings to supply power to equipment or power tools.
What does the NEMA L6-20P Plug into?
The NEMA L6-20P connects to both the NEMA L6-20R Connector which is commonly found on extension cords and power drops, and the outlet which is commonly found in industrial settings where 208/240V Power supply is used.
IEC 60320 C19 CONNECTOR (FEMALE)
The IEC 60320 C19 is a grounded 3 Wire connector rated up to 250V and 20 Amps. The C19 can be found on a variety of power cords, including NEMA to 320 Adapter cords, and International Plug types to IEC 320 connectors, but the most common application is the IEC 320 C20 to C19 power cord which is a a standard extension cord used to power high powered IT Equipment. The C19 is typically used in high powered blade server chassis, large network routers, and other IT equipment that draws more power than a standard C13 can accommodate.
What does the IEC 60320 C19 Connect to?
The IEC 60320 type C19 connector is designed to connect to the IEC 320 C20 plug and Inlet. THE C20 Plug is commonly found on power cords used in the data center industry. The C20 Inlet can be found on a variety of high powered IT Equipment ranging from switches to Un-Interrupted Power Supply systems.
