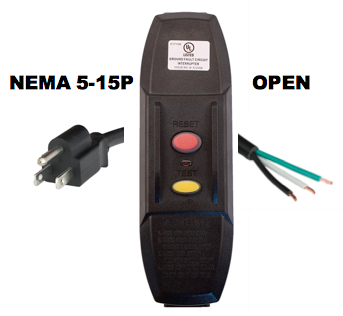

AUTOMATIC RESET - INLINE Style - NEMA 5-15P to OPEN GFCI Power Supply Cord

AUTOMATIC RESET - INLINE Style - NEMA 5-15P to OPEN GFCI Power Supply Cord

AUTOMATIC RESET GFCI: Do NOT use with power tools (saws, drills, meat cutters, mixers, or similar) because of the automatic reset function. It should be used in applications that involve refrigerators/freezers or similar. Automatically resets to ON when plugged in or after power interruption. Power Indicator lamp goes OFF if GFCI trips, power is interrupted or GFCI is unplugged. Both automatic and manual reset GFCI types must be manually reset after a ground fault occurrence.


The NEMA 5-15P is a 3 Wire grounded plug featuring two blades (can be equal or unequal widths due to the ground pin forcing polarity) and one ground pin rated up to 125V AC and 15 Amps. The NEMA 5-15P is your standard household plug used for to connect small appliances such as TV's, Microwaves, hairdryers, etc to a wall outlet. The NEMA 5-15P is compatible with a Nema 5-20R T-Slot outlet, which is commonly found in new home installations.

For help finding a product or for product additional product information , call us at (860) 763-2100 or email sales@worldcordsets.com


Click to Enlarge
Part Number
Reset Type
Housing Style - GFCI
Length
Current (Amps)
Voltage (Volts)
Connector (Female)
Plug (Male)
Availability
1+
10+
100+
  • Automatic
  • In-Line
  • 8 Feet
  • 10 Amps
  • 120V
  • Open Ended (Whips, Pigtails) Photo of Open Ended (Whips, Pigtails)
  • NEMA 5-15P Photo of NEMA 5-15P
Automatic
In-Line
8 Feet
10 Amps
120V
Open Ended (Whips, Pigtails)
NEMA 5-15P

1+ :

10+ :

100+ :



Documents & Drawings
